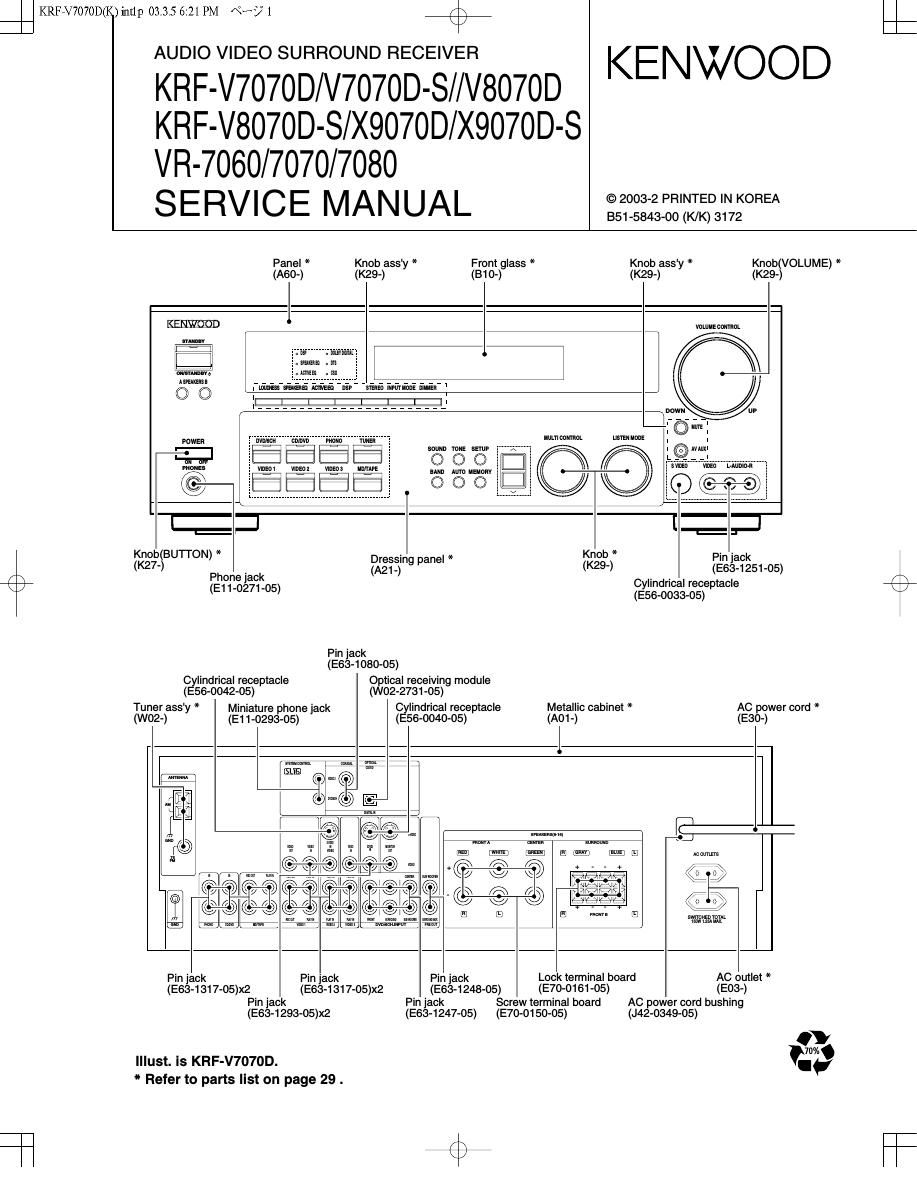

Kenwood KRFX 9070 D Service Manual

Page 2

KRFEV7070D(K)i|1t1p 03.3.5 6:21 PM NE? 2

Accessofies

4%
KRF-V7070D/V8070D/X9070D/VR-7060/7070/7080

ACCESSORIES / CAUTIONS

FM indoor antenna (1)
(T90-0877-05)

AM loop antenna (1)
(Tee-oess-os)

RF remote antenna (1)
Refer to the table on this page below.
/I:n?o;'o'a\a.:,uonoaa

o a. a a
30 oI> duo L, was onaaa
\Fofl flu/nag

Batteries (RB/AA) (2)

onooo

There is a different shape of remote control in every area.

REMOTE CONTROL vs MODEL

MODEL ABBRL PARTS # BATTERY COVER
KRF-V707OD E7 7 A70-1623-05 A09-1274-O8
KRF-V707OD-S E1 A70-1623-05 A09-1274-08
vn-7oso K6 A70-1622-05 A09-1274»08
vn-7oso P6 A70-1622-05 A09-1274-08
KRF-V8070D E8 8 A70-1623-05 A09-1274-08
KRF-V807OD-S E2 A70-1623-05 A09-1274-08
KRF-X9070D Y1 A70-1619-05 A09-1275-08
KRF-X9070D E9 A70-1621-05 A09-1274-O8
KRF-X907OD-S E3 A70-1621-05 A09-1274-O8
vn-7o7o K7 9 A70-1620-05 A09-1274-08
vn-7o7o P7 A70-1620-05 A09-1274-08
vn-7oao K8 A70-1619-05 A09-1275-08
vn-7oao P8 A70-1619-05 A09-1275-08
Caufions

Resetting the [Microcomputer

The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) ifthe power cord is unplugged while
the power is ON, or due to some other external factor. If this
happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating
condition.

I Please note that resetting the microcomputerwill clearthe contents
ofthe memory and returns the unit to the state it was in when it left
the factory.

Unplug the power cord from the wall outlet, then plug it
back in while holding down the POWER ON/STANDBYL)
key.

Memo/y back up function

Please note that the following items will be deleted from the units
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.

I Power mode.
I Input selector settings.
I Picture output.

I Bass peak level.

I Input mode setting.

I Midnight mode setting.
I Speaker ONIOFF. I PRO LOGICII mode setting.
I Volume level. I CS || mode setting.

I BASS, TREBLE, INPUT level. I Broadcast band.

I TONE ONIOFF. I Frequency setting.

I LOUDNESS ONIOFF. I Preset stations.

I Dimmer level. I Tuning mode.

I MD/TAPE settings. I THX mode.

I Listen mode setting. I DSP mode.

I Speaker settings. I ACTIVE EQ mode.

I SW RE-MIX ONIOFF. I SPEAKER EQ mode.

I Distance setting.

Page 19

63

* New Parts
Parts thhout Parts N01 are not supphed.

Les amcIes non ITIBI'KIDnneS dams Ie Parts No. ne sun: pas fourms, o
Texle ohne Parts N01 werden mcm gehefert.
Add- New - - Desti- Re-
Ref, No 55 IFINSI Parts N01 I Description I nation marks
MISCELEOVNEOUS
601 1C A01-3840411 METALLIC CABINET K6P6
601 1C A01-3842-01 METALLIC CABINET E7E8
601 1C A01-3842411 METALLIC CABINET E9K8P8
601 1C A01 {3842-01 METALLIC CABINET K7P7Y1
601 1C A01-3843411 METALLIC CABINET E1 E2E3
602 1C 4 A09-1274-OB BATTERY COVER E3
602 1C 4 A09-1274-08 BATTERY COVER K7P7E9
602 1C 4 A09-1274-OB BATTERY COVER 78
602 1C 4 A09-1275-OB BATTERY COVER Y1 K8P8
604 2C A21-398242 DRESSING PANEL E7E8
604 2C A21 {3982-12 DRESSING PANEL E9K8P8
604 2C A21-398242 DRESSING PANEL K7P7Y1
604 2C A21-398342 DRESSING PANEL E1 E2E3
605 2D A22-1873-01 SUB PANEL ASSY E7E8
605 2D A22-1873-01 SUB PAN EL ASSV E9K8P8
605 2D A22-1873-01 SUB PANEL ASSV K7P7Y1
605 2D A22-1874-01 SUB PANEL ASSY E1 E2E3
606 3B A60-2169-01 PANEL K6P6
606 2C 4 A60-2179-12 PANEL Y1 E9
606 2C A60-2180-12 PAN EL E3
606 2C 4 A60-2181-12 PANEL E7E8
606 2C A60-2182-12 PANEL E1 E2
606 2C 4 A60-2317-02 PAN EL K7P7K8
606 2C 4 A60-2317-02 PAN EL 8
607 1C 4 A70-1619-05 REMOTE CONTROLLER ASSY Y1K8P8
607 1C 4 A70-1620-05 REMOTE CONTROLLER ASSY K7P7
607 1C 4 A70-1621-05 REMOTE CONTROLLER ASSY E9E3
607 1C '4 A70-1622-05 REMOTE CONTROLLER ASSY K6P6
607 1C 4 A70-1623-05 REMOTE CONTROLLER ASSY E8E2
607 1C 4 A70-1623-05 REMOTE CONTROLLER ASSY 7
- 4 B60-5341-00 INSTRUCTION MANUAL(EN) Y1 K8P8
- 4 360-5342-00 INSTRUCTION MANUAL(FR) P8
- 4 B60-5343-00 INSTRUCTION MANUAL(EN) K7P7
- 4 B60-5344-00 INSTRUCTION MANUAL(FR) P7
- 4 360-5345-00 INSTRUCTION MANUAL(E/S/F/G/l) E9E3
- 4 360-5346-00 INSTRUCTION MANUAL(EN) K6P6
- 4 B60-5347-00 INSTRUCTION MANUAL(FR) P6
- 4 360-5348-00 INSTRUCTION MANUAL(E/S/F/G/l) E8E2
- 4 B60-5349-00 INSTRUCTION MANUAL(E/S/F/G/l) 7
611 3A 307-2596-12 ESCUTCHEON K6P6
612 2D 307-2606-03 ESCUTCH EON E7E8
612 2D 307-2606-03 ESCUTCH EON E9K8P8
612 3B 307-2606-03 ESCUTCHEON K6P6
612 2D B07-2606-03 ESCUTCH EON K7P7Y1
612 2D 307-2607-03 ESCUTCH EON E1 E2E3
613 2C 307-2608-03 ESCUTCH EON E7E8
613 2C B07-2608-03 ESCUTCH EON E9K8P8
613 3A 307-2608-03 ESCUTCH EON K6P6
613 2C B07-2603-03 ESCUTCH EON K7P7Y1
613 2C B07-2609-03 ESCUTCH EON E1 E2E3
614 2D 307-2619-13 ESCUTCHEON E7E8
614 2D B07-2619-13 ESCUTCHEON E9K8P8
614 2D B07-2619-13 ESCUTCHEON K7P7Y1
L:Scandlnav!a K:USA PICanada RIMexmu CIChma I:MaIavsIa
V:PXIFarEaSI,HawaH) T:EngIand EIEurupe GIGelmany VIChInaISnangnaI)
V : AAFESIEumps) X : Ausnaha 0: Russia H 2 Knlea M 2 Other Areas A Indrcales safety CHIICEI cumponents.

%

4 New Parts
Pans wnhout Pans No. are not supphed.

Les amcles non mennonnes dens Ie Parts No. ne sont pas fourms, 9
Tene ohne Parts No. werden mcm gehefert.
Add- New - - Desli- Re-
Ref. No less ""5 Parts N01 Descriptlnn nation marks
614 2D 307-2620-13 ESCUTCHEON E1 E2E3
615 2C 4 B10-3925-02 FRONT GLASS K7P7
615 2C 4 B10-3926-02 FRONT GLASS E9E3
615 2A 4 310-3927-02 FRONT GLASS K6P6
615 2C 4 B10-392B-02 FRONT GLASS E8E2
615 2C 4 B10-3930-02 FRONT GLASS 7
615 2C 4 310-3933-02 FRONT GLASS K8P8
615 2C 4 310-3938-02 FRONT GLASS Y1
616 2C 4 B11-1571-03 COLOR FILTER 9
616 2A 4 B11-1572-03 COLOR FILTER 78
617 2D B12-0440-04 INDICATOR E8E2
617 2D B12-0440-04 INDICATOR 79
617 2A B12-0441-04 INDICATOR K6P6
618 3A,2D B12-0442-04 INDICATOR
620 2A,2C 343-0314-04 KENWOOD BADGE
A: 625 1E E30-2941-05 AC POWER CORD K6K7K8
A 625 1E E30-2941-05 AC POWER CORD P6P7P8
A 625 1E E30-2942-05 AC POWER CORD E8E2
A 625 1E E30-2942-05 AC POWER CORD E9E3
A 625 1E E30-2942-05 AC POWER CORD 7
A 625 1E 4 E30-7289-05 AC POWER CORD Y1
626 1E,2E E35-2841-05 FLAT CABLE 9
628 1D,2E E35-3216-05 FLAT CABLE
637 2A,2E G11-2885-04 CUSHION
638 1D G11-2886-04 CUSHION
639 2C G11-2887-04 CUSHION E8E2
639 2C G11-2887-04 CUSHION 79
- 4 H10-7888-02 POLYSTYRENE FOAMED FIXTURE
- 4 H10-7890-02 POLYSTYRENE FOAMED FIXTURE
- H25-0232-04 PROTECTION BAG (235x350x0.03)
- H25-0391-04 PROTECTION BAG
- H30-0623-04 ADHESIVE DOUBLE-COATED TAPE 9
- 4 H50-4721-04 ITEM CARTON CASE K7P7
- 4 H50-4722-04 ITEM CARTON CASE E9
- 4 H50-4723-04 ITEM CARTON CASE E3
- 4 H50-4724-04 ITEM CARTON CASE K6P6
- 4 H50-4725-04 ITEM CARTON CASE E8
- 4 H50-4726-04 ITEM CARTON CASE E2
- 4 H50-4728-04 ITEM CARTON CASE E7
- 4 H50-4729-04 ITEM CARTON CASE E1
- 4 H50-4777-04 ITEM CARTON CASE K8P8
- 4 H50-4779-04 ITEM CARTON CASE Y1
- J61 -0307-05 WIRE BAND
643 2E J02-1532-03 FOOT
644 2E J19-3751-04 UNIT HOLDER
A 654 1E J42-0349-05 POWER CORD BUSHING
658 2C K27-2384-04 KNOB (BUTTON) E7E8
658 2C K27-2384-04 KNOB (BUTTON) Y1 E9
658 2C K27-2481-04 KNOB (BUTTON) E1 E2E3
659 3A K29-8103-04 KNOB K6P6
659 2D 4 K29-8267-04 KNOB K7P7Y1
659 2D 4 K29-8267-04 KNOB K8P8
659 2D 4 K29-8268-04 KNOB E1 E2E3
659 2D 4 K29-8269-04 KNOB E7E8E9
L: Scandinavia K: USA P 2 Canada R 2 Mexmu C 2 Chma I : MaIavsIa

V : PXIFar East,HawaH) T : Engiand
Y : AAFESIEumpsI X : Ausnaha

E : Eumpe
Q : Russxa

evmany
H 2 Korea

v : ChmaIShanghaI)
M : Omar Areas

A Indicates safety cnucal cumpunems.
