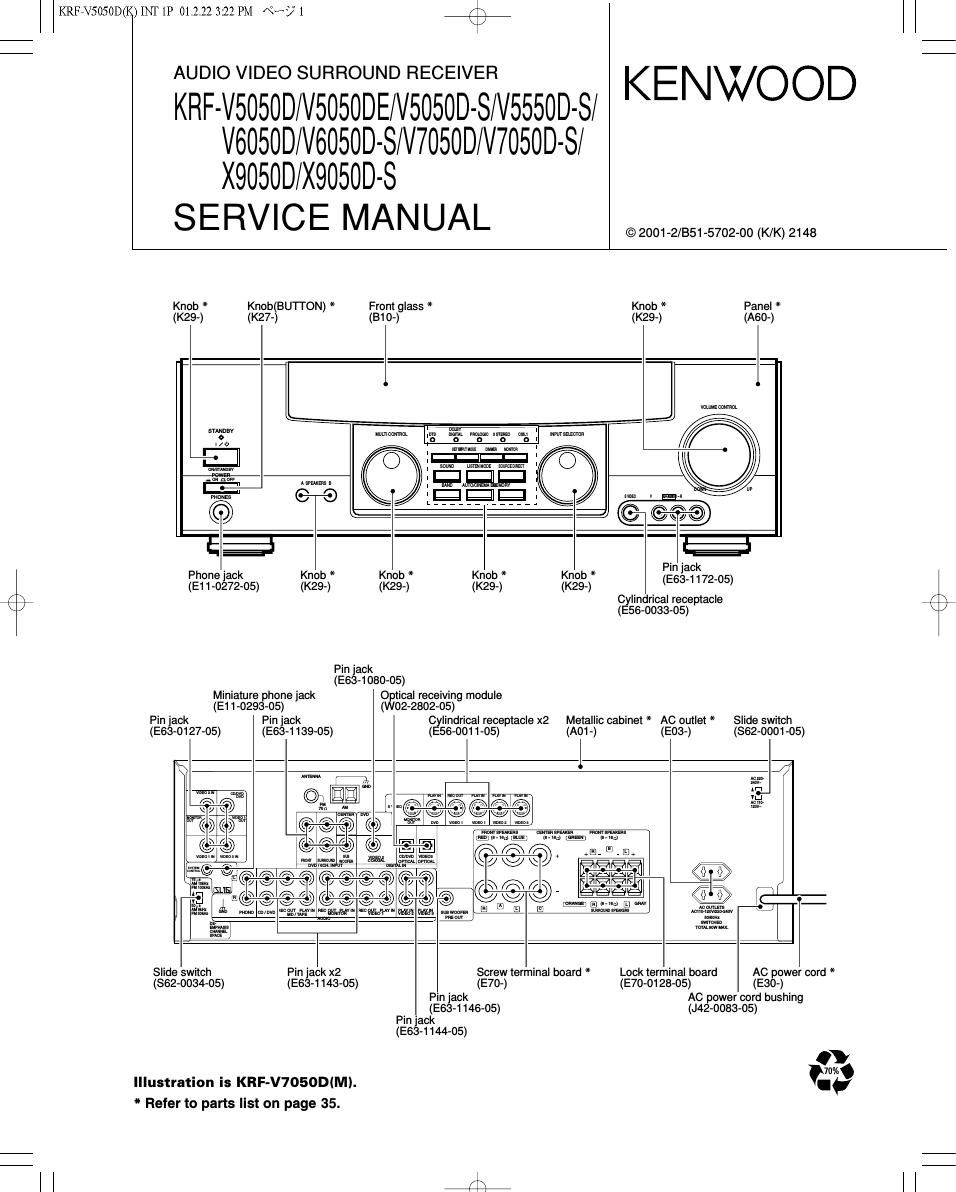

Kenwood KRFX 9050 D Service Manual
This is the 38 pages manual for Kenwood KRFX 9050 D Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRFX 9050 D Service Manual (Ocr-read)
Page 2
r\
KRF7V5050D(K)INT1P 01.2.23 9:33 AM N? 2
Contents
CONTENTS / ACCESSORIES ..............
WIRING DIAGRAM....
PC BOARD ......... ..
SCHEMATIC DIAGRAM .......................................... 1
Accessories
mcobom
+
KRF-V5050D/V5550D/V6050D/V7050D/X9050D
CONTENTS / ACCESSORIES
EXPLODED VIEW ..........
PARTS LIST ...........
SPECIFICATIONS ..........
FM indoor antenna (1)
(T90-0877-05)
Remote control unit (1)
FTEKFSTTEDDDG \
unuu Dunn
nuun unuuD
annn unuuo
AM loop antenna (1)
(T90-0852-05)
Batteries (Re/AA)
*AC plug adapter (1)
(E03-0115-05)
6 ., to the shape of the wall outlet.
I (Accessory only for regions where use is
necessary.)
* Use to adapt the plug on the power cord
Mdel name vs remote controller
Remote controller
MODEL Destinations Parts number Model name Battery cover
KFtF-V5050D Y A70-1 468-1 5 RC-R0511 A09-1178-08
KFtF-V5050D-S MIX A70-1468-15 RC-R0511 A09-1178-08
KRF-V5050D ET A70-1469-05 RC-R0512 A09-1178-08
KFtF-V5050DE E3 A70-1469-05 RC-Ft0512 A09-1178»08
KFtF-V5050D-S E2T2 A70-1469-05 RC-R0512 A09-1178-08
KFtF-V5550D-S MY A70-1507-05 RC-R0617 A09-1178-08
KRF-V6050D Y A70-1 466-1 5 RC-R0615 A09-1178-08
KFtF-V6050D-S MIX A70-1 466-1 5 RC-Ft0615 A09-1178»08
KFtF-V6050D E A70-1467-05 RC-R0616 A09-1178-08
KFtF-V7050D Y A70-1 464-1 5 RC-R0613 A09-1178-08
KRF-V7050D-S MIX A70-1 464-1 5 RC-R0613 A09-1178-08
KFtF-V7050D ET A70-1465-05 RC-Ft0614 A09-1178-08
KFtF-XQOSOD Y A70-1480-05 RC-RO714 A09-1215-08
KFtF-X9050D-S MIX A70-1480-05 RC-R0714 A09-1215-08
KFtF-X9050D ET A70-1481»05 RC-R0715 A09-1215-08
Cautions
condition.
Resetting the Microcomputer
The microcomputer may malfunction (unit cannot be operated,
or shows an erroneous display) it the power cord is unplugged
while the power is ON, or due to some other external iactors.
If this happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating
With the power cord plugged in, turn the POWER key OFF.
Then, while holding down the ONISTANDBY key, press
POWER key.
I Please note that resetting the microcomputer will clear the contents
of the memory and returns the unit to the state it was in when it left
ztxi
