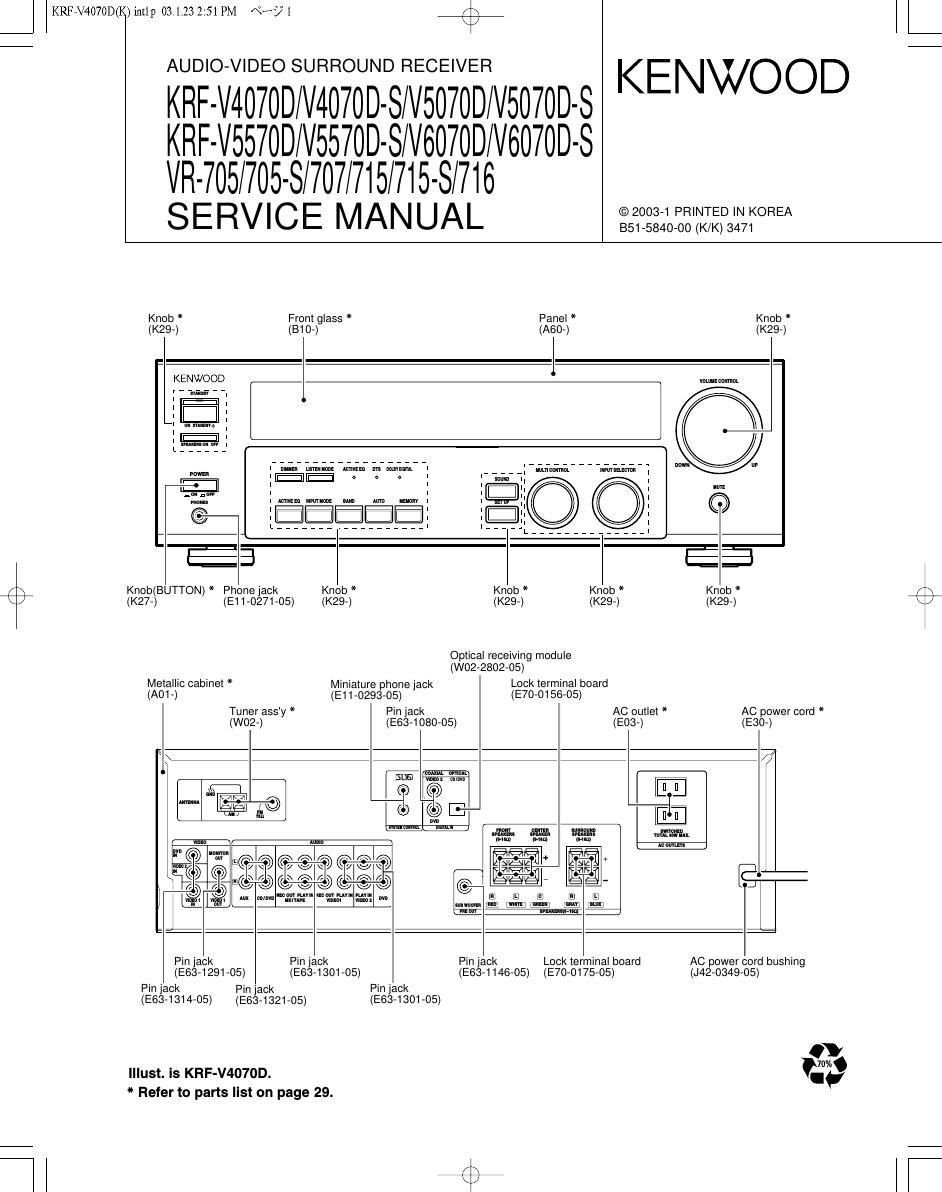

Kenwood KRFVR 715 S Service Manual

Page 2

KRF7V4070D(K) iuttp 03.1.23 2:51PM «3? 2

KRF-V4070D/V5070DN6070D/V R-705/707/715/716

ACCESSORIES / CAUTIONS

Accessories
r N
Remote control unit (1) AM loop antenna (1) FM indoor antenna (1) Batteries (RS/AA) (2)
(See the below table) (T90-0893-05) (T90-0877-05)
RC~R0626
RCVR0625
AC Plug Adaptor (1)
(E03-0115-05)
RCVR0824
1 ~ Use to adapt the plug on the
I" power cord to the shape of the
wall outlet.
(Accessory only for regions where
use is necessary.)
\ 1
REMOTE CONTROL vs MODEL
REMOTE DESTI- REMOTE DESTI-
MODEL PART It
5 CONTROL # NATION MODEL PARTS II CONTROL # NATION
KRF-V4070D E1 KRF-V6070D M7
KRF-V4070D-S A70-1614-05 RC-FIO628 E2 KRF-V6070D A70-1617-05 RC-R0824 X7
KRF-V4070D-S A70-1612-05 RC-R0626 X2 KRF-V6070D A70-1618-05 RC-R0825 E7
KRF-V5070D A70-1613-05 E3 KRF-V6070D-S A70-1617-05 RC-R0824 M8
KRF-V507OD A70-1611-05 RC-RO625 M3 KRF-V6070D-S A70-1618-05 RC-R0825 E8
KRF-V5070D-S A70-1613-05 E4 VR-705 A70-1612-05 RC-ROGZG K1 P1
KRF-V5070D-S A70-1611-05 M4X4 VR-705-S K6P6
KRF-V5570D A70-1612-05 RC-RO626 X5 VR-707 A70-1617-05 RC-R0824 K2P2
KRF-V5570D-S MGXG VR-715 A70-1611-05 RC-R0625 K3P3
KRF-V5570D-S A70-1614-05 RC-FI0628 E6 VR-715-S K5P5
VR-716 A70-1617-05 RC-R0824 K4P4

Cautions

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) if the power cord is unplugged while the
power is ON, or due to some other external factor. If this happens,
execute the following procedure to reset the microcomputer and
return the unit to its normal operating condition.

- Please note that resetting the microcomputer will clear the contents
of the memory and return the unit to the state it was in when it left
the factory

For the USA. and Canada

Unplug the power cord from the wall outlet, then
plug it back in while holding down the POWER key.

For other countries

With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ON/STANDBY I/d)
key, press POWER.

Memory back up function

Please note that the following items will be deleted from the unit's
memory it the power cord is disconnected from the AC outlet for
approximately 3 days.

- Power mode.

- Input selector settings.
- Picture output.

- Speaker ON/OFF.

- Volume level.

- BASS, TREBLE, INPUT level.
- Dimmer level.

- MDfl'APE settings.

- Listen mode setting.

- Speaker settings.

- SW RE-MIX ON/OFF.

- Distance setting.

- Input mode setting.

- Midnight mode setting.

- PRO LOGIC ll mode setting.
- Broadcast band.

- Frequency setting.

- Preset stations.

- Tuning mode.

- CINEMA EQ ON/OFF.

- LOUDNESS ON/OFF.
