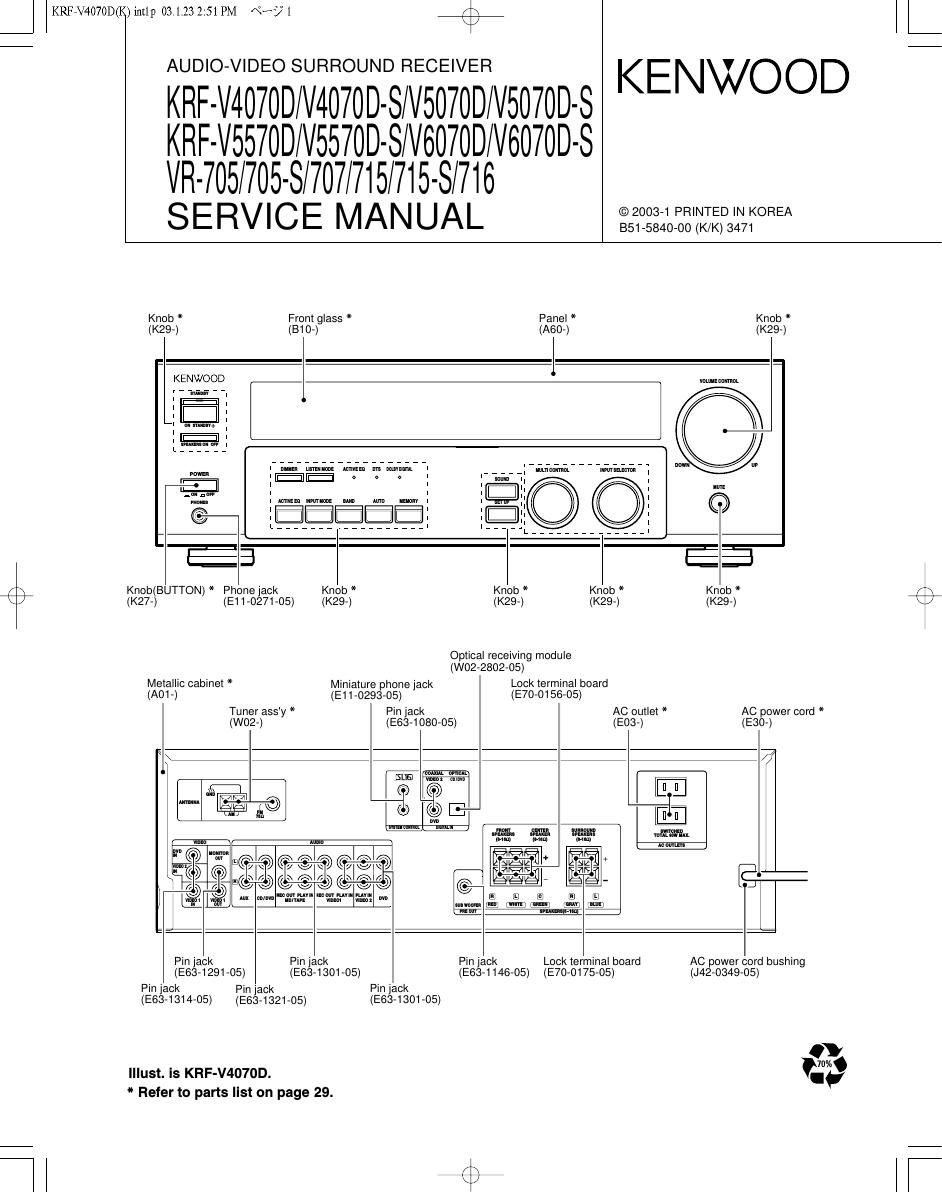

Kenwood KRFVR 707 Service Manual

Page 2

KRF7V4070D(K) iuttp 03.1.23 2:51PM «3? 2

KRF-V4070D/V5070DN6070D/V R-705/707/715/716

ACCESSORIES / CAUTIONS

Accessories
r N
Remote control unit (1) AM loop antenna (1) FM indoor antenna (1) Batteries (RS/AA) (2)
(See the below table) (T90-0893-05) (T90-0877-05)
RC~R0626
RCVR0625
AC Plug Adaptor (1)
(E03-0115-05)
RCVR0824
1 ~ Use to adapt the plug on the
I" power cord to the shape of the
wall outlet.
(Accessory only for regions where
use is necessary.)
\ 1
REMOTE CONTROL vs MODEL
REMOTE DESTI- REMOTE DESTI-
MODEL PART It
5 CONTROL # NATION MODEL PARTS II CONTROL # NATION
KRF-V4070D E1 KRF-V6070D M7
KRF-V4070D-S A70-1614-05 RC-FIO628 E2 KRF-V6070D A70-1617-05 RC-R0824 X7
KRF-V4070D-S A70-1612-05 RC-R0626 X2 KRF-V6070D A70-1618-05 RC-R0825 E7
KRF-V5070D A70-1613-05 E3 KRF-V6070D-S A70-1617-05 RC-R0824 M8
KRF-V507OD A70-1611-05 RC-RO625 M3 KRF-V6070D-S A70-1618-05 RC-R0825 E8
KRF-V5070D-S A70-1613-05 E4 VR-705 A70-1612-05 RC-ROGZG K1 P1
KRF-V5070D-S A70-1611-05 M4X4 VR-705-S K6P6
KRF-V5570D A70-1612-05 RC-RO626 X5 VR-707 A70-1617-05 RC-R0824 K2P2
KRF-V5570D-S MGXG VR-715 A70-1611-05 RC-R0625 K3P3
KRF-V5570D-S A70-1614-05 RC-FI0628 E6 VR-715-S K5P5
VR-716 A70-1617-05 RC-R0824 K4P4

Cautions

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) if the power cord is unplugged while the
power is ON, or due to some other external factor. If this happens,
execute the following procedure to reset the microcomputer and
return the unit to its normal operating condition.

- Please note that resetting the microcomputer will clear the contents
of the memory and return the unit to the state it was in when it left
the factory

For the USA. and Canada

Unplug the power cord from the wall outlet, then
plug it back in while holding down the POWER key.

For other countries

With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ON/STANDBY I/d)
key, press POWER.

Memory back up function

Please note that the following items will be deleted from the unit's
memory it the power cord is disconnected from the AC outlet for
approximately 3 days.

- Power mode.

- Input selector settings.
- Picture output.

- Speaker ON/OFF.

- Volume level.

- BASS, TREBLE, INPUT level.
- Dimmer level.

- MDfl'APE settings.

- Listen mode setting.

- Speaker settings.

- SW RE-MIX ON/OFF.

- Distance setting.

- Input mode setting.

- Midnight mode setting.

- PRO LOGIC ll mode setting.
- Broadcast band.

- Frequency setting.

- Preset stations.

- Tuning mode.

- CINEMA EQ ON/OFF.

- LOUDNESS ON/OFF.

Page 19

62

* New Parts
Parts wsthout Pans Noa are not supphed.
Les amcies non menuonnes dams Te Parts No. ne sont pas fourms. o
Teue ohne Parts Noa werden mcm gehefen.
Add- New ~ - Desti- Re-
Ref, No 55 PansI Parts Noa I Description I "ma marks
MISCELLANEOUS
601 1A A01-3844-01 METALLIC CABINET E1
601 1A A01-3844411 METALLIC CABINET E3
601 1A A01-3844-01 METALLIC CABINET K1P1M3
601 1A A01-3844-01 METALLIC CABINET K3P3X5
601 1A A01 -3844-01 METALLIC CABINET K4P4
601 1A A01-3840-01 METALLIC CABINET M4X4E4
601 1A A01-384B-01 METALLIC CABINET M6X6E6
601 1A A01-384B-01 METALLIC CABINET X2E2
601 1A 4 A01-3885411 METALLIC CABINET 7
601 1A A01-3892-01 METALLIC CABINET KSPS
601 1A 4 A01-3892-01 METALLIC CABINET K6P6
602 1A A09-117B-08 BATTERY COVER K3P3M6
602 1A A09-1170-08 BATTERY COVER K6P6
602 1A A09-117B-08 BATTERY COVER X5X6E6
602 1A A09-117B-08 BATTERY COVER 45K5P5
602 1A A09-1274-08 BATTERY COVER K4P4
602 1A A09-1274-08 BATTERY COVER 7
604 2B A60-2186-11 PANEL K1K2K3
604 2B A60-2186-11 PANEL K4P1 P2
604 2B A60-2186-11 PANEL P3P4
604 2B 4 A60-2190-21 PANEL E1
604 2B 4 A60-2190-21 PANEL M3E3
604 2B 4 A60-2190-21 PANEL M7X7E7
604 2B 4 A60-2190-21 PANEL X5
604 2B A60-2191-11 PANEL M4X4E4
604 2B A60-2191-11 PANEL M6X6E6
604 2B A60-2191-11 PANEL MBXBES
604 2B A60-2191-11 PANEL X2E2
604 2B 4 A60-2335-01 PANEL K5P5
604 2B 4 A60-2335-01 PANEL K6P6
605 1A 4 A70-1611-05 REMOTE CONTROLLER ASSY K3P3
605 1A 4 A70-1611-05 REMOTE CONTROLLER ASSV KSPS
605 1A 4 A70-1611-05 REMOTE CONTROLLER ASSY M3M4X4
605 1A 4 A70-1612-05 REMOTE CONTROLLER ASSY K1 P1
605 1A 4 A70-1612-05 REMOTE CONTROLLER ASSY K6P6
605 1A 4 A70-1612-05 REMOTE CONTROLLER ASSY MGXSXS
605 1A 4 A70-1612-05 REMOTE CONTROLLER ASSY X2
605 1A 4 A70-1613-05 REMOTE CONTROLLER ASSY E3E4
605 1A 4 A70-1614-05 REMOTE CONTROLLER ASSV E1 E2
605 1A 4 A70-1614-05 REMOTE CONTROLLER ASSY E6
605 1A 4 A70-1617-05 REMOTE CONTROLLER ASSY K2P2M7
605 1A 4 A70-1617-05 REMOTE CONTROLLER ASSV K4P4
605 1A 4 A70-1617-05 REMOTE CONTROLLER ASSY M8X7X8
605 1A 4 A70-161B-05 REMOTE CONTROLLER ASSY E7E8
- 4 B60-5330-00 INSTRUCTION MANUAL(EN) K2P2M7
- 4 360-5330-00 INSTRUCTION MANUAL(EN) M8X7X8
- 4 360-5331-00 INSTRUCTION MANUAL(FR) P2
- 4 560-5332-00 INSTRUCTION MANUAL(N/S/F/G/I) E7E8
- 4 B60-5333-00 INSTRUCTION MANUAL(ESFI'C) M8
- 4 360-5335-00 INSTRUCTION MANUAL(EN) K4P4
- 4 560-5336-00 INSTRUCTION MANUAL(FR) P4
- 4 B60-5337-00 INSTRUCTION MANUAL(EN) K1 P1 M3
- 4 360-5337-00 INSTRUCTION MANUAL(EN) K3P3M6
L: Scanmnawa - SA P : Canada a : Mexmu - hma I : Malaysia
V: PXIFarEasI,Hawan) ngand E 2 Euvupe G 2 Geymany hmaIShanghaIl
Y:AAFES(Eumpe) X:Ausnaha mama u : Korea Mromer Areas A Indicates safety cnucalcumponsms.

* New Pans
Parts wuhout Parts No. are not supphed.

Les amcles non mentionnes dens Te Parts No. ne sunt pas fourms, e
Terle ohne Pans No. warden mcht gehefen.
Add- New ~ - Desti- Re-
Ref. No fess Parts Parts Noa Descnphon "350" "mks
- 4 560-5337-00 INSTRUCTION MANUAL(EN) K5P5
- 4 B60-5337-00 INSTRUCTION MANUAL(EN) K6P6
- 4 360-5337-00 INSTRUCTION MANUAL(EN) X2X4M4
- 4 360-5337-00 INSTRUCTION MANUAL(EN) X5X6
- 4 560-5338-00 INSTRUCTION MANUAL(FR) P1 P3P5
- 4 360-5338-00 INSTRUCTION MANUAL(FR) P6
- 4 360-5339-00 INSTRUCTION MANUAL(N/S/F/G/I) E1 E2
- 4 560-5339-00 INSTRUCTION MANUAL(N/S/F/G/I) E3E4
- 4 B60-5339-00 INSTRUCTION MANUAL(N/S/F/G/I) E6
- 4 360-5340-00 INSTRUCTION MANUAL(ESFI'C) M4M6
610 2A 507-2606-03 ESCUTCHEON E1
610 2A B07-2606-03 ESCUTCHEON E3
610 2A 507-2606-03 ESCUTCHEON K1P1M3
610 2A 507-2606-03 ESCUTCHEON K2P2M7
610 2A 307-2606-03 ESCUTCHEON K3P3X5
610 2A 507-2606-03 ESCUTCHEON K4P4
610 2A 507-2606-03 ESCUTCHEON X7E7
610 2A B07-2607-03 ESCUTCHEON K5P5
610 2A B07-2607-03 ESCUTCHEON K6P6
610 2A 507-2607-03 ESCUTCHEON M4X4E4
610 2A B07-2607-03 ESCUTCHEON M6X6E6
610 2A B07-2607-03 ESCUTCHEON M8X8E8
610 2A 507-2607-03 ESCUTCHEON X2E2
611 2A 4 507-2659-01 ESCUTCHEON K2P2M7
611 2A 4 307-2659-01 ESCUTCHEON X7E7
611 2A 4 507-2660-01 ESCUTCHEON MBXBES
611 2A 4 507-2662-01 ESCUTCHEON E1
611 2A 4 B07-2662-01 ESCUTCHEON E3
611 2A 4 307-2662-01 ESCUTCHEON K1P1M3
611 2A 4 307-2662-01 ESCUTCHEON K3P3X5
611 2A 4 B07-2662-01 ESCUTCHEON K4P4
611 2A 4 307-2663-01 ESCUTCHEON KSPS
611 2A 4 307-2663-01 ESCUTCHEON K6P6
611 2A 4 507-2663-01 ESCUTCHEON M4X4E4
611 2A 4 B07-2663-01 ESCUTCHEON M6X6E6
611 2A 4 307-2663-01 ESCUTCHEON X2E2
612 2A 4 310-3906-02 FRONT GLASS K2P2
612 2A 4 B10-3907-02 FRONT GLASS M7M8X7
612 2A 4 510-3907-02 FRONT GLASS X8
612 2A 4 510-3908-02 FRONT GLASS E7E8
612 2A 4 B10-3909-02 FRONT GLASS K1P1
612 2A 4 510-3909-02 FRONT GLASS K6P6
612 2A 4 B10-3910-02 FRONT GLASS M3M4X4
612 2A 4 B10-3911-02 FRONT GLASS E3E4
612 2A 4 510-3912-02 FRONT GLASS E1E2
612 2A 4 B10-3913-02 FRONT GLASS X2
612 2A 4 B10-3914-02 FRONT GLASS K3P3
612 2A 4 510-3914-02 FRONT GLASS KSPS
612 2A 4 310-3915-02 FRONT GLASS M6X5X6
612 2A 4 B10-3916-02 FRONT GLASS E6
612 2A 4 B10-3917-02 FRONT GLASS K4P4
613 2A 4 311-1568-03 COLOR FILTER
614 2A B12-0448-04 INDICATOR
615 2A B12-0465-04 INDICATOR
616 2A 343-0314-04 KENWOOD BADGE
L: Scandinavia K : USA P 2 Canada I 2 Mexmu C 2 Chma I : Malaysia
V: PXIFarEasI,Hawaul T: England E 2 Eumpe G 2 Gevmany V 2 ChmaIShanghav)
Y:AAFES(Eumps) X:Ausllaha Qrfiussla H 2 Kmaa MIOIhaI Areas A Indicates safely Crltlcalcumpunents.
* New Fans

Pans wnhout Parts Noa are not SuppIIed.
es arndes non mentionnes dans le Parts No. me sont pas IOUITIIS

ene ohne Parts Noa warden mcht gehefen.
