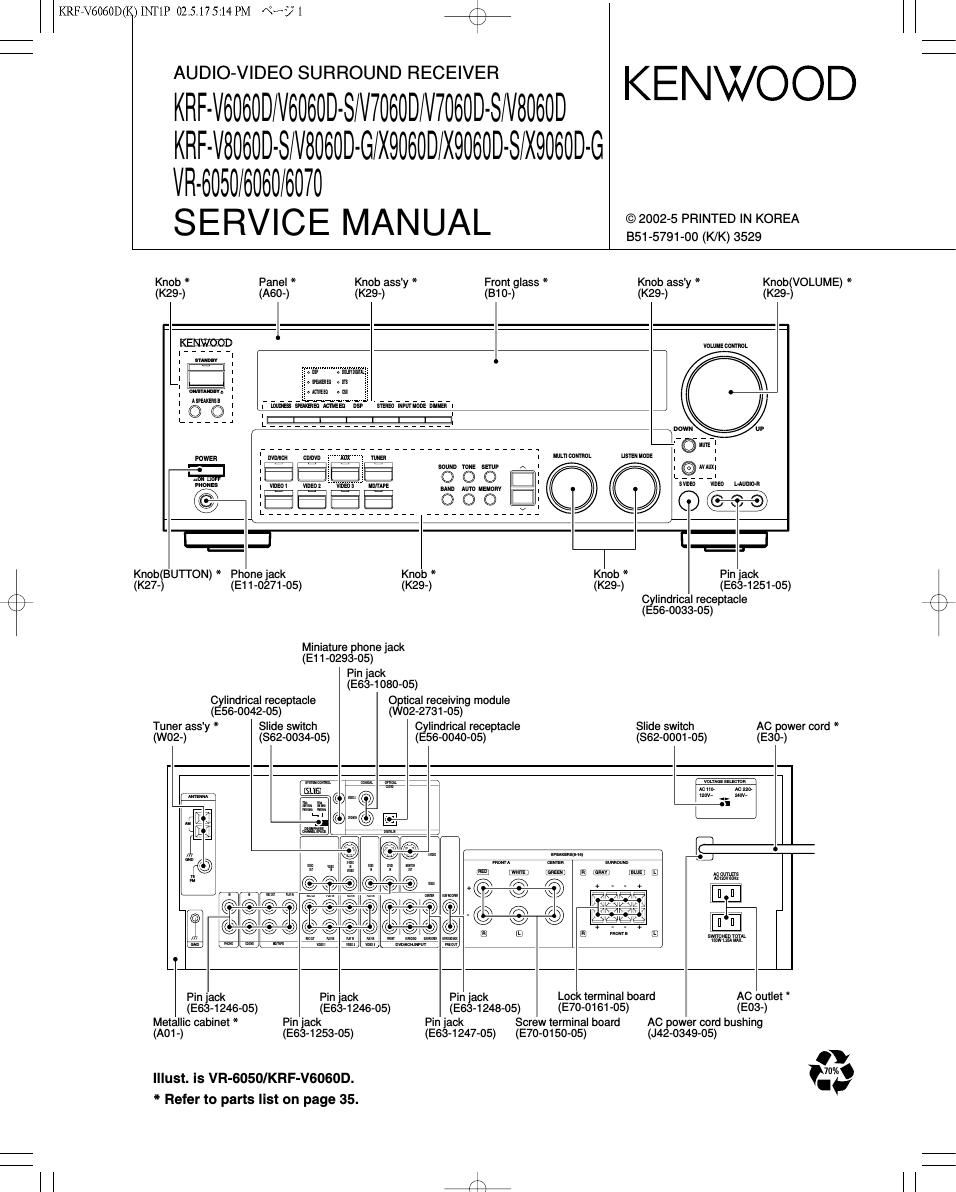

Kenwood KRFV 8060 D Service Manual

Page 2

KRwsosthKnNrtp 02.5.175:14PM «um +
KRF-V6060D/V7060D/V8060D/X9060D/VR-6050/6060/6070

CONTENTS / ACCESSORIES / CAUTIONS

Contents
CONTENTS / ACCESSORIES / CAUTIONS ............. 2 SCHEMATIC DIAGRAM .......................................... 13
EXTERNAL VIEW... EXPLODED VIEW.
WIRING DIAGRAM. PARTS LIST ........ ..
PC BOARD ................................................................ 5 SPECIFICATIONS .................................................... 46
Accessories
r \
FM indoor antenna (1) AM loop antenna (1) RF remote antenna (1) Remote control unit (1)
(T90-0877-05) (T90-0852-05) (For VFi-6060/6070 only) Refer to the table on this page below.

(T90-0899-05)

Batteries (RB/AA) (2) AC Plug Adaptor (1)
(E03-0383-05) (E03-0382-05)
Use to adapt the plug on the
power cord to the shape of the

wall outlet.
(Accessory only for regions where
use is necessary.)

\ J
(3 Model name vs Remote controller
Remote controller
MODEL Destinations Parts number Model name Battery cover
VR-GOSO KP A70-1555-05 RC-RO727 A09-1258-08
KRF-V6060D Y A70-1555-05 RC-RO727 A09-1258-08
KRF-V6060D E A70-1554-05 RC-RO726 A09-1258-08
KRF-VGOGOD-S TE A70-1554-05 RC-RO726 A09-1258-08
KRF-VGOGOD-S MIXH A70-1555-05 RC-R0727 A09-1258-08
KRF-V7060D E A70-1554-05 RC-RO726 AOQ-1258-08
KRF-V7060D-S E A70-1554-05 RC-R0726 A09-1258-08
VR-GOGO KP A70-1552-05 RC-R0816 A09-1258-08
KRF-VaosoD E A70-1554-05 RC-RO726 A09-1258-08
KRF-VaosoD-s E A70-1554-05 RC-RO726 A09-1258-08
KRF-VaoeoD-s X A70-1553-05 RC-RO725 A09-1258-08
KRF-VaOGOD-G M A70-1553-05 RC-R0725 A09-1258-08
VR-607O KP A70-1549-05 RC-R0813 A09-1258-08
KRF-XQOGOD E A70-1551-05 RC-R0815 A09-1258-08
KRF-XQOGOD Y A70-1550-05 RC-R0814 A09-1258-08
KRF-XQOGOD-S ET A70-1551-05 RC-R0815 A09-1258-08
KRF-XQOGOD-S X A70-1550-05 RC-R0814 A09-1258-08
KRF-XQOGOD-G MH A70-1550-05 RC-R0814 A09-1258-08
Cautions
Resetting the Microcomputer For the U.S.A. and Canada
The microcomputer may malfunction (unit cannot be operated, or Unplug the power cord from the wall outlet, then plug it
shows an erroneous display) itthe power cord is unplugged while back in while holding down the POWER ON/STANDBV
the power is ON, or due to some other external lactor. If this u hav-

happens, executethefollowing plocedureto resetthe microcom-
puter and return the unit to its normal operating condition.

Far ather enuntries
With the power cord plugged in, turn the POWER ONI
- Please note that resetting the microcomputerwlll clearthe contents OFF key OFE The" while holding down the ON/
ThelIchrIIfrTow and returns the unit to the state it was in when it left STANDBV 0 key, press POWER ONIOFF.

l l 4
