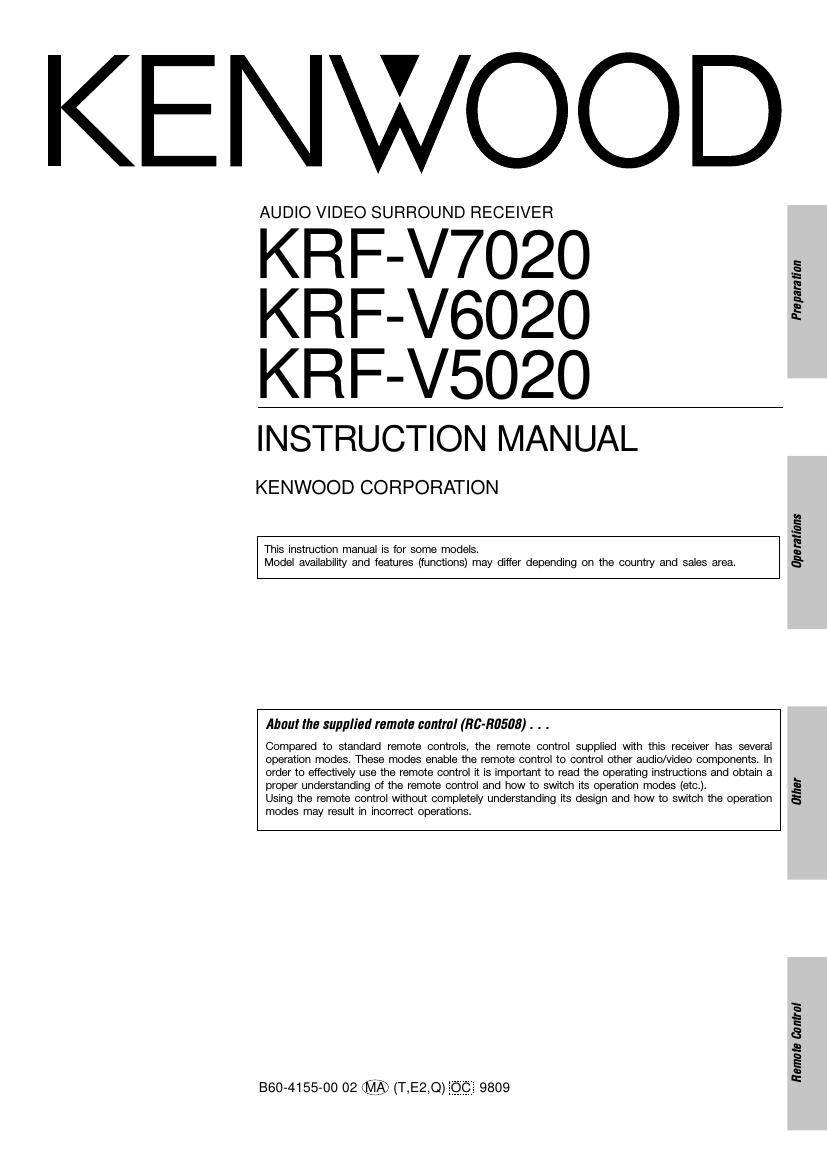

Kenwood KRFV 7020 Owners Manual
This is the 28 pages manual for Kenwood KRFV 7020 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRFV 7020 Owners Manual (Ocr-read)
Page 1
2 Operations KRF-V7020/V6020/V5020 (En/T) Other Preparations WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS- TURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS EN- CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PER- SONS. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing mate- rials for use should you transport or ship the unit in the future. Keep this manual handy for future reference. Before applying the power Getting started Caution : Read this page carefully to ensure safe operation. Safety precautionsUnpacking Accessories FM indoor antenna (1) Loop antenna stand (1) AM loop antenna (1) REQUIREMENT BY NEDERLAND GAZETTE Batteries are supplied with this product. When they empty, you should not throw away. Instead, hand them in as small chemical waste. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRI- ANGLE IS INTENDED TO ALERT THE USER TO THE PRES- ENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE AC- COMPANYING THE APPLIANCE. Cleaning Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth. Do not use contact cleaners because it could cause a malfunction. Be specially careful against contact cleaners containing oil, for they may deform the plastic components. For the United Kingdom Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13- Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three-pin plug. Units are designed for operation as follows. U.K. and Europe ............................................... AC 230 V only Russia ............................................................... AC 220 V only Batteries (R03/AAA) (4) For KRF-V7020, KRF-V6020 Remote control unit (1) RC-R0508 For KRF-V5020 Remote control unit (1) RC-R0710 Batteries (R06/AA) (2)
Page 2
3 Operations Preparations Other Remote Control KRF-V7020/V6020/V5020 (En/T) Contents Other Operations Preparations Getting started Caution : Read the pages marked carefully to ensure safe operation. Getting started ................................... 2 Before applying the power .................................. 2 Safety precautions............................................... 2 Unpacking............................................................ 2 How to use this manual ........................................ 4 Special features................................................... 4 Names and functions of parts ................. 5 Setting up the system ........................... 8 Connecting audio components ........................... 8 Connecting video components ............................ 9 Connecting DVD 6-channel jack ......................... 9 Connecting the antennas ..................................... 9 Connecting the system control .......................... 10 Connecting the speakers ................................... 11 Preparing the remote control (RC-R0508) ......... 12 Preparing the remote control (RC-R0710) ......... 13 Preparing for surround sound ................ 13 Speaker settings................................................ 13 Normal playback ................................ 14 Preparing for playback ...................................... 14 Listening to a source component ...................... 15 Adjusting the sound ........................................... 15 Recording ........................................ 16 Recording audio................................................. 16 Recording video ................................................. 16 Listening to radio broadcasts ................. 17 Tuning (non-RDS) radio stations ....................... 17 Using RDS (Radio Data System) ....................... 17 Using the DISPLAY key ...................................... 18 Presetting RDS stations (RDS AUTO MEMORY) ...................................... 18 Presetting radio stations manually ..................... 19 Receiving preset stations .................................. 19 Receiving preset stations in order (P.CALL) ..... 19 Tuning by program type (PTY search) .............. 20 Reserving the desired information ..................... 20 Ambience effects ............................... 22 Surround modes ................................................. 22 Surround play ..................................................... 23 DVD 6-channel playback ................................... 23 Convenient functions......................................... 24 In case of difficulty ............................. 25 Specifications ................................... 27 Quick start guide ................................. 1 Getting the most from your remote control ............................. 3 Setup code chart ................................. 7 In case of difficulty ............................. 13 Remote operation of other components .... 14 Remote Control (Separate booklet) (RC-R0508)
