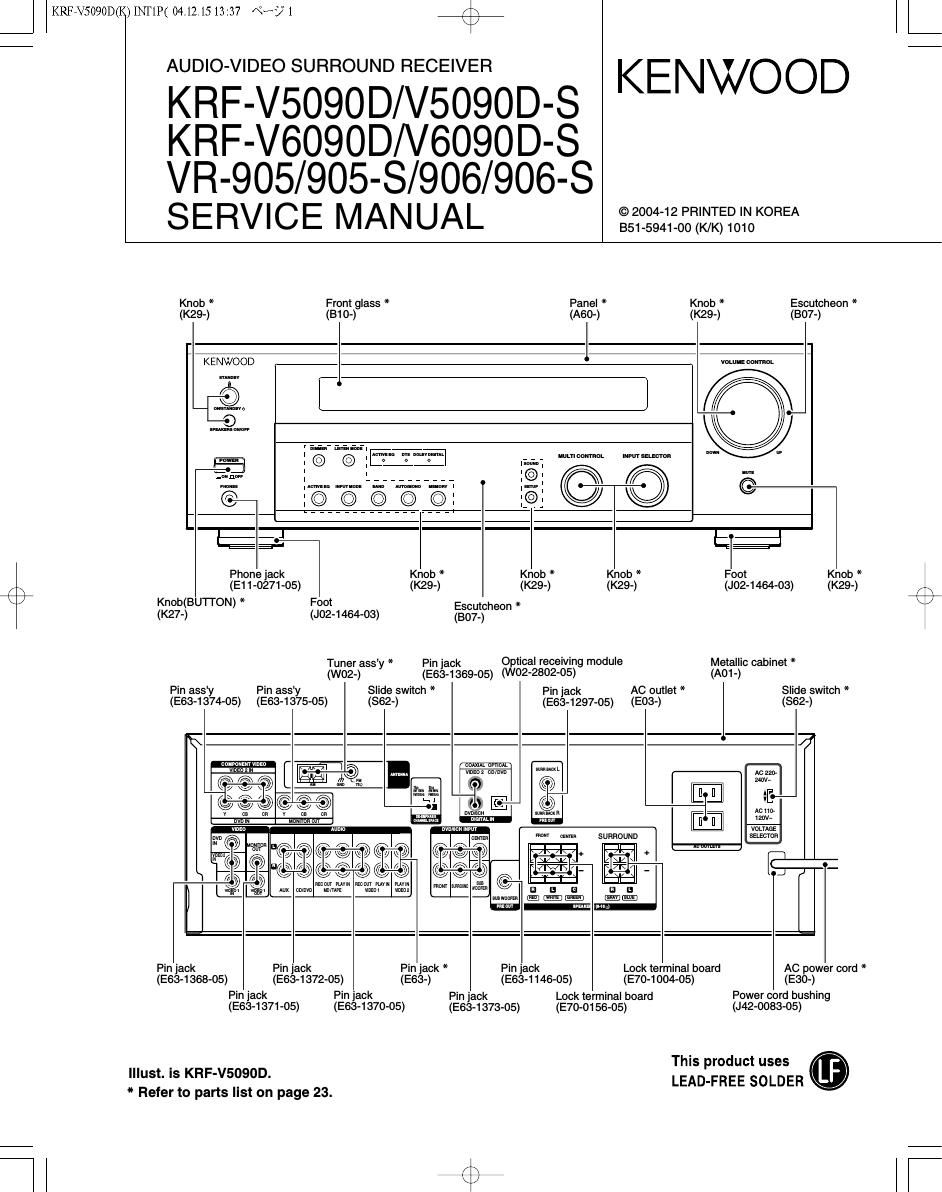

Kenwood KRFV 6090 DS Service Manual

Extracted text from Kenwood KRFV 6090 DS Service Manual (Ocr-read)


Page 2

Accessones

KRF7V5090D(K)INT1P( 04.12.1513:37 «392

/\
K

KRF-V5090D/V6090DNR-905/906

ACCESSORIES / CAUTIONS

FM indoor antenna (1)
(T90-0855-05): YXE
(Tso-osos-os): KP

Batteries (R03/AAA) (2)

AM loop antenna (1)
(T90-0893-05)

Remote control unit (1)
RC-ROGSO/ROGSOE
(A70-1669-05): KPY
(A70-1670-05): EX

° SE

k1

*AC plug adapter (1)

(an-osos-os)

,9

"Use to adapter the plug on the power
cord to the sape ot the wall outlet.
(Accessory only for regions where

use is necessary.)

MODEL vs UNIT

MODEL SURROUND AUDIO DISPLAY ELECTRIC
VR'905/'S K X08-3420-10 X09-6970-1O X14-7930-10

vn-906/-s P

KFtF-V60900 Y X08-3422-91 X09-6972-91 X14-7932-91 X25-6730-10
KnF-vaogoo-s x X 4 11 X09-6970-71 x14-793o-71
KRF-VGOQOD/D-S E 08'3 20' X09-6972-71 X14-7932-71

VR-905-S K

vn-905/-s P X08-3420-1O X09-6970-11 x14-7930-11 -
KRF-V5OQOD/D-S Y X08-3422-92 X09-6972-92 x14-7932-92 X25673010
KRF-V50900-S X X08 3420 10 X09-6970-72 X14-7930-72 ' '
KRF-V50900/D-S E ' ' X09-6972-72 X14-7932-72 -
Cauflons

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated,
or shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. It
this happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating

condition.

0 Please note that resetting the microcomputer will clear the contents
ol the memory and return the unit to the state it was in when it lelt

the factory.

For the U.S.A. and Canada

(bkey.

Unplug the power cord from the wall outlet, then plug
it back in while holding down the POWER ON/STANDBY

For other countries

With the power cord plugged in, turn the POWER ON/
OFF key OFF. Then, while holding down the ON/STANDBY
Okey, press POWER ONIOFF key.
