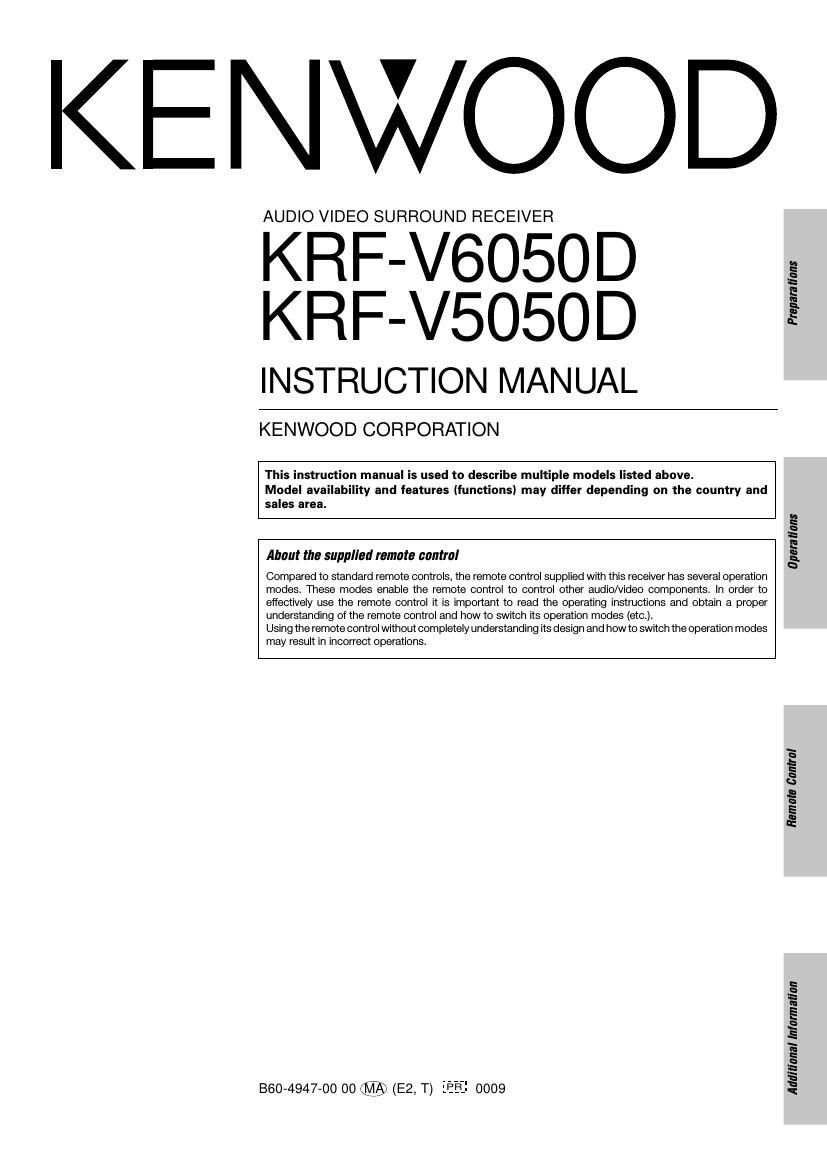

Kenwood KRFV 6050 D Owners Manual
This is the 40 pages manual for Kenwood KRFV 6050 D Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRFV 6050 D Owners Manual (Ocr-read)
Page 1
2 Preparations WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS IN- SIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS EN- CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future. Keep this manual handy for future reference. Before applying the power Caution : Read this page carefully to ensure safe operation. Safety precautionsUnpacking Accessories FM indoor antenna (1)AM loop antenna (1) THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRI- ANGLE IS INTENDED TO ALERT THE USER TO THE PRES- ENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOM- PANYING THE APPLIANCE. For KRF-V6050D Batteries (R6/AA) (2) Remote control unit (1) RC-R0616 Units are designed for operation as follows. Europe and U.K. ............................................... AC 230 V only Other countries ............................... AC 110-120 / 220 - 240 V Remote control unit (1) RC-R0512For KRF-V5050D Batteries (R6/AA) (2) Microcomputer malfunction If operation is not possible or an erroneous display appears, even though all connections have been made properly, reset the microcom- puter referring to ÒIn case of difficultyÓ.¡ Maintenance of the unit When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for these agents may cause discoloration. In regard to contact cleaner Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners containing oil, for they may deform the plastic component.
Page 2
3 Operations Preparations Other Remote Control Before applying the power Contents Before applying the power ................... 2 Safety precautions .............................................. 2 Unpacking.......................................................... 2 How to use this manual ...................................... 4 Special features .................................................. 4 Names and functions of parts ................ 5 Remote control unit (RC-R0616) (KRF-V6050D) ..................................................... 6 Remote control unit (RC-R0512) (KRF-V5050D) ..................................................... 7 Setting up the system ......................... 8 Connecting audio components ........................... 9 Connecting video components ......................... 10 Connecting a DVD player (6 channel input) ...... 11 Digital connections ........................................... 12 Connecting to the AV AUX jacks (KRF-V6050D only) ........................................... 13 Connecting the antennas .................................. 13 Connecting the system control ......................... 14 Connecting the speakers .................................. 15 Preparing the remote control ............................ 17 Preparing for surround sound ............... 18 Speaker settings ............................................... 18 Caution : Read the pages marked carefully to ensure safe operation. Preparations Operations Remote Control Normal playback .............................. 19 Preparing for playback ...................................... 19 Listening to a source component ..................... 20 Adjusting the sound .......................................... 20 Recording ...................................... 21 Recording audio (analog sources) .................... 21 Recording video ................................................ 22 Recording audio (digital sources) ...................... 22 Listening to radio broadcasts ............... 23 Tuning (non-RDS) radio stations ....................... 23 Using RDS (Radio Data System) ....................... 23 Using the RDS DISP. (Display) key ................... 24 Presetting RDS stations (RDS AUTO MEMORY) ..................................... 24 Presetting radio stations manually .................... 25 Receiving preset stations .................................. 25 Receiving preset stations in order (P.CALL) ...... 25 Tuning by program type (PTY search) .............. 26 Ambience effects .............................. 27 Surround modes ............................................... 27 Surround play ................................................... 29 DVD 6-channel playback .................................. 30 Convenient functions ........................................ 30 Basic remote control operations for other components (For KRF-V6050D) ............. 32 Registering setup codes for other components ...................................................... 32 Operating other components ............................ 32 Setup code chart (KRF-V6050D) (For RC-R0616) ................................................ 33 DVD player operations (For KRF-V5050D) ........ 34 Cassette deck, CD player & MD recorder operations (For KRF-V5050D) ........................... 35 Cassette deck, CD player & MD recorder operations (For KRF-V6050D) ........................... 36 Other components' operations (For KRF-V6050D) ............................................ 37 Additional Information Remote Control Additional Information In case of difficulty ........................... 38 Specifications ................................. 40
Page 39
40 Specifications Caution : Read this page carefully to ensure safe operation. AUDIO section (KRF-V6050D) Rated power output during STEREO operation DIN/IEC (DIN 1kHz, 0.7% T.H.D.,at 6 W) ............ 110 W + 110 W Effective power output during SURROUND operation FRONT (1kHz, 0.7% T.H.D. at 6 W, one channel driven) .............................................................................. 100 W + 100 W CENTER (1kHz, 0.7% T.H.D. at 6 W, one channel driven) ............................................................................................. 100 W SURROUND (1kHz, 0.7% T.H.D. at 6 W, one channel driven) .............................................................................. 100 W + 100 W Total harmonic distortion ......................... 0.050% (1 kHz, 50W, 6 W) Frequency response (IHF '66) CD ............................................. 10 Hz ~ 60 kHz, +0 dB, Ð3.0 dB Signal to noise ratio (IHFÕ66) PHONO (MM) ........................................................................ 74 dB CD ......................................................................................... 90 dB Input sensitivity / impedance PHONO (MM) ......................................................... 2.5 mV / 27 kW CD ......................................................................... 200 mV / 47 kW VIDEO2/MONITOR ............................................... 200 mV / 47 kW DVD/6ch INPUT ................................................... 200 mV / 10 kW Output level / impedance TAPE REC .............................................................. 200 mV / 1 kW VIDEO2/MONITOR ................................................. 200 mV / 1 kW PRE OUT (SUBWOOFER) ...................................... 1.5 V / 2.2 kW Tone control BASS ................................................................ ±10 dB (at 70 Hz) TREBLE.......................................................... ±10 dB (at 10 kHz) AUDIO section (KRF-V5050D) Rated power output during STEREO operation DIN/IEC (DIN 1 kHz, 0.7% T.H.D., 6 W) ............... 110 W + 110 W Effective power output during SURROUND operation FRONT (1kHz, 0.7% T.H.D. at 6 W, one channel driven) .............................................................................. 100 W + 100 W CENTER (1kHz, 0.7% T.H.D. at 6 W, one channel driven) ............................................................................................. 100 W SURROUND (1kHz, 0.7% T.H.D. at 6 W, one channel driven) .............................................................................. 100 W + 100 W Total harmonic distortion ......................... 0.050% (1 kHz, 50W, 6 W) Frequency response (IHF '66) CD ............................................. 40 Hz ~ 60 kHz, +0 dB, Ð3.0 dB Signal to noise ratio (IHFÕ66) PHONO (MM) ........................................................................ 74 dB CD ......................................................................................... 90 dB Input sensitivity / impedance PHONO (MM) ......................................................... 2.5 mV / 27 kW CD ......................................................................... 200 mV / 47 kW MONITOR IN (VIDEO2/MONITOR) ..................... 200 mV / 47 kW DVD/6ch INPUT ................................................... 200 mV / 47 kW Output level / impedance TAPE REC .............................................................. 200 mV / 1 kW MONITOR OUT (VIDEO2/MONITOR) ................... 200 mV / 1 kW PRE OUT (SUBWOOFER) ...................................... 1.5 V / 2.2 kW Tone control BASS ................................................................ ±10 dB (at 70 Hz) TREBLE.......................................................... ±10 dB (at 10 kHz) DIGITAL AUDIO section Sampling frequency ...................... 32 kHz, 44.1 kHz, 48 kHz, 96kHz Input level / impedance / wave length Optical........................... (Ð15 dBm ~ Ð21 dBm), 660 nm ±30nm Coaxial................................................................. 0.5 Vp-p / 75 W VIDEO section VIDEO inputs / outputs VIDEO (composite) ................................................. 1 Vp-p / 75 W S-VIDEO inputs / outputs (KRF-V6050D) S-VIDEO (Y-signal) ................................................. 1 Vp-p / 75 W (C-signal).......................................... 0.286 Vp-p / 75 W FM tuner section Tuning frequency range ................................... 87.5 MHz ~ 108 MHz Usable sensitivity (DIN at 75 W) MONO ......................... 1.3 µV/13.2 dBf (40 kHz dev. S/N 26 dB) STEREO...................... 45 µV/42.1 dBf (46 kHz dev. S/N 46 dB) Total harmonic distortion (1 kHz) MONO ........................................................ 0.2% (71.2 dBf input) STEREO.................................................... 0.8% (71.2 dBf input) Signal to noise ratio (DIN weighted) MONO .................................. 65 dB (40 kHz dev. 71.2 dBf input) STEREO.............................. 60 dB (46 kHz dev. 71.2 dBf input) Stereo separation (DIN 1 kHz) ................................................... 36 dB Selectivity (DIN ± 300 kHz) ........................................................ 64 dB Frequency response ................. (30 Hz ~ 15kHz), +0.5 dB, Ð3.0 dB AM tuner section Tuning frequency range ................................... 531 kHz ~ 1,602 kHz Usable sensitivity ................................................. 16 µV / (600 µV/m) Signal to noise ratio (30% mod. 1 mV input) ........................... 50 dB GENERAL Power consumption .................................................................. 250 W AC outlet SWITCHED ...................................................... (total 90 W max.) Dimensions ...................................................................... W : 440 mm H : 143 mm D : 400 mm Weight KRF-V6050D ............................................................................... 8.6 kg KRF-V5050D ............................................................................... 8.5 kg Notes 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature). For your recordsRecord the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product. Model __________________ Serial Number ________________________
