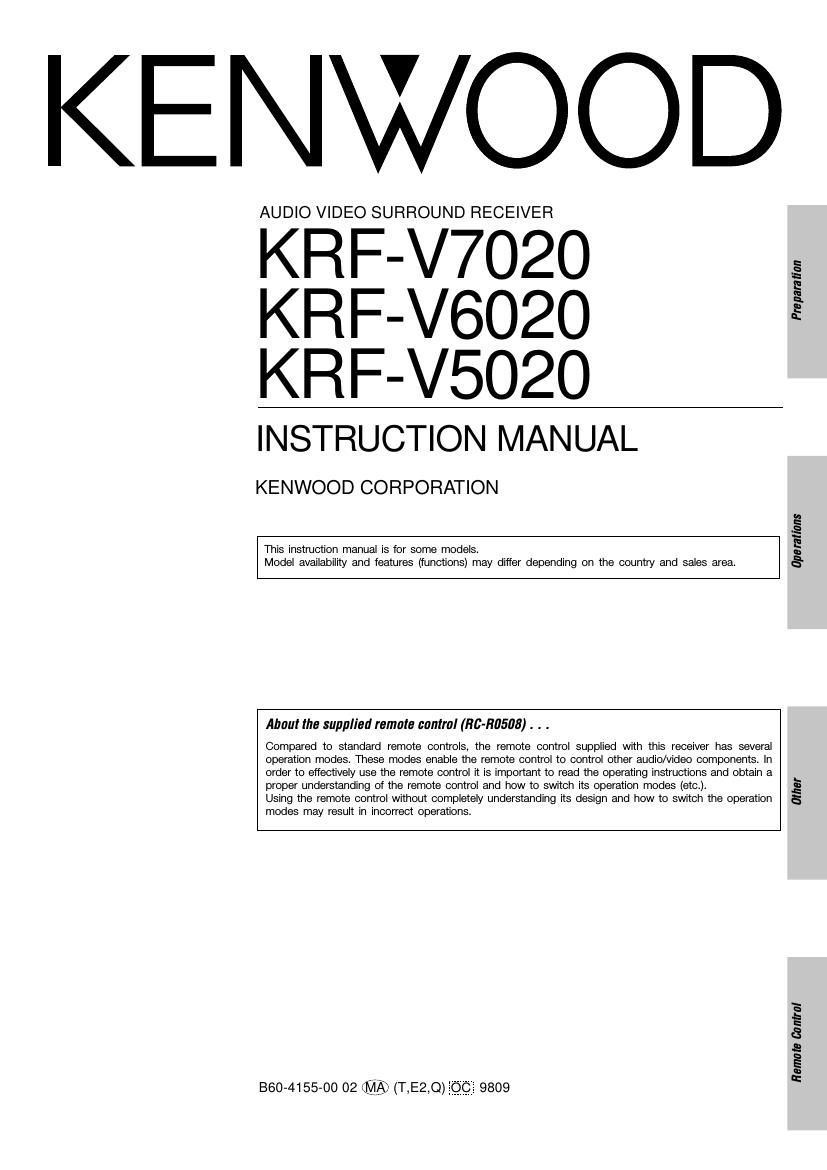

Kenwood KRFV 6020 Owners Manual
This is the 28 pages manual for Kenwood KRFV 6020 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRFV 6020 Owners Manual (Ocr-read)
Page 1
2 Operations KRF-V7020/V6020/V5020 (En/T) Other Preparations WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS- TURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS EN- CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PER- SONS. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing mate- rials for use should you transport or ship the unit in the future. Keep this manual handy for future reference. Before applying the power Getting started Caution : Read this page carefully to ensure safe operation. Safety precautionsUnpacking Accessories FM indoor antenna (1) Loop antenna stand (1) AM loop antenna (1) REQUIREMENT BY NEDERLAND GAZETTE Batteries are supplied with this product. When they empty, you should not throw away. Instead, hand them in as small chemical waste. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRI- ANGLE IS INTENDED TO ALERT THE USER TO THE PRES- ENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE AC- COMPANYING THE APPLIANCE. Cleaning Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth. Do not use contact cleaners because it could cause a malfunction. Be specially careful against contact cleaners containing oil, for they may deform the plastic components. For the United Kingdom Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13- Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three-pin plug. Units are designed for operation as follows. U.K. and Europe ............................................... AC 230 V only Russia ............................................................... AC 220 V only Batteries (R03/AAA) (4) For KRF-V7020, KRF-V6020 Remote control unit (1) RC-R0508 For KRF-V5020 Remote control unit (1) RC-R0710 Batteries (R06/AA) (2)
Page 2
3 Operations Preparations Other Remote Control KRF-V7020/V6020/V5020 (En/T) Contents Other Operations Preparations Getting started Caution : Read the pages marked carefully to ensure safe operation. Getting started ................................... 2 Before applying the power .................................. 2 Safety precautions............................................... 2 Unpacking............................................................ 2 How to use this manual ........................................ 4 Special features................................................... 4 Names and functions of parts ................. 5 Setting up the system ........................... 8 Connecting audio components ........................... 8 Connecting video components ............................ 9 Connecting DVD 6-channel jack ......................... 9 Connecting the antennas ..................................... 9 Connecting the system control .......................... 10 Connecting the speakers ................................... 11 Preparing the remote control (RC-R0508) ......... 12 Preparing the remote control (RC-R0710) ......... 13 Preparing for surround sound ................ 13 Speaker settings................................................ 13 Normal playback ................................ 14 Preparing for playback ...................................... 14 Listening to a source component ...................... 15 Adjusting the sound ........................................... 15 Recording ........................................ 16 Recording audio................................................. 16 Recording video ................................................. 16 Listening to radio broadcasts ................. 17 Tuning (non-RDS) radio stations ....................... 17 Using RDS (Radio Data System) ....................... 17 Using the DISPLAY key ...................................... 18 Presetting RDS stations (RDS AUTO MEMORY) ...................................... 18 Presetting radio stations manually ..................... 19 Receiving preset stations .................................. 19 Receiving preset stations in order (P.CALL) ..... 19 Tuning by program type (PTY search) .............. 20 Reserving the desired information ..................... 20 Ambience effects ............................... 22 Surround modes ................................................. 22 Surround play ..................................................... 23 DVD 6-channel playback ................................... 23 Convenient functions......................................... 24 In case of difficulty ............................. 25 Specifications ................................... 27 Quick start guide ................................. 1 Getting the most from your remote control ............................. 3 Setup code chart ................................. 7 In case of difficulty ............................. 13 Remote operation of other components .... 14 Remote Control (Separate booklet) (RC-R0508)
Page 9
10 Preparations KRF-V7020/V6020/V5020 (En/T) Connecting the system control Connecting system control cords after connecting a KENWOOD audio component system lets you take advantage of convenient system control operations. There are two KENWOOD system control modes. Make connec- tions according to the groups of terminal symbols shown below. Ä Mode : lets you combine f , Ä , and F terminals Mode : for terminals only This unit is compatible with both [XS8] and [SL16] modes. It comes from the factory set to the [SL16] mode. To switch to the [XS8] mode, follow the instructions in ÒSWITCHING FROM [SL16] TO [XS8]Ó below. [SL16] [ XS8] [SL16] [SL16] [ XS] [ XS8] [ XR] [SL16] [ XS] [ XS8] [ XS] [ SL16] [XS8] [ SL16] [XS] [XS8] [XR] [ SL16] [XS] [XS8] [XS]SYSTEM CONTROL cord SYSTEM CONTROL cord Receiver MD recorder Cassette deck CD player Record player Receiver Cassette deck or MD recorder CD player Record player ¥ In order to take advantage of the system control operations, the components must be connected to the correct jacks. To use a CD player it must be connected to the CD jacks. To use a cassette deck (or MD recorder) it must be connected to the MD/TAPE jacks. When using more than one CD player (etc.) only the one connected to the specified jacks may be connected for system control. ¥ Some CD players and cassette decks are not compatible with the [SL16] system control mode. Be sure to use the [XS8] system control mode when making system connections with equipment that is not [SL16] compatible. ¥ Some MD players are not system control compatible. You cannot make system control connections to this kind of equipment. SYSTEM CONTROL OPERATIONS Remote Control Lets you operate this unit with the system remote supplied with the receiver. Automatic Operation (except [XR] equipment) When you start playback from a source component, the input selector on this unit switches to that component automatically. Synchronized Recording (except [XR] equipment) Lets you synchronize recording with the start of playback when recording from CD, MD or analog discs. SWITCHING FROM [SL16] TO [XS8] ¥ This operation will not effect items stored in the memory. ¥ After switching the system control mode, turn the power off and unplug the power cord from the wall outlet, then plug it back. You can easily change the system control mode by adjusting the position of the SYSTEM CONTROL switch on the rear panel. Do this operation after completing all connections. ¥ Once you finish making the system connections, be sure to register the appropriate setup code for each component.RC3 ¥ If you own remote controllable KENWOOD audio components that are not compatible with system control (or cannot be combined with your other system control components), registering the setup code enables you to control those components using the remote control supplied with this unit (without connecting system control cords). To register setup codes for your remote controllable KENWOOD audio compo- nents, see "Registering setup codes for other components". RC3 Setting up the system Notes 1. [SL16] equipment cannot be combined with [XR], [XS], and [XS8] equipment for system operations. If your equipment consists of this kind of combination, please do not connect any system control cords. Even without system control cords, normal operations can be carried out without effecting performance. 2. Do not connect system control cords to any components other than those specified by KENWOOD. It may cause a malfunction and damage your equipment. 3. Be sure the system control plugs are inserted all the way in to the system control terminals. EXAMPLE: [XS8] mode connections The underlined portion represents the setting of the system control mode. EXAMPLE: [SL16] mode connections The underlined portion represents the setting of the system control mode. Do not connect a system control cord to a cassette deck con- nected to the MONITOR jacks. Registering setup codes for KENWOOD audio components (RC-R0508 only) SYSTEM CONTROL cord SYSTEM CONTROL switch (Ä) SYSTEM CONTROL SL16(XS8) (Ä) SYSTEM CONTROL SL16 (XS8) SYSTEM CONTROL cord SYSTEM CONTROL switch For [SL16] For [XS8] SL16 (XS8) SL16(XS8) For [SL16] For [XS8] KRF-V7020, KRF-V6020 KRF-V5020 KRF-V7020, KRF-V6020 KRF-V5020
Page 15
16 Operations KRF-V7020/V6020/V5020 (En/T) To adjust the balance Muting the sound MUTE lets you mute the sound of the speakers. Press the MUTE key. To cancel Press the MUTE key again so that the ÒMUTEÓ indicator goes off. ¥ Muting can also be cancelled by adjusting the volume.Blinks Use the test tone feature.$ - 3 SOURCE DIRECT playback (analog sources only) Use this function to pass the source material direct to the amplifier, bypassing any audio processing. To cancel Press the SOURCE DIRECT key. ¥ Either press the LISTEN MODE, SOUND, and SETUP keys, or switch to another input source to cancel SOURCE DIRECT play- back. Listening with headphones 1Use the SPEAKERS A or B key (or the SPEAKERS key) to turn off the speaker indicator. Make sure the SPEAKERS indicators are turned off. 2Connect headphones to the PHONES jack.¥ If you turn off all of the speakers when in the surround mode, the mode is cancelled as well, resulting in stereo playback. 3Use the VOLUME CONTROL knob (VOLUME) to adjust the vol- ume. 1Use the input selector to select the source (other than ÒTAPEÓ) you want to record. 2Set the cassette deck to record. 3Start playback, then start recording. Recording audio Recording video 1Use the input selector to select the video source (other than ÒVIDEO2Ó) you want to record. 2Set the video deck connected to VIDEO2/MONITOR to record. 3Start playback, then start recording. Recording Recording a music source 1Press the VIDEO 2/MONITOR key. 2Use the input selector to select a source other than ÒTAPEÓ. 3Start playback on the cassette deck connected to the VIDEO2/ MONITOR jacks and start recording on the cassette deck con- nected to the MD/TAPE jacks. Copying tapes 1Use the input selector to select ÒTAPEÓ. 2Start playback on the cassette deck connected to the MD/TAPE jacks and start recording on the cassette deck connected to the VIDEO2/MONITOR jacks. MONITOR = TAPE copying TAPE = MONITOR copying ¥ To copy tapes using a double cassette deck, refer to the instruc- tion manual of the double cassette deck. MONITOR function You can connect a cassette deck or graphic equalizer to the VIDEO2/ MONITOR jacks of the receiver. If a graphic equalizer is connected, the VIDEO2/MONITOR key should be left in the on position. Alternately, if a cassette deck equipped with a 3-head system is connected to the VIDEO2/MONITOR jacks, you will be able to monitor the just-recorded signal while making recordings on the cassette deck. By switching the VIDEO2/MONITOR key on and off, you can compare the sound of the source signal and the just-recorded signal. For more information, refer to the instruction manual of the connected component. To adjust the input level when the monitor function is turned on, use the SOUND key and the MULTI CONTROL key.¢ C D A SP MUTE SWR L S.DIRECT TUNED MEMO.AUTO ST. AUTO SOUND Press again. ¥ If SOURCE DIRECT playback was activated when using a sur- round mode, cancelling it reactivates the previous surround mode. C A SP SW STEREO MONITOR TUNED MEMO.AUTO ST. AUTO SOUND C A PHONES VIDEO 2 / MONITOR INPUT SELECTOR ¥ On the KRF-V5020, this selection can be made using the control on the receiver as well. Make sure the SPEAKERS indicators are turned off. Models other than KRF-V5020 Normal playback When recording a music source, switch the VIDEO2/MONITOR setting to ÒMONITORÓ.8 When copying tapes, switch the VIDEO2/MONITOR setting to ÒMONITORÓ.8 When recording video, switch the VIDEO2/MONITOR setting to ÒVIDEO2Ó.8 KRF-V5020
