Kenwood KRFV 5580 DS Service Manual

Page 2

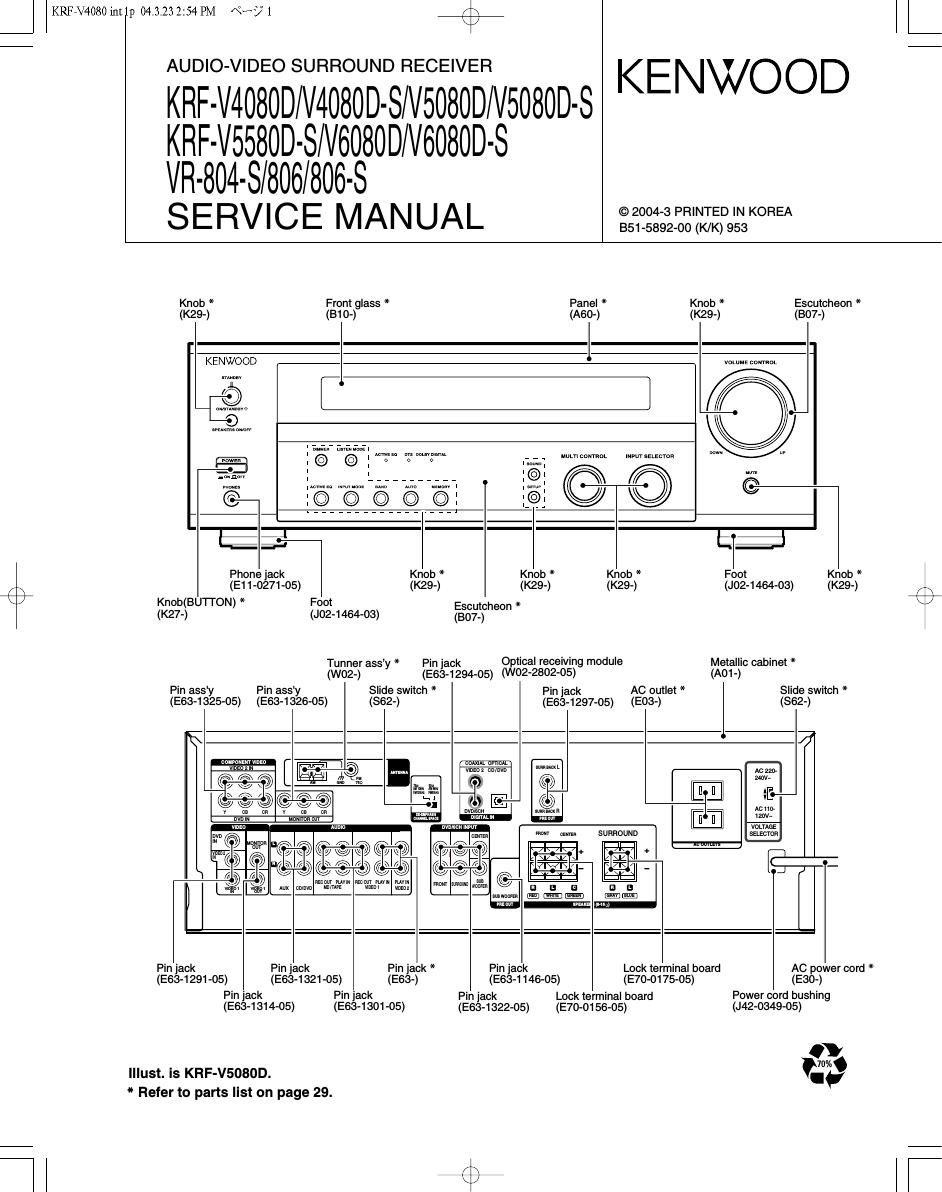

KRFEV4080 int 1}) 04.3.23 2:54 PM «3? 2

KRF-V4080D/V5080D/V5580D-S/V6080D/VR-804-S/806

REMOTE DESTI- REMOTE DESTI-
MODE" PART CONTROL# NATION MODEL PART CONTROL# NATION
m ESE-$83838 0461305 RC-R0627 ES KFIF-V5580D-S A70-1612-05 RC-R0626 X3Y3
U KRFVGOBOD A70-1618-05 RC-R0825 E1
KFIF-V4080D A70-1611-05 RC-R0625 X7 KFlF-V6080D-S E2
KRF-VSOBOD E4 KRF-V6080D Y1
KFIF-VSOBOD-S A70-1613-05 RC-Ft0627 E5 KRF-V6080D-S A70-1617-05 RC-R0824 X2Y2
KFIF-VSOBOD 0461105 RC-R0825 Y4 vn-so4-s A70-1612-05 RC-R0626 K3P3
KFIF-VSOBOD-S X5Y5 vn-sos A o 1 12 0 RC R 2 K1P1
KFIF-V5580D-S A70-1614-05 RC-R0628 E3 VFI-BOB-S 7 6 ' 5 ' 06 6 K2P2

Accessories

ACCESSORIES / CAUTIONS

(

Remote control unit (1)
(See the below table)
FIG-R0625

RC- R0628

REMOTE CONTROL vs MODEL

AM loop antenna (1)
(T90-0893-05)

FM indoor antenna (1)
U.S.A. and Canada

(T90-0905-05)

Batteries (FIG/AA) (2)

AC plug adapter (1)
(E03-0508-00)
I

®x

Use to adapt the plug

on the power cord to the shape
of the wall outlet.

(Accessory only for regions
where use is necessary.)

Cautions

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated,

or shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. If

this happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating

condition.

0 Please note that resetting the microcomputer will clear the contents
of the memory and return the unit to the state it was in when it left

For the U.S.A. and Canada

Unplug the power cord from the wall outlet, then plug
it back in while holding down the POWEFt ON/STANDBY
(bkey.

For other countries

With the power cord plugged in, turn the POWER ONI
OFF key OFF. Then, while holding down the ON/STANDBY

the factory.

Okey, press POWER ONIOFF key.

approximately 1 day.

- Power mode

0 Input selector settings

0 Picture output

0 Speaker ONIOFF

0 Vqume level

0 BASS, TFIEBLE, INPUT level
0 TONE ONIOFF

° LOUDNESS ON/OFF

0 Dimmer level

Memory back up function
Please note that the following items will be deleted from the unit's memory if the power cord is disconnected from the AC outlet for

0 MD/TAPE settings

0 Listen mode setting

0 SP SYSTEM

0 Speaker settings

0 Distance setting

' SUBWOOFER ONIOFF
' SW REMIX ON/OFF

0 Input mode setting

0 Midnight mode setting

0 Broadcast band

0 Frequency setting

0 Preset stations

0 Tuning mode

0 ACTIVE EO mode

0 PRO LOGICII mode
0 DSP mode

0 Left channel level

0 Flight channel level

0 Center channel level

0 Surround channel level

° Surround Back channel level
0 Subwoofer level

0 PANORAMA ON / OFF

0 DIMENSION

0 CENTER WIDTH

0 LFE level
