Kenwood KRFV 5200 DS Service Manual

Extracted text from Kenwood KRFV 5200 DS Service Manual (Ocr-read)

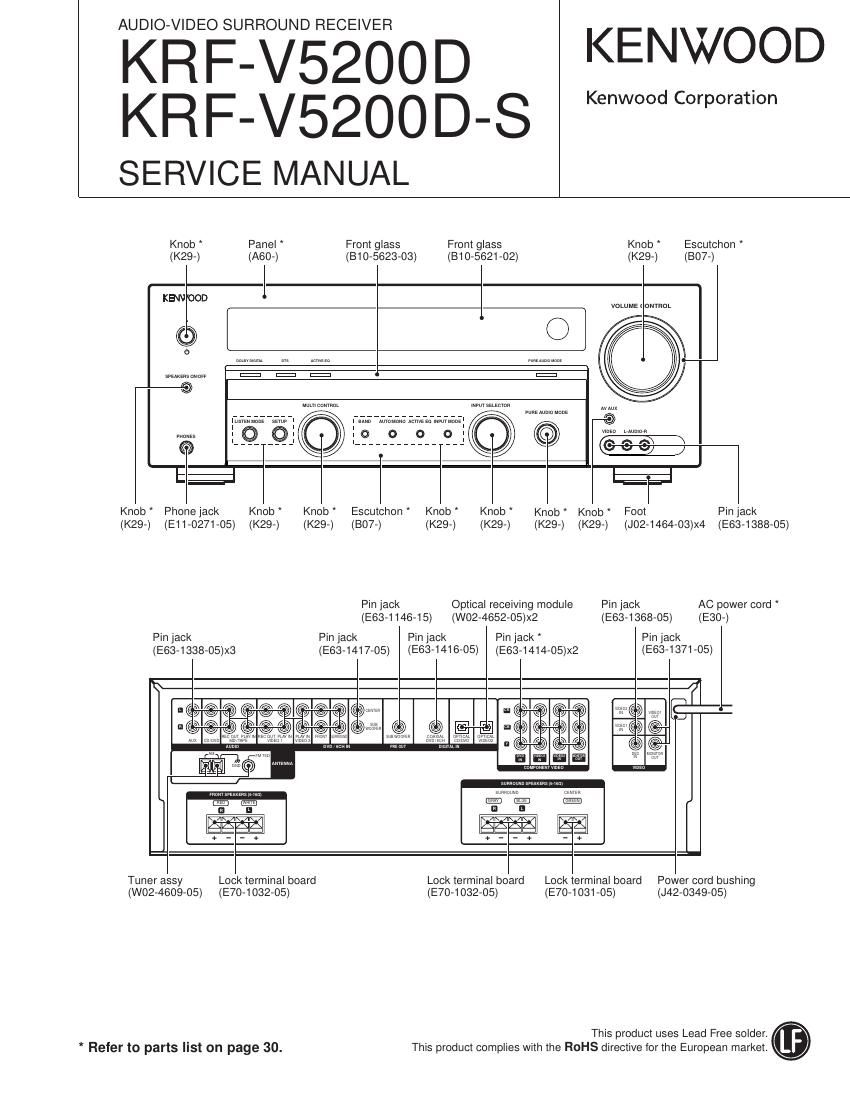

Page 1

KRFV5200 D KENwoov

KR F-V5200 D-S

SERVICE MANUAL

Kenwood Corporation

Knob Escutchon

Knob * Panel Front glass Front glass
(K29-) (A60-) (810-5623-03) (B10-5621-02) (K29-) (807-)
KEWOOD l
mum t ONYROL
t \
w ......... m a .......... .7
0
more»; 131:? WWW A5
DEO LAUNCH
1 O Q 1 CO) @ :fi a
((3 7 7 7 7 7 7 7 7 C V U

t; E;

Knob Phone jack Knob Knob * Escutchon " Knob Knob Knob Knob Foot Pin lack
(K29-) (E11-0271-05) (K29-) (K29-) (807-) (K29-) (K29-) (K29-) (K29-) (J02-1464-O3)x4 (E63-1388-05)
Pin jack Optical receiving module Pin jack AC power cord
(E63-1146-15) (W02-4652-05)x2 (E63-1368-05) (E30-)
Pin jack Pin jack Pin jack Pin jack Pin jack
(E63-1416-05) (E63-1414-05)x2 (E63-1371-05)

(E63-1338-05)x3 (E63-1417-05)

Lock terminal board Power cord bushing

Tuner assy Lock terminal board Lock terminal board
(E70-1032-05) (E70-1031-05) (J42-0349-05)

(W02-4609-05) (E70-1032-05)

This product uses Lead Free solder.
This product complies with the ROHS directive for the European market.

* Refer to parts list on page 30.

Page 2

KRF-V5200D

ACCESSORIES [CAUTIONS

Accessofies

FM indoor antenna (1)
(T90-0877-05)

AM loop antenna (1)
(T90-0893-05)

Remote control unit (1) Batteries (R03) (2)

RC-R0517 (-)
(A70-1719-05)
0000 mm an
egg {Eat l V

Caufions

Information on Disposal of Old Electrical
and Electronic Equipment (applicable for EU
countries that have adopted separate waste
collection systems)

P roducis with the symbol (crossed-out wheeled
bin) cannot be disposed as household waste.
Old electrical and electronic equipment should
be recycled at a facility capable of handling
these items and their waste by products.
Contact your local authority for details in locating a
recycle facility nearest to you.
Proper recycling and waste disposal will help conserve
resources whilst preventing detrimental effects on our
health and the environment.

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be

operated, or shows an erroneous display) if the power

cord is unplugged while the power is ON, or due to

some other external factor. If this happens, execute

the following procedure to reset the microcomputer and

return the unit to its normal operating condition.

While holding down [(1)] key on the unit, unplug the

power cord and plug it back in.

- Please note that resetting the microcomputer will clear
the contents of me memory and return the unit to the
state it was in when it left the factory.

Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic and the double-D symbol are
trademarks of Dolby Laboratories.

"DTS"and "DTS Digital Surround" @dfi

|are registered trademarks of DTS, Digital Surround
nc.

Memory back up function

Please note that the following items will be deleted from
the unit's memory if the power cord is disconnected from
the AC oufietfor approximately 1 day.

' Input selector settings

' Volume level

0 BASS,TREBLE,INPUTIeveI

- TONE ONIOFF

' ACTIVE EQ mode

0 Dimmerlevel

' Speaker settings

0 Sound mode settings

0 Listen mode setting

0 Tuner setting
