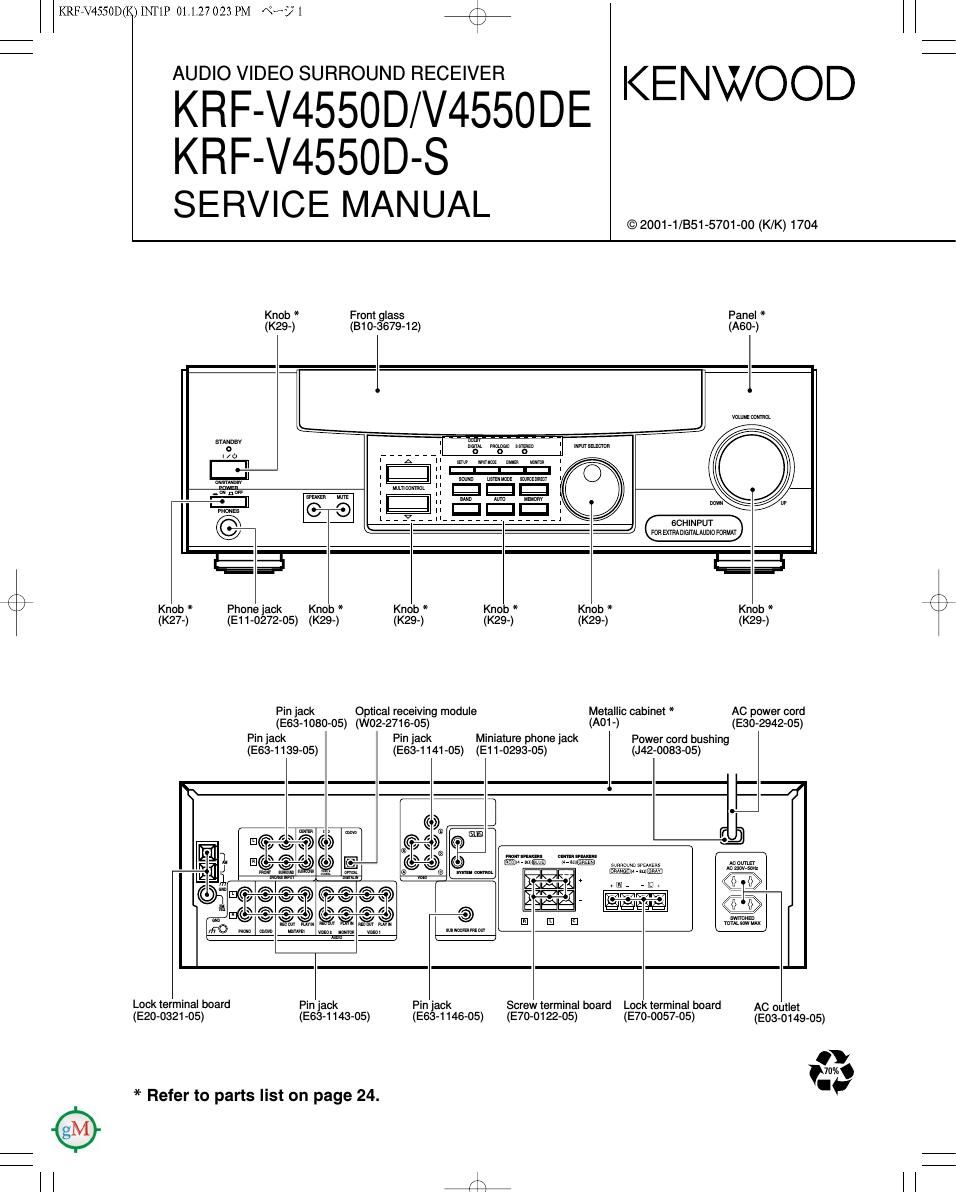

Kenwood KRFV 4550 Service Manual

Page 2

KRF7V4550D(K)INT1P 01 1.27 0:23 PM Nb? 2

r\
\/

KRF-V4550D/V4550DE/V4550D-S

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES ..
BLOCK DIAGRAM .....................
ADJUSTMENT....
PC BOARD .........

allusion)

SCHEMATIC DIAGRAM ..
EXPLODED VIEW ...........
PARTS LIST ..............

SPECIFICATIONS ..... Back cover

Please refer to KRF-V4530D(B51-5597-00) on microprocessor MN101635DRA4(same function as

MN101C35DRA)

Accessories

FM indoor antenna (1)
(T90-0877-05)

AM loop antenna (1)
(T90-0852-05)

Batteries (Re/AA) (2)

Remote control unit (1)
(A70-1470-05): RC-R0513

Battery cover (A09-1178-08)

Resell/g the Microcompuier

The microcomputer may malfunction (unit cannot be operated,

or shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. If

this happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating

condition.

With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ONISTANDBY key,
press POWER.

I Please note that resetting the microcomputer will clear the con-
tents ofthe memon/ and returns the unit to the state it was in when
it left the factory.
