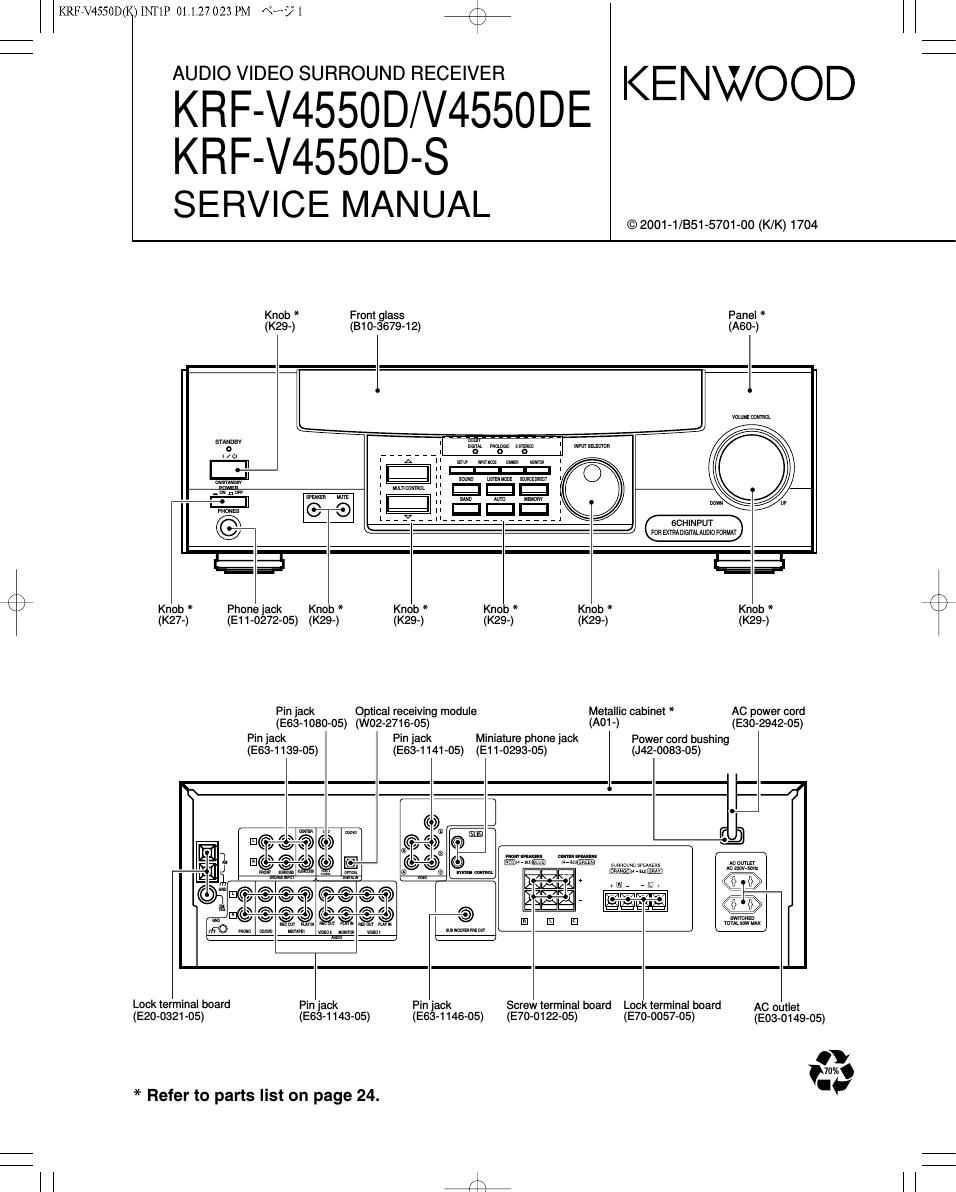

Kenwood KRFV 4550 D Service Manual
This is the 24 pages manual for Kenwood KRFV 4550 D Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRFV 4550 D Service Manual (Ocr-read)
Page 2
KRF7V4550D(K)INT1P 01 1.27 0:23 PM Nb? 2
r\
\/
KRF-V4550D/V4550DE/V4550D-S
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES ..
BLOCK DIAGRAM .....................
ADJUSTMENT....
PC BOARD .........
allusion)
SCHEMATIC DIAGRAM ..
EXPLODED VIEW ...........
PARTS LIST ..............
SPECIFICATIONS ..... Back cover
Please refer to KRF-V4530D(B51-5597-00) on microprocessor MN101635DRA4(same function as
MN101C35DRA)
Accessories
FM indoor antenna (1)
(T90-0877-05)
AM loop antenna (1)
(T90-0852-05)
Batteries (Re/AA) (2)
Remote control unit (1)
(A70-1470-05): RC-R0513
Battery cover (A09-1178-08)
Resell/g the Microcompuier
The microcomputer may malfunction (unit cannot be operated,
or shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. If
this happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating
condition.
With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ONISTANDBY key,
press POWER.
I Please note that resetting the microcomputer will clear the con-
tents ofthe memon/ and returns the unit to the state it was in when
it left the factory.
