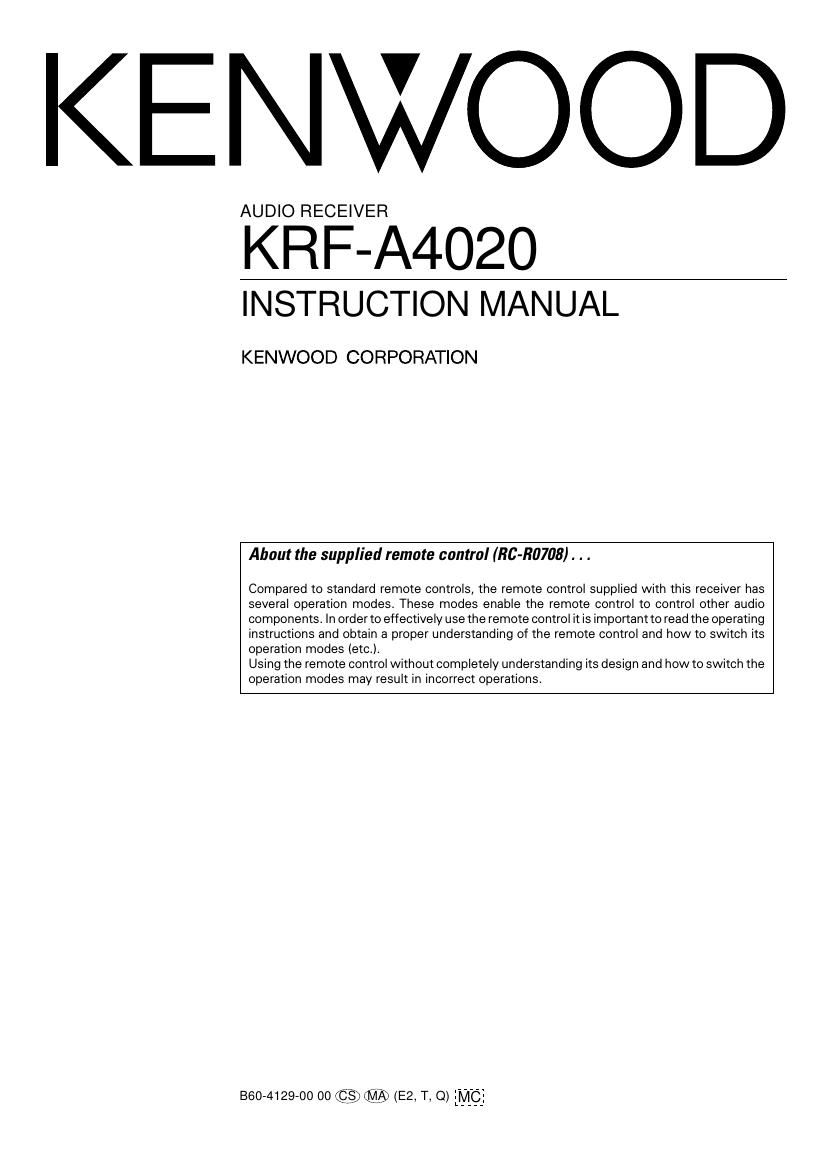

Kenwood KRFA 4020 Owners Manual
This is the 20 pages manual for Kenwood KRFA 4020 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRFA 4020 Owners Manual (Ocr-read)
Page 1
KRF-A4020 (En/E2T) Operations Preparations Other 2 Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and pack- ing materials for use should you transport or ship the unit in the future. Keep this manual handy for future reference. Before applying the power Safety precautions WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Unpacking Accessories FM indoor antenna (1) Loop antenna stand (1) AM loop antenna (1) Batteries (R06/AA) (2) Remote control unit (1) Getting started Units are designed for operation as follows. Europe and U.K. ................................................................. AC 230 V only Russia ................................................................................. AC 220 V only CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS ENCLO- SURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTI- TUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTE- NANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE AC- COMPANYING THE APPLIANCE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution : Read this page carefully to ensure safe operation. How to use this manual This manual is divided in to three sections, Preparations, Operations, and Other. Preparations Shows you how to connect your audio components to the receiver. We've tried to make setting up your system as easy as possible. However, since this receiver works with all of your audio components, connecting the system can be fairly complex. Operations Shows you how to operate the various functions available from the receiver. Other Shows you additional information such as ÒIn case of diffi- cultyÓ (troubleshooting) and ÒSpecifications.Ó Maintenance of the set When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for these agents may cause discoloration. In regard to contact cleaner Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners containing oil, for they may deform the plastic component. For the United Kingdom Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three-pin plug.
Page 2
KRF-A4020 (En/E2T) Operations Preparations Other 3 Contents Getting started ......................................................... 2 Before applying the power ........................................... 2 Safety precautions ........................................................ 2 Unpacking...................................................................... 2 How to use this manual ................................................ 2 Special features ............................................................. 3 Setting up the system ............................................. 4 Connecting audio components ..................................... 4 Connecting the antennas .............................................. 5 Connecting the speakers .............................................. 5 Connecting the system control .................................... 6 Names and functions of parts .............................. 7 Main unit ....................................................................... 7 Remote control unit ...................................................... 8 Preparing the remote control ........................................ 9 Normal playback ................................................... 10 Preparing for playback ................................................. 10 Listening to a source component ............................... 10 Adjusting the sound .................................................... 11 Recording ............................................................... 12 Recording audio .......................................................... 12 Listening to radio broadcasts ............................. 13 Tuning (non-RDS) radio stations ................................. 13 Using RDS (Radio Data System) ................................. 13 Using the DISPLAY key .............................................. 14 Presetting RDS stations13 (RDS AUTO MEMORY) ........................................... 14 Presetting radio stations manually .............................. 15 Receiving preset stations ........................................... 15 Receiving preset stations in order (P.CALL) ............... 15 Tuning by program type (PTY search) ........................ 16 Reserving the desired information ............................. 16 In case of difficulty ............................................... 18 Specifications ....................................................... 20 Caution : Read the pages marked carefully to ensure safe operation. Special features MONITOR The TAPE2/MONITOR jacks of this unit accept the connec- tion of a cassette deck, graphic equalizer, surround proces- sor, etc. When a 3-head cassette deck is connected to the TAPE2/MONITOR jacks, it is possible to monitor the sound which has just been recorded during recording. @ Station preset This unit incorporates a function for storing received stations in preset memory with a simple operation. It is very conve- nient to preset the stations you like. The preset stations can be recalled also very easily. $ RDS (Radio Data System) tuner # The receiver is equipped with a RDS tuner that provides several convenient tuning functions: RDS Auto Memory to automati- cally preset up to 30 stations including RDS broadcasting different programs and ordinary FM stations; station name display to show you the name of the current broadcast station; and PTY Search to let you tune stations by program type. PTY (Program TYpe) search Lets you tune stations by specifying the type of program you want to hear. EON (Enhanced Other Networks) reservation The EON function lets you monitor information on other stations so you can receive traffic or news programs as soon as they are broadcast, even they are broadcast on a station different from the one you are currently listening to. When the broadcast ends, the receiver returns to the original station. When listening to KENWOOD source components connected with system control cords, the input selector on the receiver automatically switches to the tuner when a program you desire is broadcast. Remote controllable audio function By connecting KENWOOD source components such as a cassette deck and CD player through system control connec- tion, the basic operations of these components can be con- trolled from the remote control unit provided with this unit. A single remote control unit can control the entire audio system easily. New ÒTRAITÒ transistor The new developed ÒTRAITÓ transistor with extremely supe- rior temperature characteristics is used in this amplifierÔs amplification circuit. Through the use of this transistor, distor- tion generated because of temperature change is kept to a minimum resulting in ÒpureÓ sound reproduction. Getting started Preparations Operations Other
Page 9
KRF-A4020 (En/E2T) Operations Preparations Other 10 Preparing for playback Some preparatory steps are needed before starting playback. Turning on the receiver 1Turn on the POWER key to ON. 2Turn on the power to this receiver by pressing ON/ STANDBY ( ) key. Selecting MD/TAPE 1 (Main unit only) Select the source name corresponding to the component connected to the MD/TAPE1 jacks. The initial factory setting is ÒTAPE 1Ó. To change the source name associated with the MD/TAPE1 jacks to ÒMDÓ, follow the steps below: 1Use the INPUT SELECTOR knob to select ÒTAPE 1Ó. 2Hold down the AUTO key for more than 2 seconds. ¥ The source indication changes to ÒMDÓ. ¥ To return to the original indication, repeat the above procedure. Selecting the speaker system Press the SPEAKERS A or B key to select the speaker system to be used. A ON: Sound from the speakers connected to the SPEAKERS A terminals on the rear panel. B ON: Sound from the speakers connected to the SPEAKERS B terminals on the rear panel. A+B ON: Sound from both the speakers connected to the SPEAKERS A and B terminals on the rear panel. A+B OFF: No sound from the speakers. Use this setting when listening with headphones. Listening to a source component 1 Use the input selector (INPUT SELECTOR) to select the source you want to listen to. The input sources change as shown below: Selecting a source using the INPUT SELECTOR knob 1TUNER (frequency display) 2ÒCDÓ 3ÒTAPE 1Ó or ÒMDÓ 4ÒPHONOÓ 5ÒAUXÓ ¥ When selecting an input source by using the remote control , press the desired input selector key. ¥ The INPUT SELECTOR on the front panel of the receiver always cycles through all inputs. 2 Start playback from the selected source. 3 Use the VOLUME CONTROL (VOLUME UP , DOWN) to adjust the volume. ¥ The sound of input source cannot be listened to with TAPE2/MONITOR is ON. The indicator for the speakers you want to use should be lit. Normal playback SP. AB INPUT SELECTOR MULTI CONTROL MULTI CONTROL BASS BOOST BASS BOOST SOUND BALANCE SOUND SPEAKERS A B MUTE POWER POWER ON/STANDBY AUTO MUTE SOURCE DIRECT S. DIRECT BALANCE VOLUME UP, DOWN VOLUME CONTROL
