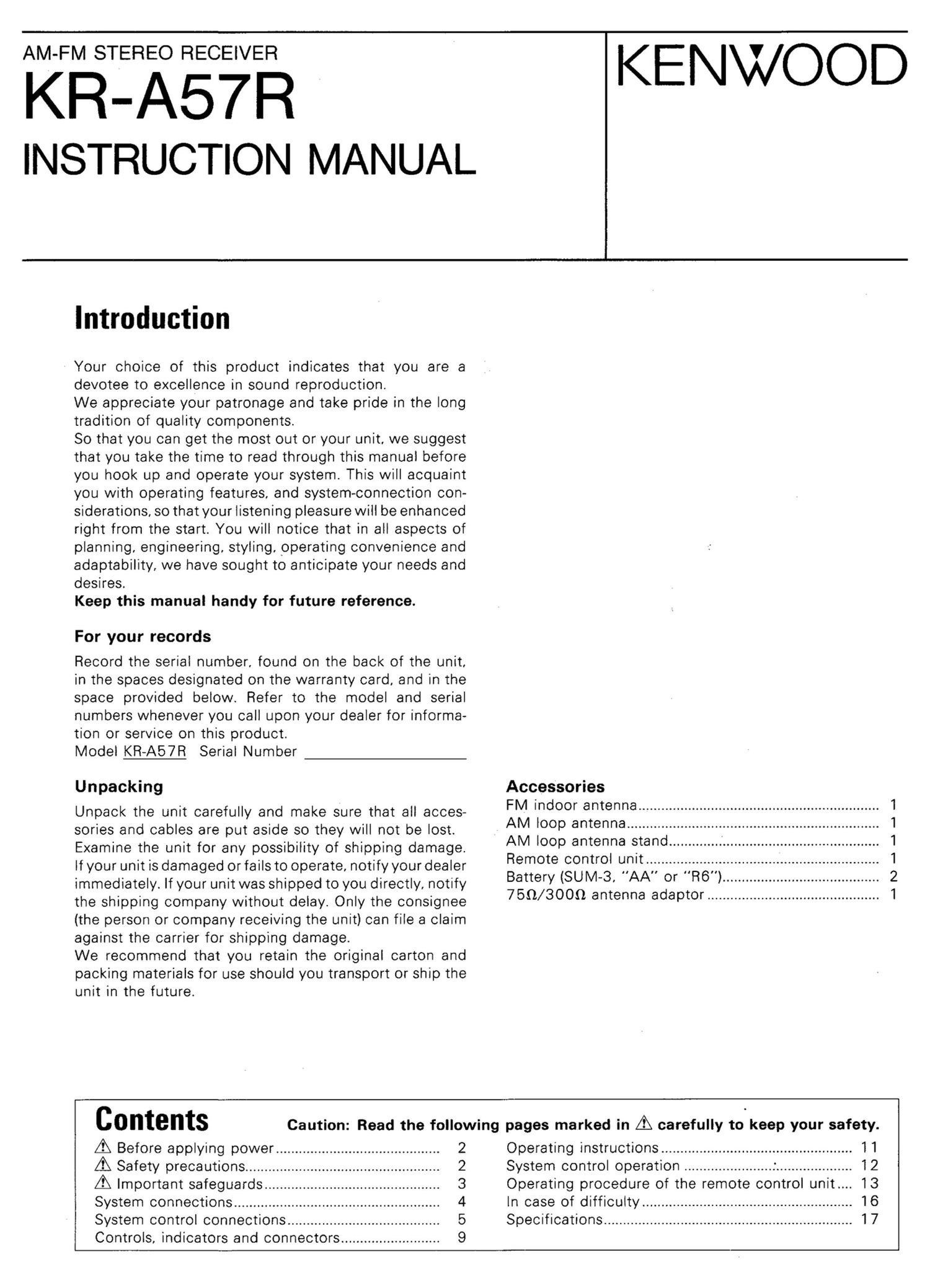

AM-FM STEREO RECEIVER

KR-A57R

INSTRUCTION MANUAL

KENWOOD

Introduction

Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.

We appreciate your patronage and take pride in the long
tradition of quality components.

So that you can get the most out or your unit, we suggest
that you take the time to read through this manual before
you hook up and operate your system. This will acquaint
you with operating features, and system-connection con-
siderations, so that your listening pleasure will be enhanced
right from the start. You will notice that in all aspects of
planning, engineering, styling. operating convenience and
adaptability, we have sought to anticipate your needs and
desires.

Keep this manual handy for future reference.

For your records

Record the serial number, f0und on the back of the unit.
in the spaces designated on the warranty card. and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.

Model KR-A57R Serial Number

Unpacking Accessories

Unpack the unit carefully and make sure that a acces- FM Indoor antenna ............................................................... 1

sories and cables are put aside so they will not be lost. AM lOOp antenna ......................... . ......................................... 1

Examine the unit for any pOSSibNity Of Shipping damage. AM IOOp antenna Stand ....................................................... 1

lfyour unit is damaged orfailsto operate, notify your dealer Remote control LPN... """" ;; """ ;; """""""""""""""""""""" 1

immediately. If your unitwas shipped to you directly, notify Battery (SUM-3, AA or R6 ) ......................................... 2

the shipping company without delay. Only the consignee 750/3000 antenna adaptor ............................................. 1

(the person or company receiving the unit) can file a claim

against the carrier for shipping damage.

We recommend that you retain the original carton and

packing materials for use should you transport or ship the

unit in the future.
contents Caution: Read the following pages marked in A carefully to keep your safety.
A Before applying power ........................................... 2 Operating instructions .................................................. 1 1

Safety precautions ................................................... 2 System control Operation .................... 12

A Important safeguards .............................................. 3 Operating procedure of the remote control unit.... 13
System connections ...................................................... 4 In case of difficulty ....................................................... 16
System control connections ........................................ 5 Specifications ................................................................. 17
Controls, indicators and connectors .......................... 9
