Kenwood KRA 5080 Service Manual
This is the 78 pages manual for Kenwood KRA 5080 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRA 5080 Service Manual (Ocr-read)

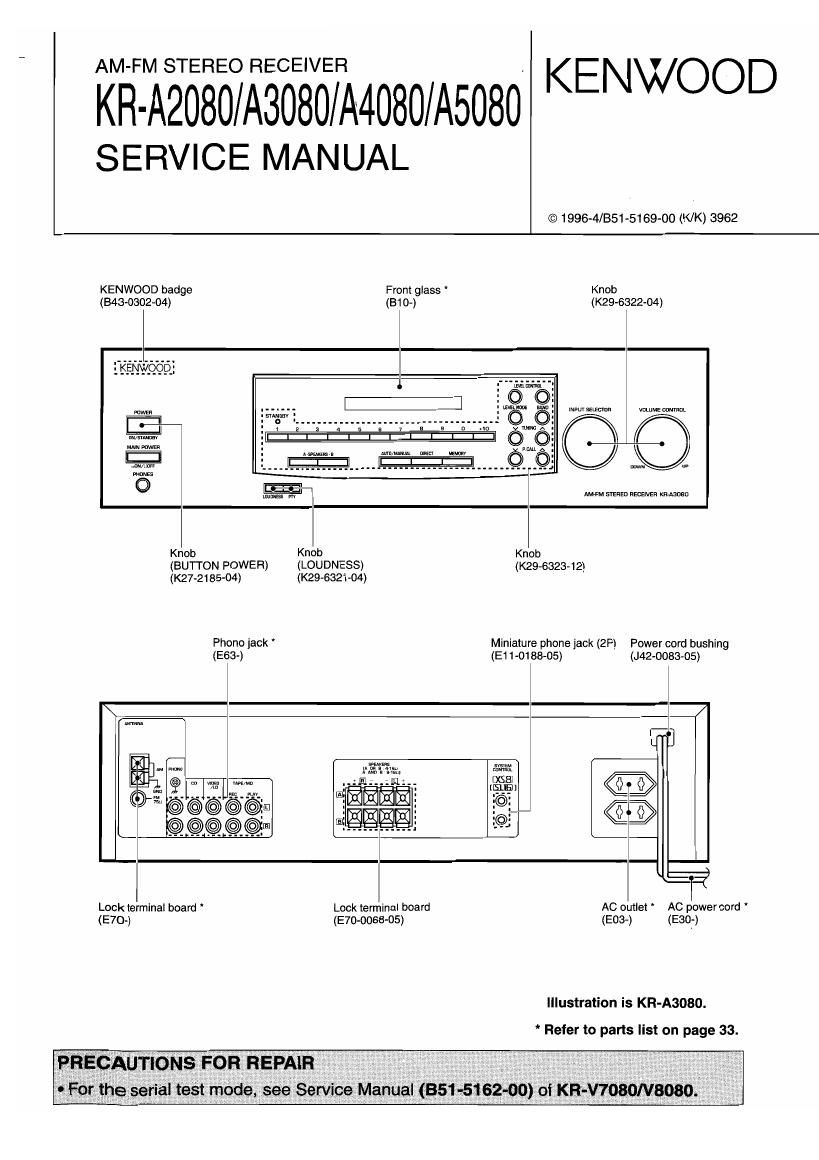

Page 1
RMRiiZT5§B7K§BEéV5/7l4080/A5080 KENWOOD
SERVICE MANUAL
© 1996-4/351-5169-00 (K/K) 3962
KENWOOD badge Front glass " Knob
(343-0302-04) (310-) (K29-6322-04)
KENWOOD
LEM: m mm mum NEDEWER Human
Knob Knob Knob
(BUTTON POWER) (LOUDNESS) (K29-6323-12)
(K27-2185-04) (K29-6321-04)
Phono iack * Miniature phone jack (2P) Power cord bushing
(E63-) (E1 1-0188-05) (J42-0083-05)
A
_
\
Lock terminal board AC outlet " AC power cord
(E03-) (E30-)
Lock terminal board
(E70-0068-05)
(E70-)
Illustration is KR-A3080.
* Refer to parts list on page 33.
Page 2
KR-A2080/A3080/A4080/A5080
CONTENTS / ACCESSORIES / CONTROL
Contents
CONTENTS/ACCESSORIES / CAUTION 2 WIRING DIAGRAM
REMOTE CONTROL UNIT... 3 PC BOARD ..............
EXTERNAL VIEW ................ 4 SCHEMATIC DIAGRAM. . 19
DISASSEMBLY FOR REPAIR . 5 EXPLODED VIEW .31
BLOCK DIAGRAM ............ 6 PARTS LIST ..........
CIRCUIT DESCRIPTION 7 SPECIFICATIONS
ADJUSTMENT ...................... .. 13
Accessofies
.. ..... AM loop antenna (1) """"""""""""""""1
(T 90-01 95-05) Loop antenna stand (1) FM indoor antenna ( 1)
(J19-3645-05) (T 90-0301 -05) K,P,M,C.X
(T90-0810-05) T,E
L
AC plug adapter (1) ' Use to adapt the plug on the power
(E03-0115-05) cord to the shape of the wall outlet.
(Accessory only for regions where use
is necessary.)
Caution
SWITCHING FHOM[XS8] TO [SL 16]
You can easily change the system control mode with the following operation. Do this operation after completing allconnec-
tions.
Switching to [ SL16] : Hold down the AUTO key and switch the MAIN POWER key from OFF to ON.
Switching back to [ X88] : Hold down the BAND key and switch the MAIN POWER key from OFF to ON.
' This operation will not affect items stored in the memory.
Note : The system control mode will revert to [ X88] if the unit is not turned on lor three consecutive days. If you would like
to make the unit completely (and permanently) [ SL16 ]compatible, please consult your nearest retailer orthe Ken-
wood Marketing Department.
' There is the U-Com (hard) match method.
