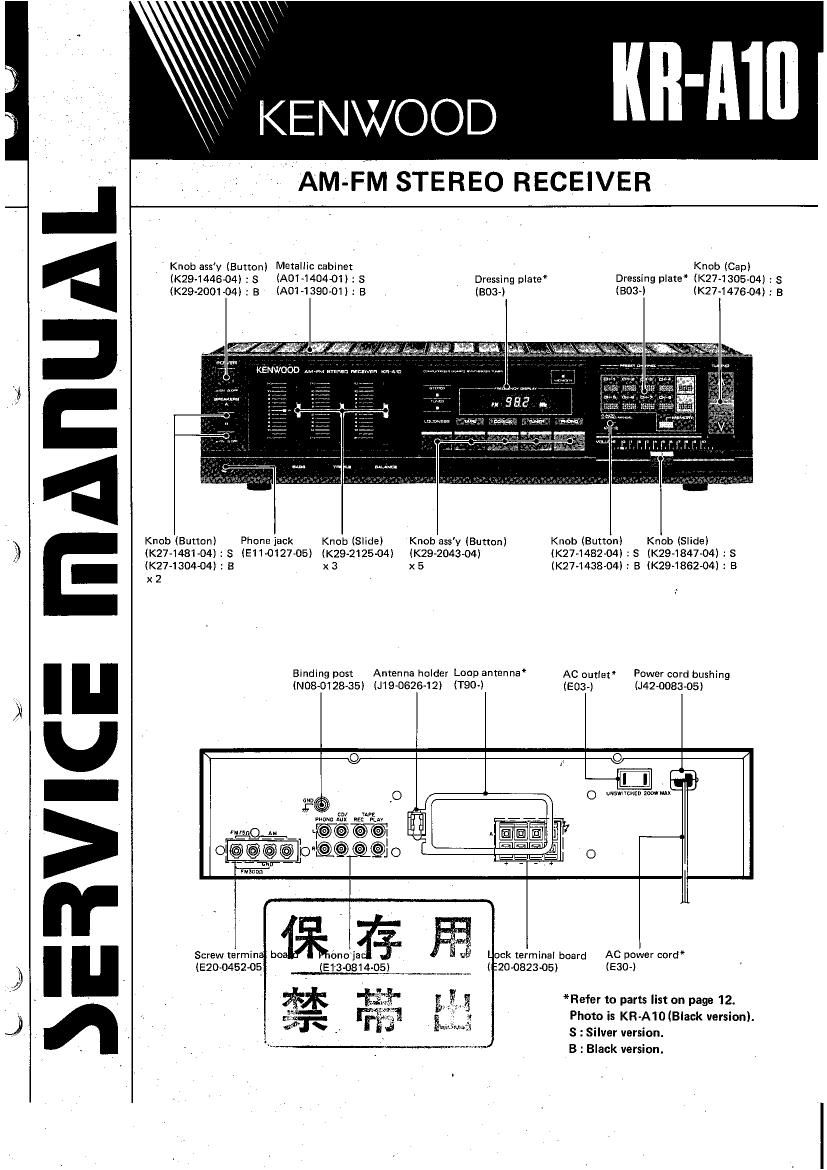

Kenwood KRA 10 Service Manual
This is the 35 pages manual for Kenwood KRA 10 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KRA 10 Service Manual (Ocr-read)
Page 2
Ml
.DISASSEMBLY FOR REPAIR? '
DISASSEMBLY FOR REPAIR r.)
"1. Remove 8 screws ( o ) and remove the metallic cabinet 4. To replace Components on the switch pc board, first
- (e ). . ' 4 __ v . release the pc board from the unit holder first ( 6,6).
Note: Beaware that the metallic cabinet is hooked to the 5. Pull the pc board up (. 0) and remove 5 screws retain-
top of the front panel. ' ing the pc board ( e ). Release the pc board from the
2. Remove 1 screw from the mounting hardware of the pawls and take the pc board out from the front panel
fusepc board(e). (°,®).
3. Take the pc board up (0 ). Now the fuse can be re-
placed
\../'
