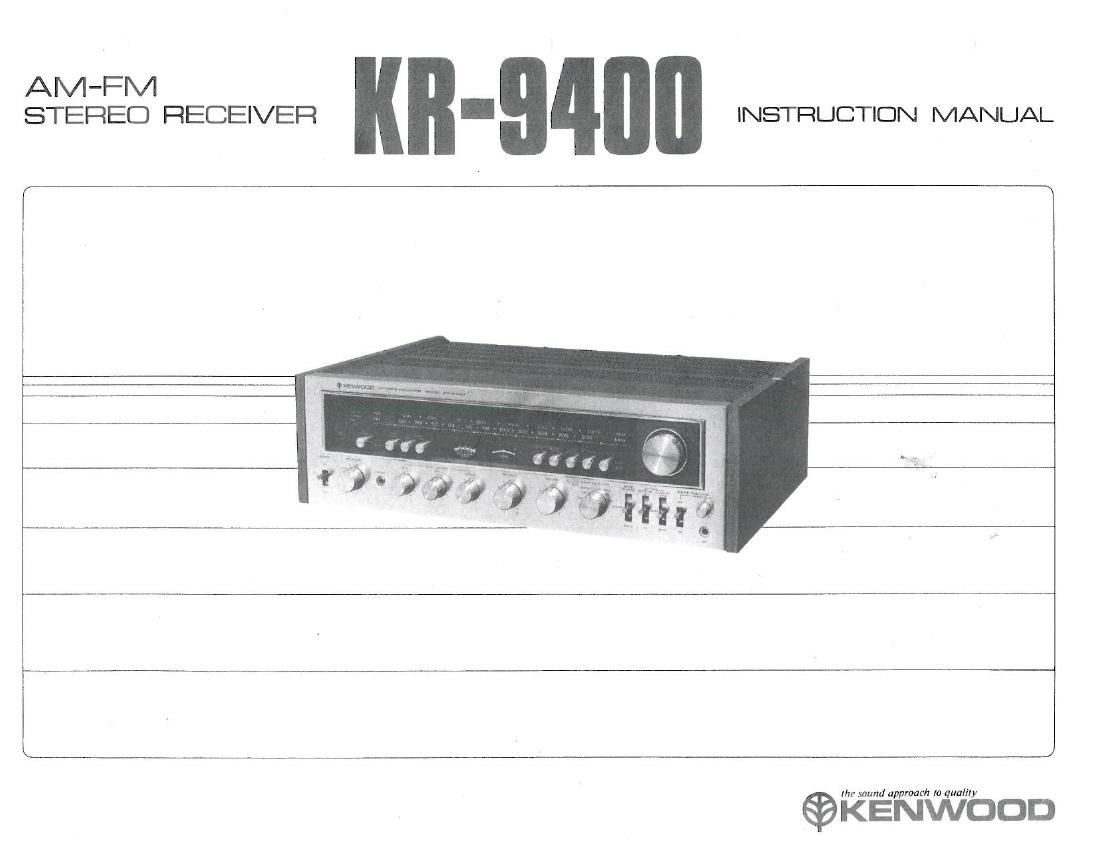

Kenwood KR 9400 Owners Manual

Page 2

INTRODUCTION

Thank you for purchasing our receiver. Because we take great pride In the long tra-
dition of quality components the name Kenwood receiver places you in a distinguished
family of connolsseurs of superb high-fidelltv sound reproduction

The purpose of this manual :5 to acquaint you with the operating features of your
new receiver. You wrll notice that in every detail of planning, engineering. styling. open
ating convenience. and adaptability. we have sought to antrcrpate your needs and desrres

We suggest that you read this manual carefully. Knowmg how to set up your re-
ceiver. to the best advantage. Wlll enchance your listening pleasure right from the start
You Wl also become aware of the ease wrth which you can adiust your receiver to meet

your speCIal requirements
Turn the pages and become acouianted With the excrting features of your new re-
ceiver features that Will remain new for endless hours of listening pleasure

MAINTENANCE

CONCERNING TRANSISTORS

Transistors differ fundamentally from radio vacuum tubes and
require special attention to ensure their full performance capabili»
ties. Given proper care. transistors will provide years of practically
troublefree performance,

(a) Avoid locations subject to direct sunlight,
(b) Avoid high or low temperature extremes.
(C) Keep the receiver away from heat radiating sources.

PROTECTION CIRCUIT

The newly developed protection circuit is completely effective
and prevents damage which may be caused by short-circuiting at
the speaker terminals or the power output circuit of the receiver.
When a short-circuit occurs, this protection circuit will function
automatically to protect the power output transistors. If the pow-
er output transistor fails, this protection circuit will function auto-
matically to protect the speakers.

NOTES

1. Units shipped to the USA. and CANADA are designed
to be operated with 120 volts AC only. Units shipped
to the Scandinavian countries are designed to be oper-
ated with 220 volts AC only. Therefore the above
units are not equipped with an AC Voltage Selector
Switch so all reference to such a switch throughout
this manual should be disregarded.

2. Units shipped to all other countries are equipped with
an AC Voltage Selector Switch on the rear panel that
is preset at the factory to the rvoltage generally availa-
ble in the destination area.

It is very important, however, to check the Voltage
Selector Switch setting and make sure that it corre-
sponds to your line voltage before connection the
power cord into an AC outlet. If the Voltage Selec-
tor requires re-setting. follow the directions outlined

on page 13.
CONTENTS
FEATURES ..... 3
INTERCONNECTING DIAGRAM ....................................... 4
CONNECTING INSTRUCTIONS ........................................ 5
CONTROLS AND THEIR FUNCTIONS ............................. 8
OPERATING INSTRUCTIONS ........................................... 10
TROUBLE SHOOTING 14
SPECIFICATIONS ............................................................. 16

Dolby Is a Trade Mark of Dolby Laboratories. Inc
