Page 1

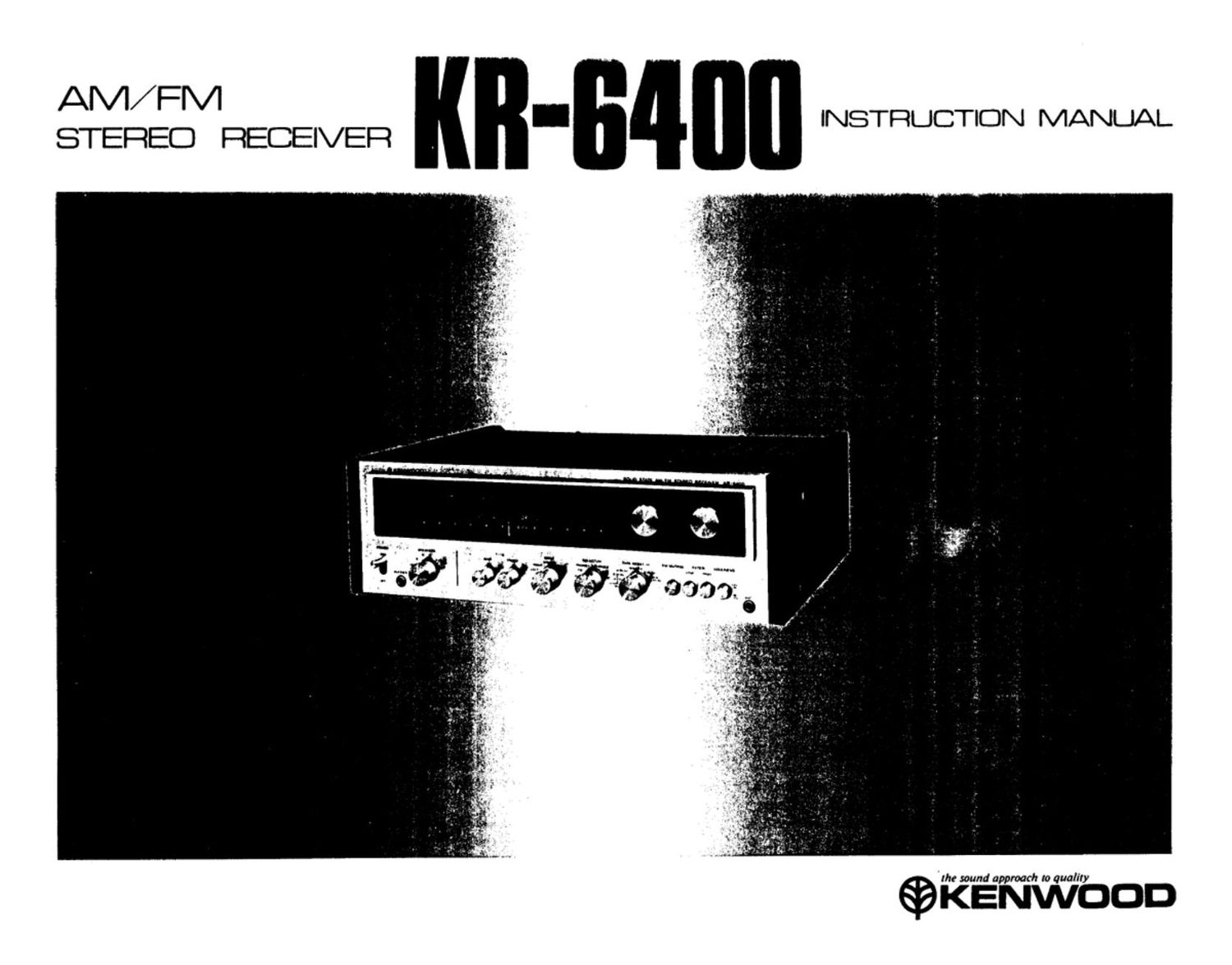

AlVI/FIVI
STEREO RECEIVER Kn-Bqnn INSTRUCTION MANUAL.

© the sound approach to qualily

Page 2

INTRODUCTION

Because Kenwood Electronics, Inc., takes great pride in the long tradition of quality
components the name Kenwood represents, your purchase of a Kenwood receiver places
you in a distinguished family of connoisseurs of superb high-fidelity sound reproduction.

The purpose of this manual is to acquaint you with the operating features of your
new receiver. You will notice that in every detail of planning, engineering, styling, operat-
ing convenience, and adaptability, we have sought to anticipate your needs and desires.

We suggest that you read this manual carefully. Knowing how to set up your receiv
er, to the best advantage, will enhance your listening pleasure right from the start. You
will also become aware of the ease with which you can adjust your receiver to meet your

special requirements.

Turn the pages and become acquainted with the exciting features of your new receiv.
er features that will remain new for endless hours of listenig pleasure.

CONTENTS

KR-64OO FEATURES ................. 3
INTERCONNECTING DIAGRAM ......... 4
CONNECTING YOUR KRv64OO .......... 5
CONTROLS AND THEIR FUNCTIONS ..... 8

NOTES

' Units shipped to the U.S.A. and CANADA are designed to
be operated with 120 volts AC only. Units shipped to the
Scandinavian countries are designed to be operated with 220
volts AC only. Therefore the above units are not equipped with
an AC Voltage Selector Switch so all reference to such a switch
throughout this manual shouId be disregarded.

" Units shipped to all other countries are equipped with an
AC Voltage Selector Switch on the rear panel that is preset at

OPERATING INSTRUCTIONS ........... 10
MAINTENANCE ..................... 12
KR-6400 SPECIFICATIONS ............. 13
TROUBLE SHOOTING ................ 14

the factory to the voltage generally available in the destination
area.

CAUTION: It is very important however. to check the Voltage
Selector Switch setting and make sure that it corresponds to
your line voltage before connection the power cord into an AC
outlet. If the Voltage Selector requires re-setting, follow the
directions outlined on page 12.
