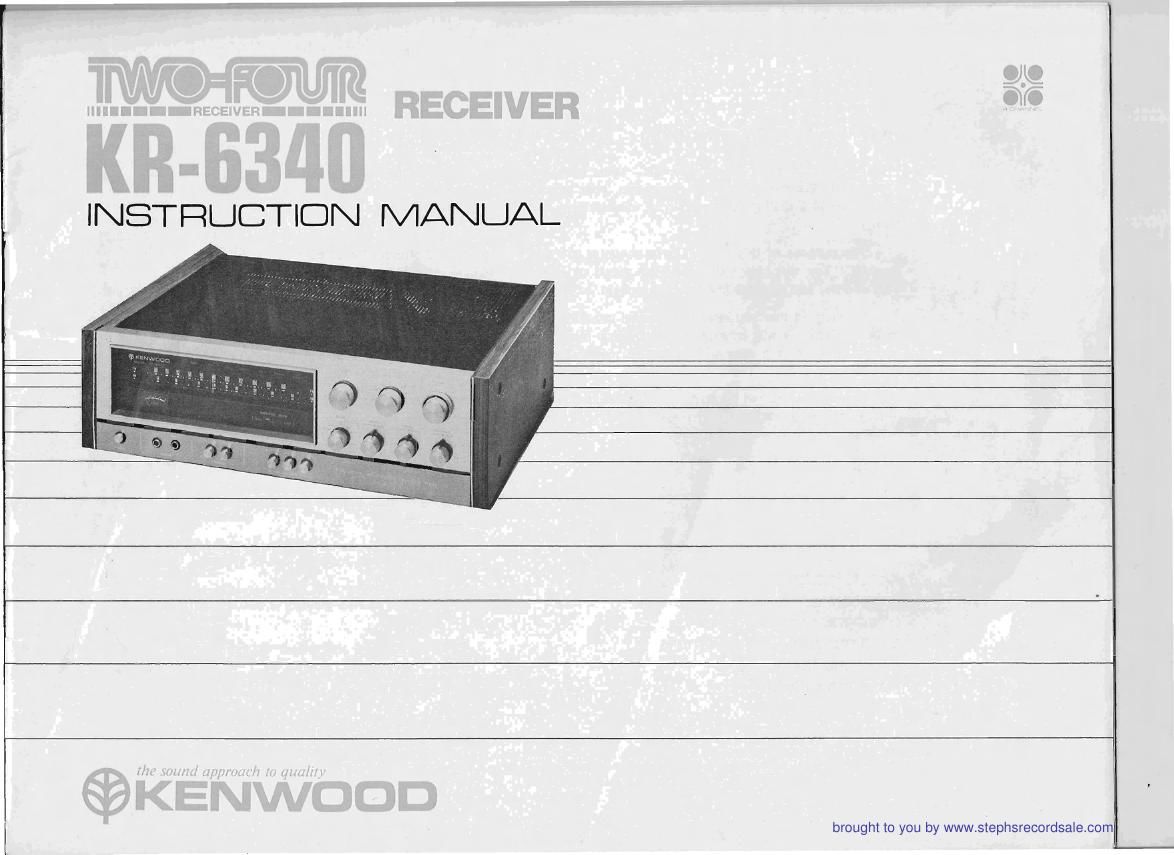

Kenwood KR 6340 Owners Manual
This is the 23 pages manual for Kenwood KR 6340 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KR 6340 Owners Manual (Ocr-read)
Page 1
Because Kenwood Electronics,Inc.,takes great pride in the long tradition of quality components the name Kenwood represents,your purchase of a Kenwood two-four receiver places you in a distinguished family of connoisseurs of superb high-fidelity sound reproduc- tion. The purpose of this manual isto acquaint you with the operating features of yournew receiver. You will notice that in every detail of planning, engineering, styling, operating convenience, and adaptability, we have soughttoanticipate your needs and desires. We suggest that you read this manual carefully. Knowing how to set up your receiver to best advantage will enhance your listening pleasure right from the start. You willalso become awareof the ease with whichyoucan adjust your receiver to meet your special requirements. Turn the pages and become acquaintedwith theexciting features of your new receiver, features that will remain new forendless hours of listening pleasure. KR-6340 FEATURES 3 INTERCONNECTING DIAGRAM 4 CONNECTING YOUR KR-6340 5 CONTROLS AND THEIR FUNCTIONS 8 OPERATING INSTRUCTIONS 10 RM/SQ/CD-4 INTRODUCTION 12 MAINTENANCE 13 TROUBLE SHOOTING 14 KR-6340 SPECIFICATIONS 16 brought to you by www.stephsrecordsale.com
Page 2
KR.6340 FEATURES 1. The KR-6340 can function as a two or four channel receiver. It has a built-in RM type (regular matrix), and SQ type decoders so that it is capable of reproducing both RM and SQ encoded discs, tapes and FM broadcasts in brilliant quadraphonic sound through four speakers. The RM decoder enhances conventional stereoprograms by decoding theambience found in most stereo programs and applying it to therear speakers. This receiver can also reproduce discrete 4-channel tapes, and CD-4 discrete discs too, in conjunction with the CD-4 demodulator KCD-2 (optional) which can be simply plugged into it. 2. The KR-6340 has four amplifiers. As a 4-channel receiverthese amplifiers are made to work separately, each drivingone of the four speakers when the AMP CONTROL switch (rear panel) is set to 4CH position. Power per channel is then 15 watts into 8 ohms at 20 - 20,000 Hz. As a 2-channel receiver, the amplifiersare made to work in pairs and are capable of driving 40 watts per channel into 8ohms at 20 - 20,000 Hz, when the AMP CONTROL switch is set to 2CH. 3. The semi·complementary directly coupled power amplifiershave wideband and low distortion characteristics which ensure smooth, high fidelity amplification. 4. Tone, Balance and Volume controls are designed to permit fine adjustments of 4-channel sound to suit various program sources and listening conditions. 5. Two pairs ofspeakers connecting terminalsareavailable topermit simultaneous listening at two different places. 6. A Double Switching Demodulator (DSD) is used in the MPX section. This DSD method isused to prevent carrier leaksand ensure best sound quality. 8. This receiveris equipped with FM Detector Output jack to enable reception of FM discrete 4-channel broadcasts when this becomes a reality. Do not connect the power cord to the AC outlet, before ascertaining that the position of AC Voltage Selector Switch on the rear panel corresponds with your line voltage. (see page 13.) brought to you by www.stephsrecordsale.com
Page 17
A Product of TRIO ELECTRONICS, INC., TOKYO. JAPAN. brought to you by www.stephsrecordsale.com
