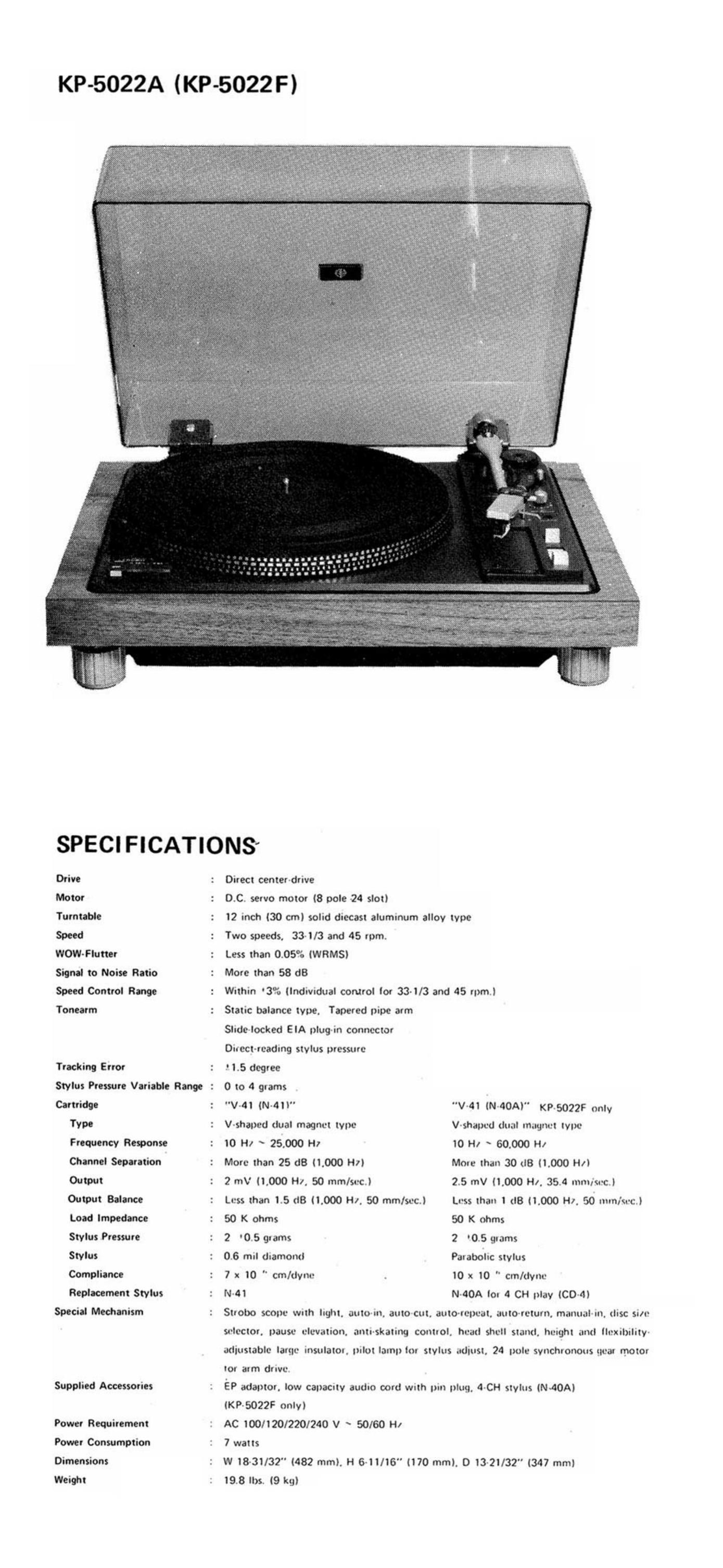

KP-5022A (KP-5022F)

SPECIFICATIONS

Drive : Direct center-drive

Motor : D.C. servo motor (8 pole 24 slot)

Turntable : 12 inch (30 cm) solid diecast aluminum alloy type
Speed : Two speeds. 33-1/3 and 45 rpm.

WOW-Flutter : Less than 0.05% (WRMSl

More than 58 68
Within '3?» (individual control (or 334/3 and 45 rpm.)

Signal to Noise Ratio
Speed Control Range

..

Tonearm : Static balance type, Tapered pipe arm
Slide-locked EIA plug-in connector
Direct-reading stylus pressure

Tracking Error : 91.5 degree

Stylus Pressure Variable Range : 0 to 4 grams

Cartridge : "V-4l (N-4ll" "V41 (N-4OA)" KP.5022F only

Type : Vshaped dual magnet type V-shaped dual magnet type

Frequency Response : 10 HI ~ 25.000 H7 10 HI ~ 60.000 Hr

Channel Separation : More than 25 d8 (1,000 H7) More than 30 d8 (1.000 H/l

Output : 2 mV (1.000 H1. 50 mm/scc.) 2.5 mV (1,000 HI. 35.4 mnnsucl
Output Balance : Less than 1.5 68 (1,000 l-ll, 50 mm/suc.) Less than 1 (l8 (1,000 HI, 50 nun/sec.)
Load Impedance : 50 K ohms 50 K ohms

Stylus Pressure : 2 '05 grams 2 '05 grams

Stylus : 0.6 mil diamond Parabolic stylus

Compliance : 7 x 10 " cmldync . 10 x to " cm/dynt:

Replacement Stylus : Isl-41 N-40A lot 4 CH play (CD4)

Special Mechanism : Strobo scope with light, cutout, autocut. auto~rcpcat. auto-return, mandolin. disc sin!
selector, pause elevation, anti-skating control, head shell stand, height and llnxibility
adjustable large insulator, pilot lamp (or stylus adjust, 24 pole synchronous near motor
Ior arm drive,

Supplied Accessories : EP adaptor, low capacrty audio cord with pin plug, 404 stylus (NADA)

(KP~5022F only)

Power Requirement : AC 100/120/220/240 V 50/60 H/

Power Consumption : 7 watts

Dimensions : W 18-31/32" (482 mm). H 6-11/16" (170 mm). D 13-21/32" (347 mml

Weight ; 19.8 lbs. (9 kg)
