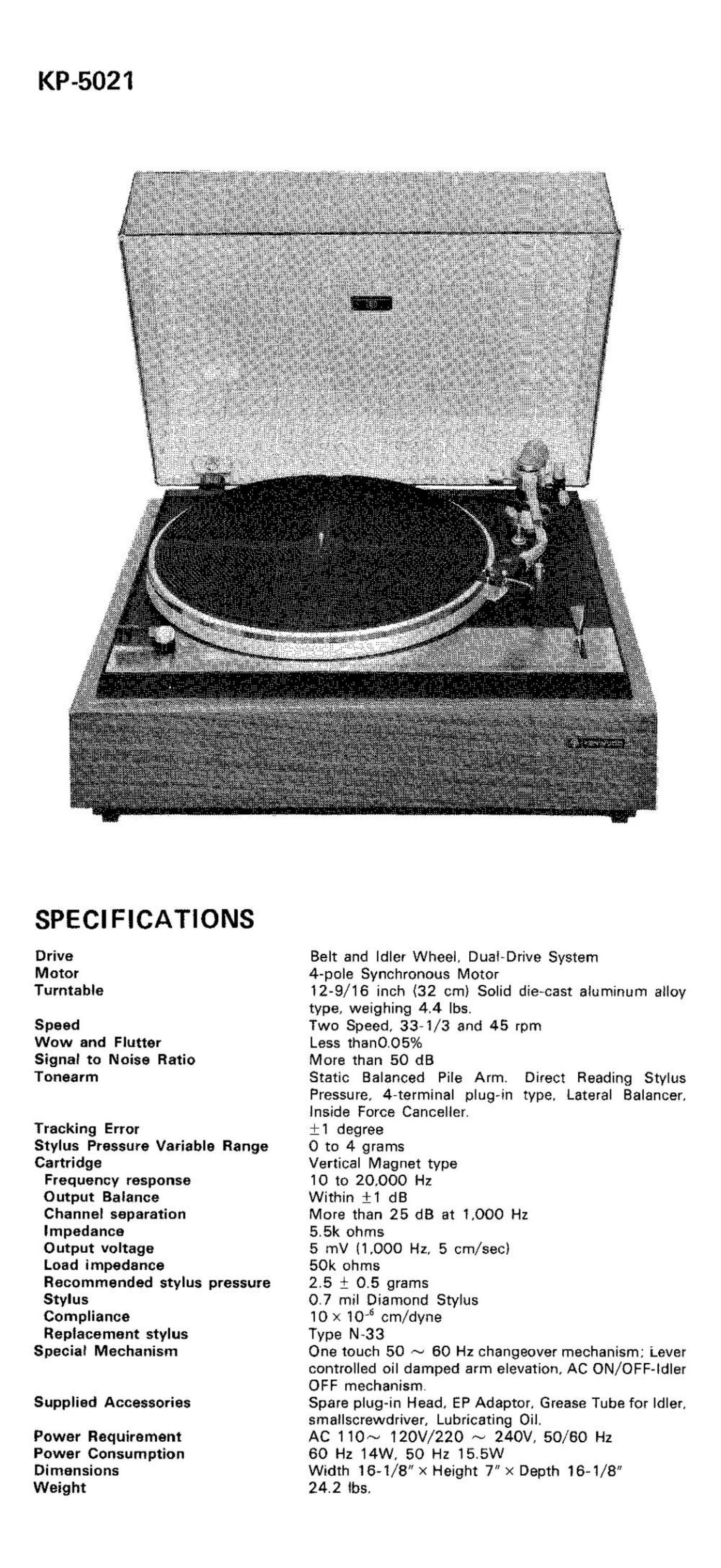

Page 1
KP -502 1
SPECIFICATIONS
Drive
Motor
Turntable
Speed
Wow and Flutter
Signal to Noise Ratio
Tonearm
Tracking Error
Stylus Pressure Variable Range
Cartridge
Frequency response
Output Balance
Channel separation
Impedance
Output voltage
Load impedance
Recommended stylus pressure
Stylus
Compliance
Replacement stylus
Belt and Idler Wheel, Duai-Drive System
4-pole Synchronous MotOr
12-9/16 inch (32 cm} Solid die-cast aluminum alloy
type, weighing 4.4 lbs.
Two Speed, 33-1/3 and 45 rpm
Less than0.05%
More than 50 dB
Static Balanced Pile Arm. Direct Reading Stylus
Pressure, 4-terminal plugrin type. Lateral Balancer.
Inside Force Canceller.
i1 degree
0 to 4 grams
Vertical Magnet type
10 to 20,000 Hz
Within i1 dB
More than 25 dB at 1.000 Hz
5.5k ohms
5 mV (1,000 Hz, 5 cm/sec)
50k ohms
2.5 i 0.5 grams
0.7 mil Diamond Stylus
10 x 106 cm/dyne
Type N-33
One touch 50 ~ 60 Hz changeover mechanism: Lever
controlled oil damped arm elevation, AC ON/OFF-ldler
OFF mechanism.
Spare plug-in Head, EP Adaptor, Grease Tube for Idler,
smallscrewdriver, Lubricating Oil.
AC 110~ 120V/220 ~ 240V, 50/60 Hz
60 Hz 14W, 50 Hz 15.5w
Width 16-1/8" x Height 7 X Depth 16-1/8"
24.2 lbs.
Specie! Mechanism
Supplied Accessories
Power Requirement
Power Consumption
Dimensions
Weight
