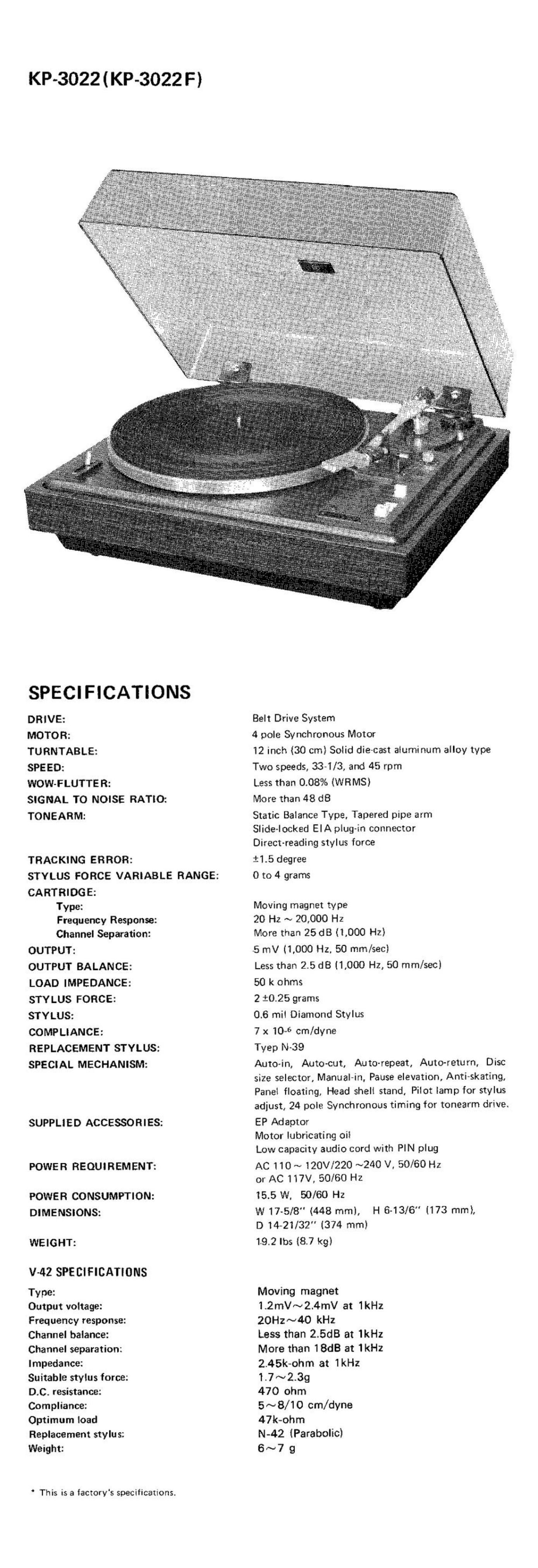

KP-3022 ( KP-3022 F)

SPECIFICATIONS

DRIVE:

MOTOR:

TURNTABLE:

SPEED:

WOW-FLUTTE R:

SIGNAL TO NOISE RATIO:
TONEARM:

TRACKING ERROR:
STYLUS FORCE VARIABLE RANGE:
CARTRIDGE:

Type:
Frequency Response:
Channel Separation:

OUTPUT:

OUTPUT BALANCE:
LOAD IMPEDANCE:
STYLUS FORCE:
STYLUS:

COMPLIANCE:
REPLACEMENT STYLUS:
SPECIAL MECHANISM:

SUPPLI E D ACCESSO R I ES:

POWE R REQUIREMENT:

POWER CONSUMPTION:
DIMENSIONS:

WEIGHT:

V-4Z SPE CIFICATIONS

Type:

Output voltage:
Frequency response:
Channel balance:
Channel separation:
Impedance:

Suitable stylus force:
D.C. resistance:
Compliance:
Optimum load
Replacement stylus:
Weight:

This is a factorys specifications.

Belt Drive System

4 pole Synchronous Motor

12 inch {30 cm) Solid die-cast aluminum alloy type
Two speeds, 33-1/3, and 45 rpm

Less than 0.08% (WRMS)

More than 48 d8

Static Balance Type, Tapered pipe arm
Slide~locked EIA plug-in connector
Direct-reading stylus force

11.5 degree

0 to 4 grams

Moving magnet type
20 Hz ~ 20,000 Hz
More than 25dB (1,000 Hz)

5 mV (1,000 Hz, 50 mm/sec]

Less than 2.5 dB (1,000 Hz, 50 mm/sec)

50 k ohms

2 10.25 grams

0.6 mil Diamond Stylus

7 x 10-6 cm/dyne

Tyep N-39

Auto'in, Auto-cut, Auto-repeat, Auto-return, Disc
size selector, Manual-in, Pause elevation, Anti-skating,

Panel floating, Head shell stand, Pilot lamp for stylus
adjust, 24 pole Synchronous timing for tonearm drive.

EP Adaptor
Motor lubricating oil
Low capacity audio cord with PIN plug

AC 110 ~ l20V/220 ~240 V, 50/60 Hz
or AC 117V, 50/60 Hz

15.5 W, 50/60 Hz

W 17-5/8" (448 mm), H 6-13/6 (173 mm},
D 14-21/32" (374 mm)

1.9.2 lbs (8.7 kg)

Moving magnet
l.2mV~2.4mV at 1kHz
20Hz~40 kHz

Less than 2.5dB at 1kHz
More than 18dB at 1kHz
2.45k-ohm at 1kHz
1.7~2.39

470 ohm

5~8/10 cm/dyne
47k-ohm

N-42 (Parabolic)

6~7 g
