Kenwood KP 3021 Brochure
This is the 1 pages manual for Kenwood KP 3021 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KP 3021 Brochure (Ocr-read)
Page 1

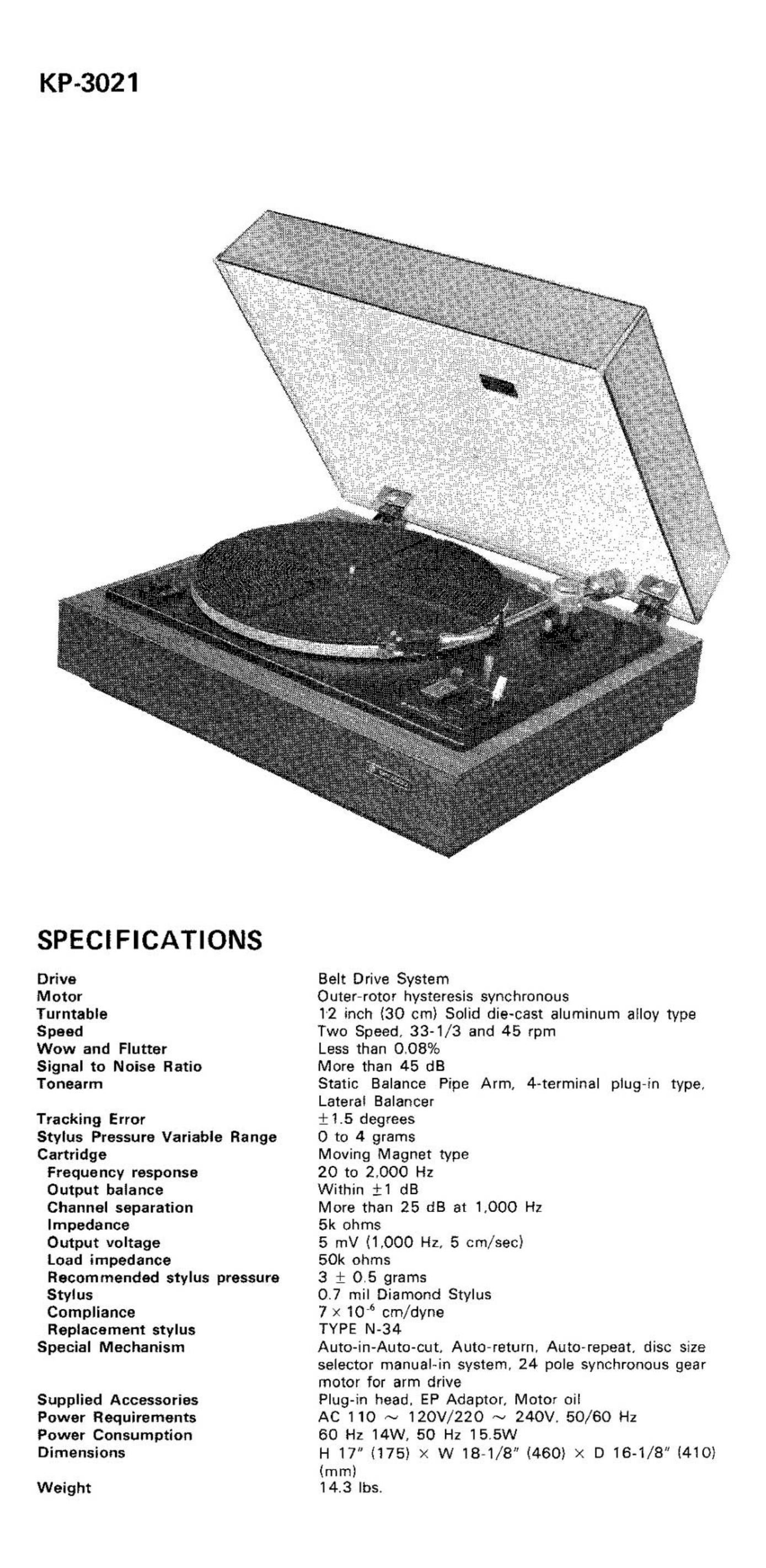

KP-3021
SPECIFICATIONS
Drive
Motor
Turntable
Speed
Wow and Flutter
Signal to Noise Ratio
Tonearm
Tracking Error
Stylus Pressure Variable Range
Cartridge
Frequency response
Output balance
Channel separation
Impedance
Output voltage
Load impedance
Recommended stylus pressure
Stylus
Compliance
Replacement stylus
Special Mechanism
Supplied Accessories
Power Requirements
Power Consumption
Dimensions
Weight
Belt Drive System
Outer-rotor hysteresis synchronous
12 inch (30 cm) Solid die-cast aluminum alloy type
Two Speed, 33-1/3 and 45 rpm
Less than 0.08%
M0re than 45 d8
Static Balance Pipe Arm, 4stermina| plug-in type,
Lateral Balancer
i 1.5 degrees
0 to 4 grams
Moving Magnet type
20 to 2.000 H2
Within i1 dB
More than 25 dB at 1.000 H2
5k ohms
5 mV (1,000 Hz, 5 cm/sec)
50k ohms
3 i 0.5 grams
0.7 mil Diamond Stylus
7 x 10'6 cm/dyne
TYPE N-34
Auto-in-Auto-cut, Auto-return, Auto-repeat. disc size
selector manual-in system, 24 pole synchron0us gear
motor for arm drive
Plug-in head. EP Adaptor. Motor oil
AC 110 ~ 120V/220 ~ 240V. 50/60 Hz
60 Hz 14W, 50 Hz 15.5w
H 17" (175) X W 18-1/ " (460) X D 16-1/8" (410)
(mm)
14.3 lbs.
