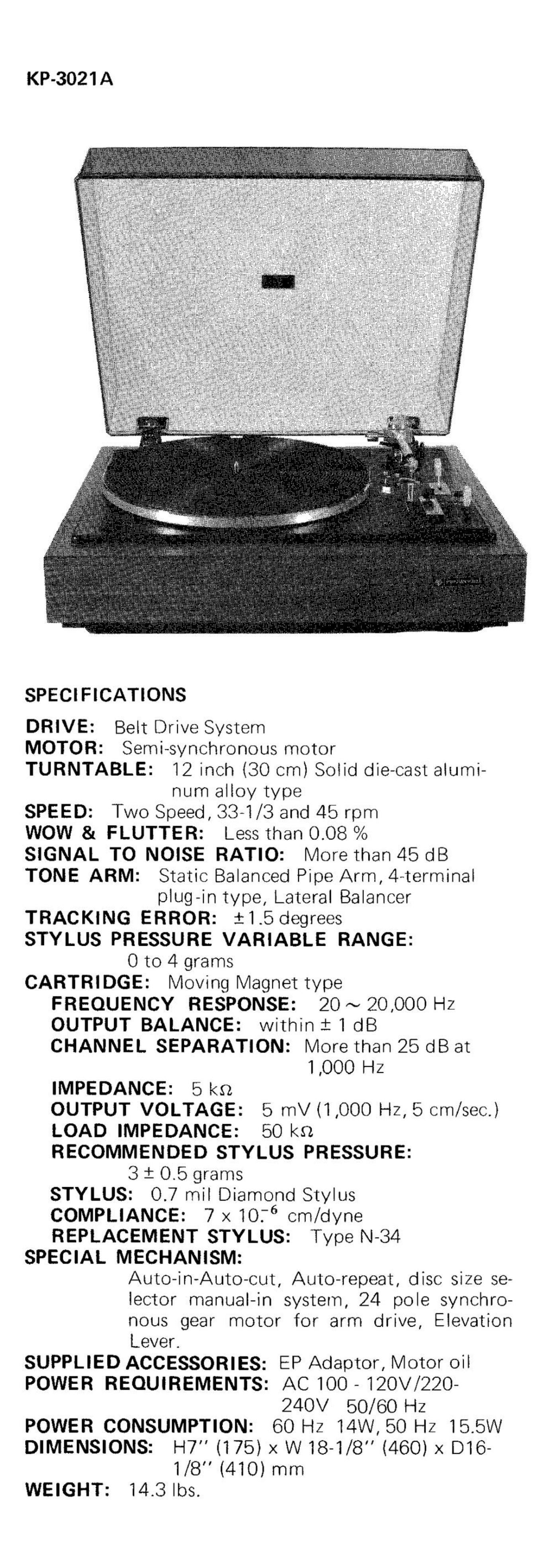

Kenwood KP 3021 A Brochure

Page 1

KP-3021 A

SPECIFICATIONS

DRIVE: Belt Drive System
MOTOR: Semi-synchronous motor
TURNTABLE: 12 inch (30 cm) Solid die-cast alumi-
num alloy type
SPEED: Two Speed, 334/3 and 45 rpm
WOW 8: FLUTTER: Less than 0.08 %
SIGNAL TO NOISE RATIO: More than 45 dB
TONE ARM: Static Balanced Pipe Arm, 4-terminal
plug-in type, Lateral Balancer
TRACKING ERROR: :15 degrees
STYLUS PRESSURE VARIABLE RANGE:
0 to 4 grams
CARTRIDGE: Moving Magnet type
FREQUENCY RESPONSE: 20 ~ 20,000 Hz
OUTPUT BALANCE: within at 1 dB
CHANNEL SEPARATION: More than 25 dB at
1,000 Hz
IMPEDANCE: 5 k9
OUTPUT VOLTAGE: 5 mV (1,000 Hz, 5 cm/sec.)
LOAD IMPEDANCE: 50 km
RECOMMENDED STYLUS PRESSURE:
3 i 0.5 grams
STYLUS: 0.7 mil Diamond Stylus
COMPLIANCE: 7 x 10.6 cm/dyne
REPLACEMENT STYLUS: Type N-34
SPECIAL MECHANISM:
Auto-in-Auto-cut, Auto-repeat, disc size se~
lector manual-in system, 24 pole synchro-
nous gear motor for arm drive, Elevation
Lever.
SUPPLIED ACCESSORIES: EP Adaptor, Motor oil
POWER REQUIREMENTS: AC 100 - i20V/220-
240V 50/60 Hz
POWER CONSUMPTION: 60 Hz 14W, 50 Hz 15.5w
DIMENSIONS: H7 (175)x W 18-1/8 (460) x D16-
1/8" (410) mm
WEIGHT: 14.3 lbs.
