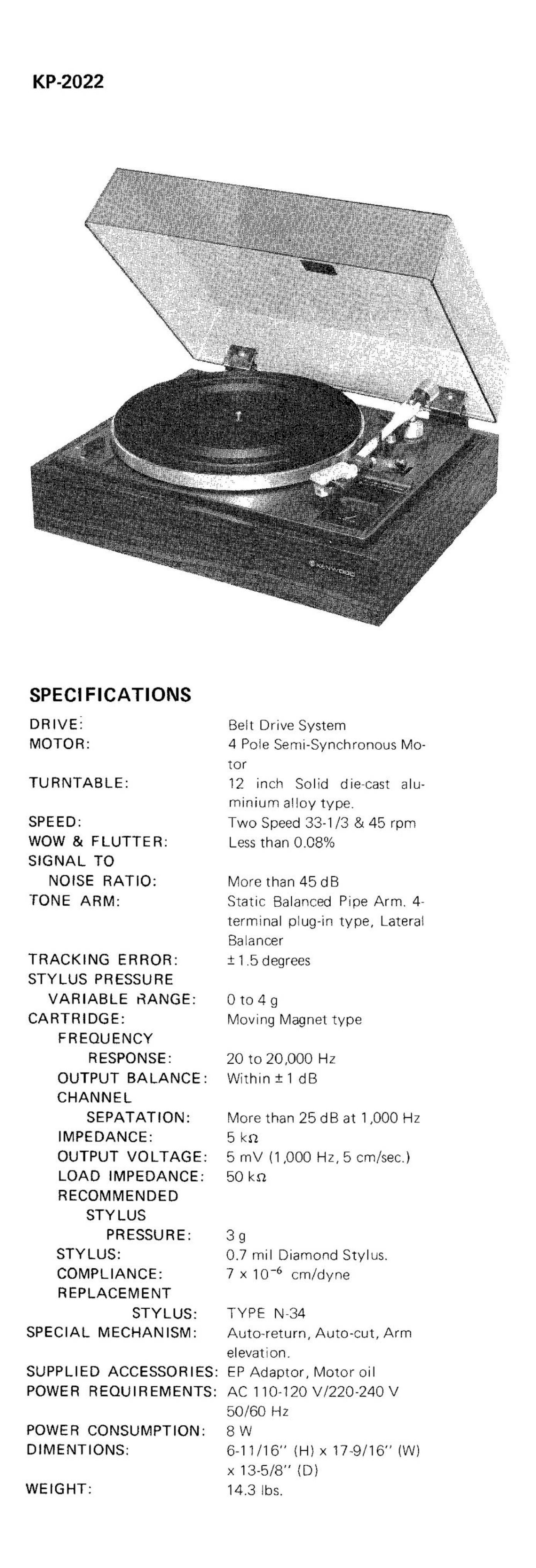

Page 1
KP-2022
SPECIFICATIONS
DRIVE:
MOTOR:
TURNTABLE:
SPEED:
WOW 8: FLUTTER:
SIGNAL TO
NOISE RATIO:
TONE ARM:
TRACKING ERROR:
STYLUS PRESSURE
VARIABLE RANGE:
CARTRIDGE:
FREQUENCY
RESPONSE:
OUTPUT BALANCE:
CHANNEL
SEPATATION:
IMPEDANCE:
OUTPUT VOLTAGE:
LOAD IMPEDANCE:
RECOMMENDED
STYLUS
PRESSURE:
STYLUS:
COMPLIANCE:
REPLACEMENT
STYLUS:
SPECIAL MECHANISM:
SUPPLIED ACCESSORIES:
POWER REQUIR EMENTS:
POWER CONSUMPTION:
DIMENTIONS:
WEIGHT:
Belt Drive System
4 Pole Semi-Synchronous Mo-
tor
12 inch Solid die-cast alu-
minium alloy type.
Two Speed 33-1/3 & 45 rpm
Less than 0.08%
More than 45 dB
Static Balanced Pipe Arm. 4-
terminal plug-in type, Lateral
Balancer
: 1 .5 degrees
0 to 4 9
Moving Magnet type
20 to 20,000 Hz
Within :1 dB
More than 25 dB at 1,000 Hz
5 km
5 mV (1,000 Hz, 5 cm/sec.)
50 kg
3 g
0.7 mil Diamond Stylus.
7 x 10'6 cm/dyne
TYPE N-34
Auto-return, Auto-cut, Arm
elevation.
EP Adaptor, Motor oil
AC 110-120 V/220-240 V
50/60 Hz
8 W
6-11/16" (HIx17-9/16(WI
x 13-5/8 (D)
14.3 lbs.
