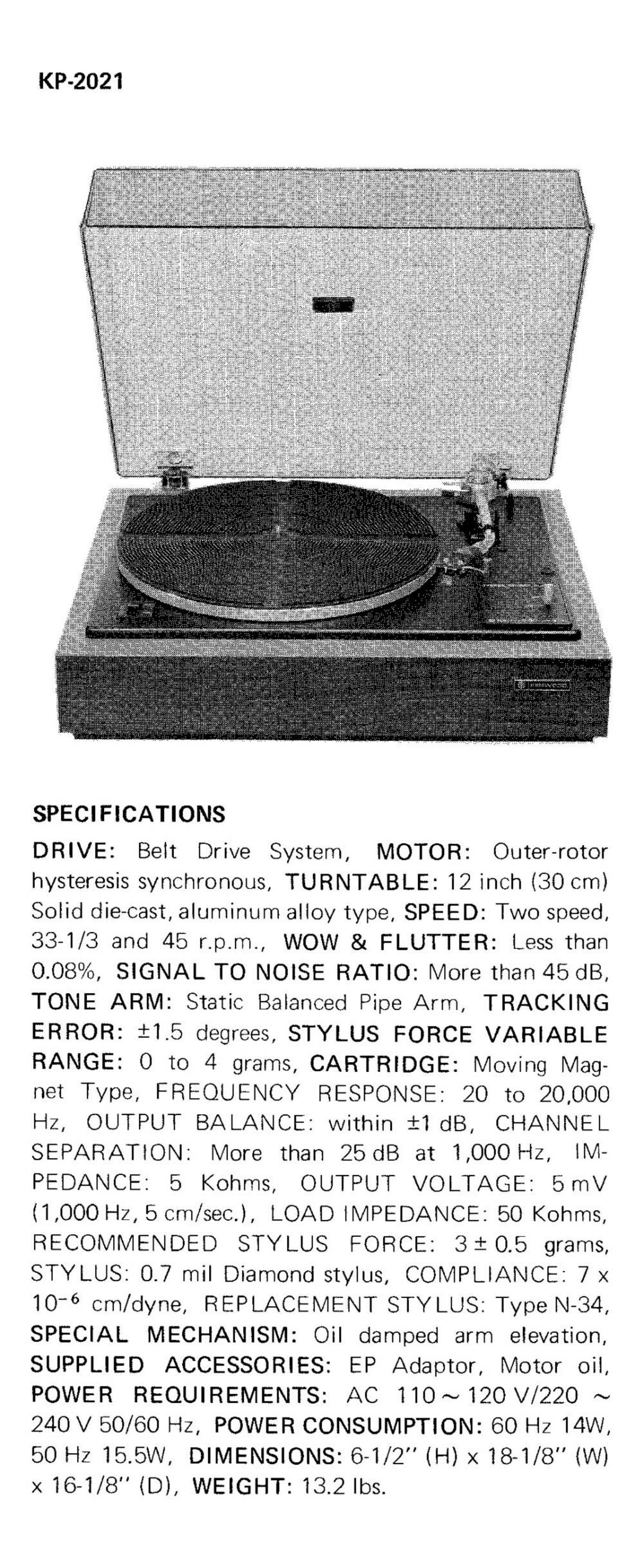

Kenwood KP 2021 Brochure
This is the 1 pages manual for Kenwood KP 2021 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KP 2021 Brochure (Ocr-read)
Page 1
KP-2021
SPECIFICATIONS
DRIVE: Belt Drive System, MOTOR: Outer-rotor
hysteresis synchronous, TURNTABLE: 12 inch (30 cm)
Solid die-cast, aluminum alloy type, SPEED: Two speed.
33-1/3 and 45 rpm, WOW & FLUTTER: Less than
0.08%, SIGNAL TO NOISE RATIO: More than 45 dB,
TONE ARM: Static Balanced Pipe Arm, TRACKING
ERROR il.5 degrees, STYLUS FORCE VARIABLE
RANGE. 0 to 4 grams, CARTRIDGE: Moving Mag-
net Type, FREQUENCY RESPONSE: 20 to 20,000
Hz, OUTPUT BALANCE: within it dB, CHANNEL
SEPARATION: More than 25 dB at 1,000 Hz, IM-
PEDANCE: 5 Kohms, OUTPUT VOLTAGE: BmV
(1,000 Hz, 5 cm/sec.), LOAD IMPEDANCE: 50 Kohms,
RECOMMENDED STYLUS FORCE: 3:05 grams,
STYLUS: 0.7 mil Diamond stylus, COMPLIANCE: 7 x
106 cm/dyne, REPLACEMENT STYLUS: Type N-34,
SPECIAL MECHANISM: Oil damped arm elevation,
SUPPLIED ACCESSORIES: EP Adaptor, Motor oil,
POWER REQUIREMENTS: AC 110~120 V/220 ~
240V 50/60 Hz, POWER CONSUMPTION: 60 Hz 14W.
50 Hz 15.5w, DIMENSIONS: 6-1/2" (H) x l8-1/8" (W)
x16-1/8"(D), WEIGHT: 13.2 lbs.
