Kenwood KP 1022 Brochure
This is the 1 pages manual for Kenwood KP 1022 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KP 1022 Brochure (Ocr-read)
Page 1

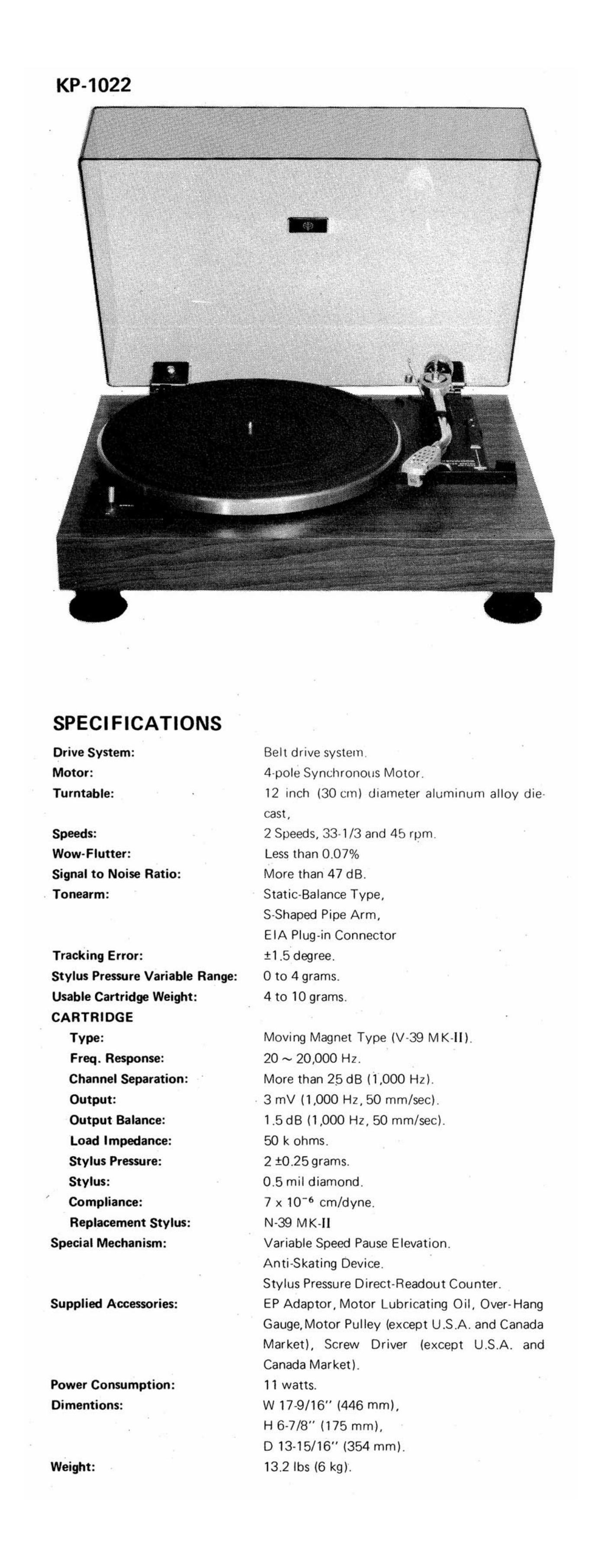

KP-1022
SPECIFICATIONS
Drive System:
Motor:
Turntable:
Speeds:
Wow-Flutter:
Signal to Noise Ratio:
Tonearm:
Tracking Error:
Stylus Pressure Variable Range:
Usable Cartridge Weight:
CARTRIDGE
Type:
Freq. Response:
Channel Separation:
Output:
Output Balance:
Load Impedance:
Stylus Pressure:
Stylus:
Compliance:
Replacement Stylus:
Special Mechanism:
Supplied Accessories:
Power Consumption:
Dimentions:
Weight:
Belt drive system.
4-pole Synchronous Motor.
12 inch (30 cm) diameter aluminum alloy die-
cast,
2 Speeds, 33-1/3 and 45 rpm.
Less than 0.07%
More than 47 dB.
Static-Balance Type,
S-Shaped Pipe Arm,
EIA Plug-in Connector
11.5 degree.
0 to 4 grams.
4 to 10 grams.
Moving Magnet Type (V-39 MK-ll).
20 ~ 20,000 Hz.
More than 25 dB (1,000 Hz).
3 mV (1,000 Hz, 50 mm/sec).
1.5d8 (1,000 Hz, 50 mm/sec).
50 k ohms.
2 $0.25 grams.
0.5 mil diamond.
7 x 106 Cm/dyne.
N-39 MK-II
Variable Speed Pause Elevation.
Anti-Skating Device.
Stylus Pressure Direct-Readout Counter.
EP Adaptor, Motor Lubricating Oil, Over-Hang
GaugeMotor Pulley (except USA. and Canada
Market), Screw Driver (except USA. and
Canada Market).
11 watts.
W 179/16" (446 mm),
H 6-7/8" (175 mm),
D 13-15/16" (354 mm).
13.2 lbs (6 kg).
