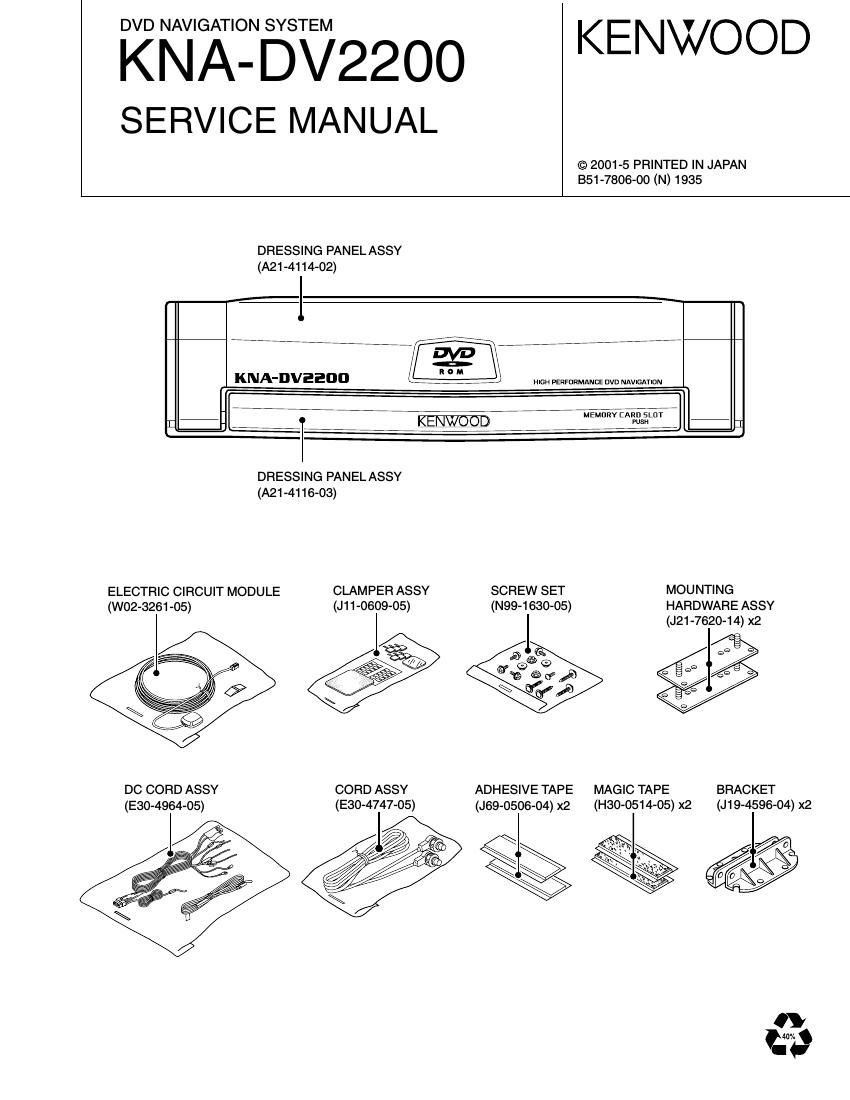

Page 1
EEKIKTESTI2200 KENWOOD
SERVICE MANUAL
© 2001-5 PRINTED IN JAPAN
B51-7806-00 (N) 1935
DRESSING PANEL ASSY
(A21-4114-02)
HIGH PERFCIRMANCE DVD NAVIGATIEIN
MEMORY CARD SLUT
I 7 7 7 7 7 7 7 7 I
DRESSING PANEL ASSY
(A21-4116-03)
ELECTRIC CIRCUIT MODULE CLAMPER ASSY SCREW SET MOUNTING
(W02-3261-05) (J11-0609-05) (N99-1630-05) HARDWARE ASSY
(J21-7620-14) x2
DC CORD ASSY CORD ASSY ADHESIVE TAPE MAGIC TAPE BRACKET
(E30-4964-05) (E30-4747-05) (J69-0506-04) x2 (H30-0514-05) X2 (J19-4596-04) X2
