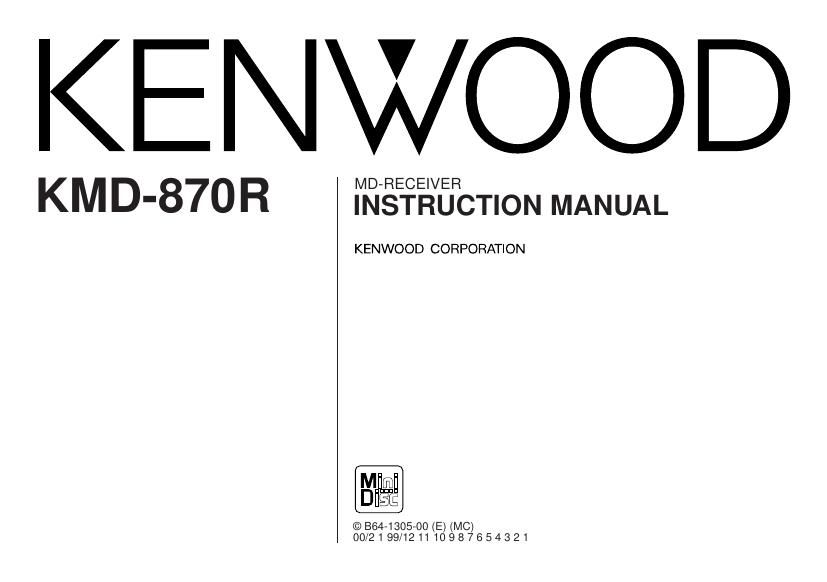

Kenwood KMD 870 R Owners Manual
This is the 36 pages manual for Kenwood KMD 870 R Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KMD 870 R Owners Manual (Ocr-read)
Page 1
- 2 - English Contents Before useSafety precautions ........................................................................3 Basic operationsPower ............................................................................................5 Switching Modes ..........................................................................5 Volume ..........................................................................................6 Attenuator .....................................................................................6 Loudness ......................................................................................6 Menu System................................................................................6 Tuner featuresSelecting Tuning Mode .................................................................8 Tuning ...........................................................................................8 Local Seek Function ......................................................................8 Station Preset Memory .................................................................9 Auto Memory Entry.......................................................................9 Preset station seek with Programme service name ...................10 Monaural Reception ....................................................................10 RDS featuresRDS (Radio Data System) ...........................................................11 EON (Enhanced Other Network) .................................................11 Alarm ...........................................................................................11 AF (Alternative Frequency) Function ...........................................12 Restricting RDS Region (Region Restrict Function) ....................12 Traffic Information Function ........................................................12 Auto TP Seek Function................................................................13 Presetting Volume for Traffic Information/News ........................13 News Bulletin Function with PTY News Timeout Setting...........14 Programme Type (PTY) Function ................................................14 Text Scroll ...................................................................................16 Radio Text ...................................................................................16 MD/External disc control featuresPlaying MDs ................................................................................18 Playing Other Disc mode ............................................................18 Fast Forwarding and Reversing Disc Play ...................................18 Track Search................................................................................19 Disc Search .................................................................................19 Track / Disc Repeat .....................................................................20 Track Scan ...................................................................................20Disc Scan ....................................................................................20 Random Play ...............................................................................20 Magazine Random Play ...............................................................21 Text / Title Scroll..........................................................................21 Presetting Disc Names ...............................................................22 Disc Name Preset Play (DNPP) ..................................................22 Switching Display for Discs.........................................................23 Other featuresAudio Control Setting ..................................................................24 Switching Display ........................................................................25 Switching Graphic Display...........................................................25 Dimmer .......................................................................................25 Automatic Dimmer Function .......................................................26 TEL Mute ....................................................................................26 Selectable Illumination ................................................................26 Touch Sensor Tone .....................................................................26 Navigation Mute Function ...........................................................26 Contrast Adjustment ...................................................................27 Theft Deterrent Faceplate ...........................................................27 Adjusting Time ............................................................................28 Disabled System Indicator (DSI)..................................................28 InstallationAccessories .................................................................................29 Installation Procedure..................................................................29 Connecting Cables to Terminals .................................................30 Installation ...................................................................................31 Troubleshooting Guide .......................................33 Specifications .....................................................37
Page 2
- 3 - To prevent injury and/or fire, take the following precautions: - Insert the unit all the way until it is fully locked in place. Otherwise it may fly out of place during collisions and other jolts. - When extending the ignition, battery or ground cables, make sure to use automotive- grade cables or other cables with an area of 0.75mm 2(AWG18) or more to prevent cable deterioration and damage to the cable coating. - To prevent short circuits, never put or leave any metallic objects (e.g., coins or metal tools) inside the unit. - If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood dealer. - Make sure not to get your fingers caught between the faceplate and the unit. - Be careful not to drop the unit or subject it to strong shock. The unit may break or crack because it contains glass parts. - Do not touch the liquid crystal fluid if the LCD is damaged or broken due to shock. The liquid crystal fluid may be dangerous to your health or even fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately. 2WARNING To prevent damage to the machine, take the following precautions: - Make sure to ground the unit to a negative 12V DC power supply. - Do not open the top or bottom covers of the unit. - Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing. - Do not set the removed faceplate or the faceplate case in areas exposed to direct sunlight, excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing. - To prevent deterioration, do not touch the terminals of the unit or faceplate with your fingers. - Do not subject the faceplate to excessive shock, as it is a piece of precision equipment. - When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction. - To prevent short circuits when replacing a fuse, first disconnect the wiring harness. - Do not place any object between the faceplate and the unit. - During installation, do not use any screws except for the ones provided. The use of improper screws might result in damage to the main unit. 2CAUTION IMPORTANT INFORMATION You cannot connect the unit directly to the following CD automatic changers. For users who want to use older changers with the unit, follow the directions below according to the type of changer you own: - KDC-C200 / KDC-C300 / KDC-C400 Use the extension cable and the control box attached to the CD changer, and the optional CA-DS100 converter cable. - KDC-C301 / KDC-C600 / KDC-C800 / KDC- C601 / KDC-C401 Use the extension cable attached to the CD changer, and the optional CA-DS100 converter cable. - KDC-C100 / KDC-C302 / C205 / C705 / non-Kenwood CD changers Cannot be used with this model. You can damage both your unit and the CD changer if you connect them incorrectly. 2CAUTION Safety precautions
Page 13
Conduct auto seek tuning only on those stations with selected kinds of programmes. Press the 38(PTY) button. PTY is displayed, and the Programme Type Selection (PTY) Mode entered. If you make no key input in 30 seconds, the mode will automatically turn off. You cannot use this function whilst the traffic information function is turned on. Changing the Display Language to French, German, or Swedish In the PTY mode, hold down the 38(PTY) button for one second or more to display the name of the language currently used. If you want to change the language, press the preset button for the desired language and then the 38(PTY) button. English is #1, French is #2, German is #3, and Swedish is #4. Select the type of programme to be received- Press either the FM or AM buttons repeatedly until the type of programme you want to listen to. The selection includes: Speech(Speech) Ö1.News (News) Ö2.Current Affairs (Affairs) Ö3.Information (Info) Ö4.Sports (Sport) Ö 5.Education (Educate) Ö6.Drama (Drama) Ö7.Culture (Culture) Ö8.Science (Science) Ö9.Varied (Varied) Ö 10.Pop Music (Pop M) Ö11.Rock Music (Rock M) Ö 2 NOTE NOTE 1 Programme Type (PTY) Function - This function is only available if the desired station sends PTY- code for news bulletin or belongs to EON-Network sending PTY- code for news bulletin. - If you turn on the news bulletin function in the MW/LW band, the band is switched automatically to the FM band. However, the MW/LW band is not returned to when you turn off the function. NOTE You can arrange to have news bulletins interrupt your current listening source, including other radio stations. When the News Bulletin function is on, the PTY News Timeout setting allows you to set the interval during which further news interruption cannot take place. You can adjust the PTY news interruption period from 10 to 90 minutes for each journey. Turning News Bulletin Function On/Off: Hold down the MENU button for one second or more. "MENU" is displayed and the menu mode is turned on. Press the ¢button repeatedly until the News Bulletin function appears in the display. Press the 4button to search in the other direction. The function setting is indicated by "NEWS OFF" or "NEWS ##M" in the display, indicating that the function is on or off, respectively. Depending on the interval chosen, the "##M" in the display will change when the function is turned on. Changing the Function SettingPress either the FM or AM button. Each time you press the FM or AM button until the desired setting is displayed. Press the FM button to increase the interval, and the AM button to decrease it. OFF Ö 00M Ö 10M Ö 20M Ö 30M Ö 40M Ö 50M Ö 60M Ö 70M Ö 80M Ö90M (M= minutes) When you select the news interruption timeout interval, the News function turns on and the NEWS indicator lights up. When a news bulletin is received, "NEWS" will be displayed and reception will begin at the preset volume. If you choose the "20M" setting, further news bulletins will not be received for 20 minutes once the first news bulletin is received. Press the MENU button to end the menu mode. 4 NOTE 3 NOTE 2 1 News Bulletin Function with PTY News Timeout Setting RDS features - 14 - English
Page 23
Adjust various parameters of sound quality. Press the AUD button to enter the control mode. Press either the FM or AM button. Each time the button is pressed, the adjustment mode will change as follows: Pressing the FM button advances the display, and pressing the AM button reverses it. Source tone memory Each source (MD, FM, AM, and disc changer) has its own memory in which to store the bass and treble tone settings. The settings made for a particular source are then recalled automatically whenever you use that source (e.g., FM mode uses the tone settings made for FM, AM for AM, etc.). Press the 4/¢button. Look at the table to adjust the mode being displayed. Press the AUD button to end the control mode. 4 Adjustment mode (Display) Bass ("BAS") Treble("TRE") Balance("BAL") Fader ("FAD")Bass decreased. Treble decreased.Bass increased. Treble increased. 4 button¢ button Operation of Audio control button Front channel increased. Rear channel increased. Right channel emphasized. Left channel emphasized. 3 NOTE Bass TrebleBalanceFader 2 1 Audio Control Setting Other features - 24 - English 123 456 SRC AM AUD FM MENU POWER OFF SCAN RDM REP D.SCN M.RDM PTY LOUDATT DISC DISC CLK NAME.SDISP VOL ADJ TI AUD / MENU AM FM/CLK SRC 4 ¢ I Clock display/ Graphic display Release button
