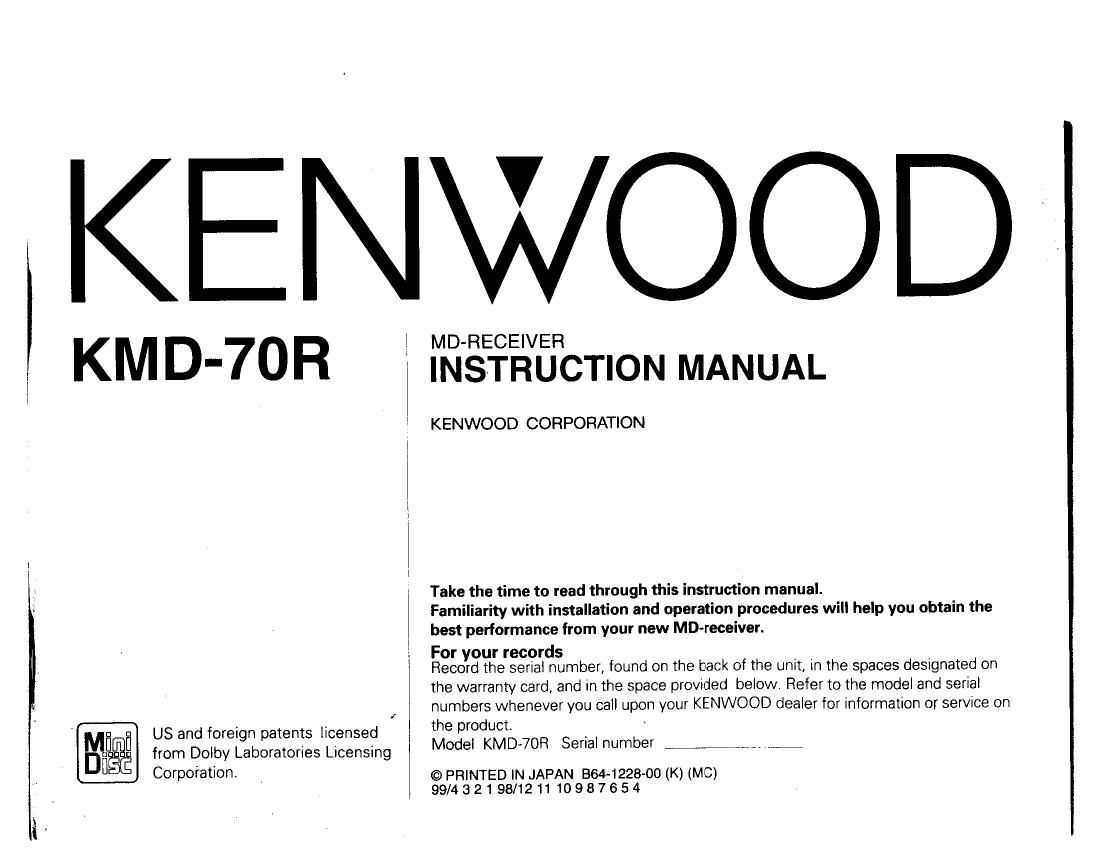

KMD-70R ! iflfigfi'avfiRCTION MANUAL

KENWOOD CORPORATION

,KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the
best performance from your new MD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the model and serial

J numbers whenever you call upon your KENWOOD dealer for information or sen/ice on

' Mfi a US and foreign patents licensed the product. _
Dfifi from Dolby Laboratories Licensing Model KMDJOR Serial number Wid A7
Corporation © PRINTED IN JAPAN 864-1228-00 (K) (MC)
99/432198/121110987654

Page 2

Contents

Before use
Warning
Safety prec

Buttons and Display
Basic operations .....
Tuner features...
RBDS features
Disc control features.
Other features...
Remote ..............

'Lo'co'oooo'xixi

Basic operations
Power ........................
Switching Modes
Volume .........
Attenuator
Loudness .....
Menu System

Tuner features
Tuning ..............................
Station Preset Memory
Auto Memory Entry ..........
Clean Reception System CllCUIt (CRSCl.
Switching Display for Tuner .......
Station Name Preset (SNPS) IIIII
Station Name Preset Play (SNPP)
Direct Access Tuning ........................

REDS features
REDS (Radio Broadcast Data System) ...... 16
Alarm I
Traffic Inf
Program Type (PTY) Functio
Radio Text ..............
Radio Text Scroll.

Disc control features
Playing MDs ................................................................................ 19

Playing Other Disc mode ...... ....20
Fast Forwarding and Reversin
Track Search ......
Disc Search .......
Track/Disc Repea
Track Scan .....
Disc Scan ..
Random play.
Magazine Random play.
Switching Display for Discs ..
Text/Title Scroll ...............

Presetting Disc Names ......
Disc Name Preset Play (DNPP)
Direct Track Search c

Direct Disc Search .......

Other features

Audio Control Setting ...................
Table of Audio Control Setting ,
Switching Preout ...................
Switching Graphic Display.
Touch Sensor Tone ........
Switching Clock Display.
Selectable illumination

Automatic Dimmer .........
Disabled System lndicator (DSI
Adjusting Time .....
Theft Deterrent Fa .....

Basic operations of remote .......................................... 32

Installation
Accessories ....................
Installation Procedure .....
Connecting Wires to Terminals
installation ....................................

Troubleshooting Guide ....................................................... 39
Specifications ......................................................................... 42

Page 10

Basic operations (See page 7)
Turning on the power:
Press the SRC (source) button.

Turn the power on before carrying out the followrng procedures.

Turning off the power:
Press the PWR OFF button for at least one second,

Switching Modes

Switching Modes:
Each time you press the SRC (source) button, the mode
swnches as follows:

_7
Tuner mode
V
MD mode
V

Disc control mode

_I

- The mode switches to the next mode from any mode which
cannot be used.

- The disc control mode Will differ depending on the unit that is
connected.

Increasing Volume:
Press the /\ button to turn up the volume.

Decreasing Volume:
Press the V button to turn down the volume,

Attenuator

This function allows you to turn down the volume quickly.

Turning Attenuator On/Off:
Press the ATT button to switch the attenuator on and off.
When the attenuator is on, the ATT indicator blinks.
When the attenuator is off, the volume returns to the original
level.

Turning the volume all the way down deactivates the attenuator
function.

Loudness

This function amplifies low and high tones when the volume
is turned down.

The LOUD indicator lights up when the loudness function is
on.

Turning Loudness On/Ofl:
Press the LOUD button for at least one second to switch the
loudness on and off.

To accommodate a greater number of functions, a menu
system has been employed for making settings. Press the
MENU button to enter the menu mode and then display the
function to make the setting. Details on each setting are
explained separately in the corresponding function page.

1 Press the MENU button for at least one second.
"MENU" is displayed when the menu mode is entered.
The function that you can adjust is indicated with the current
settings displayed.

2 Selecting function to set
Press the >>l button to search through the functions until you
see the one you want to adjust in the display.

_10_
