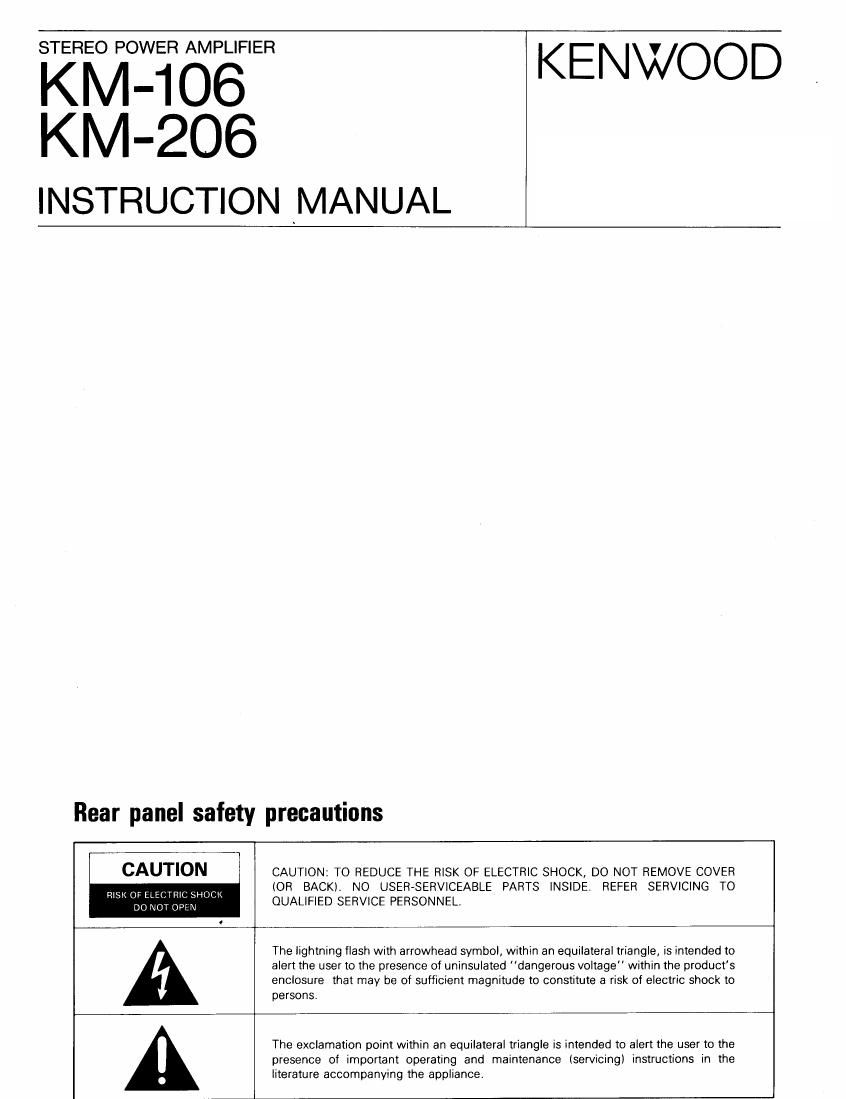

SkERK/FIZviaé'm KENWOOD ,
KM-206

INSTRUCTION MANUAL

Rear panel safety precautions

CAUTION

RISK OF ELECTRIC bHOCK
DO NOT OPEN

l

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle. is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

Page 2

For your records

Record the serial number, found on the back of the
unit, in the spaces designated on the warranty card,
and in the space provided below. Refer to the model
and serial numbers whenever you call upon your dealer
for information or service on this product.

Model (@4226. Serial number Jaim-

Unpacking

Unpack the unit carefully and make sure that all ace
cessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped
to you directly, notify the shipping company without
delay. Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for
shipping damage.

We recommend that you retain the original carton and
packing materials for use should you transport or ship
the unit in the future.

Before applying power

Important!

U.S.A., Canada and Australia

Units shipped to the U.S.A. and Canada are designed
for operation on 120 volts AC only. Units shipped to
the Australia are designed for operation on 240 volts
AC only. These units are not equipped with an AC
voltage selector switch and the discussron of such a
switch that follows should be disregarded.

All other countries

Units shipped to countries other than the U.S.A.,
Canada and Australia are equrpped with an AC voltage
selector switch on the rear panel. Refer to the following
paragraph for the proper setting of this switch.

AC voltage selection

This unit operates on 110 - 120 volts or 220 - 240 volts
AC. The AC voltage selector switch on the rear panel is set to
the voltage that prevails in the area to which the unit is ship-
ped. Before connecting the power cord to your AC outlet,
make sure that the setting position of this switch matches
your line voltage. If not, it must be set to your voltage in ac-
cordance with the following direction.

Note:
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC voltage selector switch,

AC 220-240 V~< >AC 110.1 20 V»

le

This shows switch lever
locked in the AC 110
120 V~ position.

AC 220240 V~< >AC 1107120 V»

This shows switch lever

locked in the AC 220-
240 V» position.
Move switch lever to match your line voltage.

AC voltage selector switch

Safety precaution for AC plug (For U.S.A.
and Canada)

CAUTION: TO PREVENT ELECTRlC SHOCK
DO NOT USE THIS (POLARIZED) PLUG
WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO RPEVENT
BLADE EXPOSURE.

WARNING:
TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR
MOISTURE.
