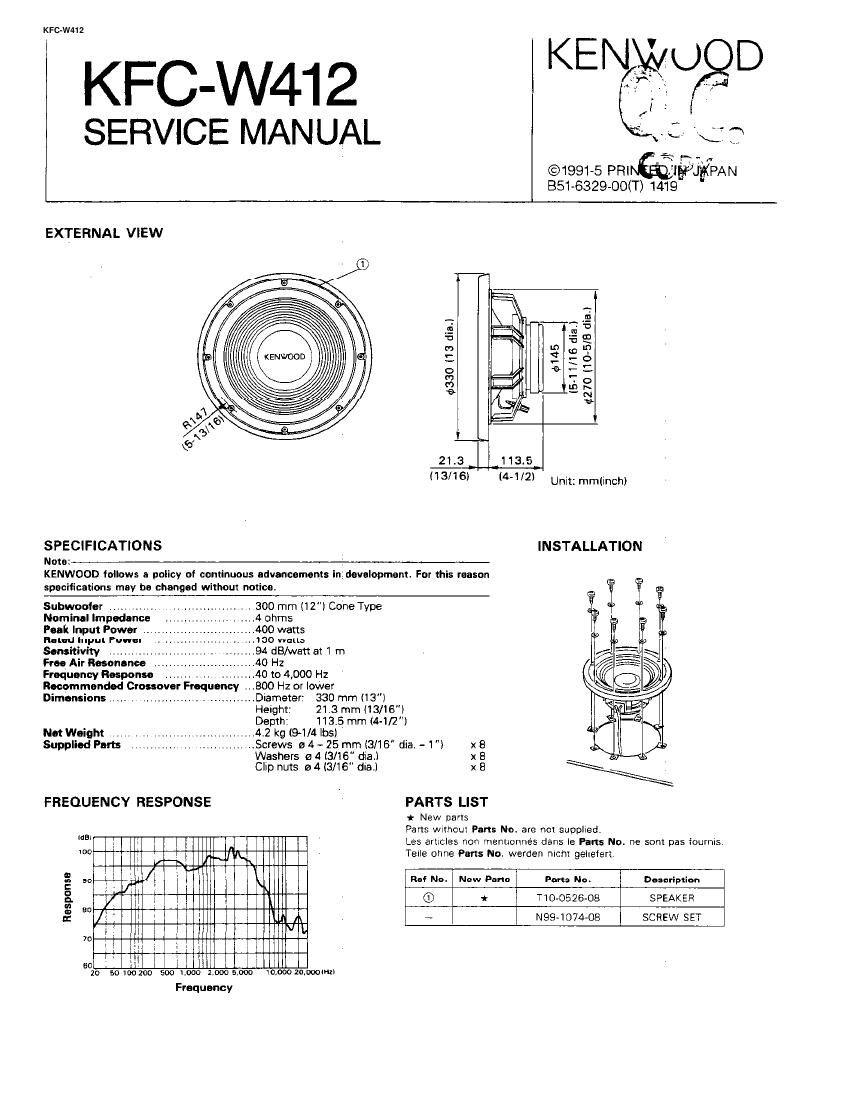

Extracted text from Kenwood KFCW 412 Service Manual (Ocr-read)

Page 1

KFC-Wdl 2

KFC-W412

SERVICE MANUAL

EXTERNAL VIEW

851632900) 1419

_ _ E
I a, .4,
a 3g
3 3 23
c: e 3:
m P
s; I a?
L - a
21.3 113.5
(13/16) I4-1/2I

SPECIFICATIONS

Note:

KENWOOD follows a policy of cuminuous advancements in development. For this reason

speciﬁcations may be changed withour notice.

Subwoofer .. .I . 300 mm (12") Cone Tvpe

Nominal Impedance . .. 4 ohms
Peak Input PoweI I. .. 400 watts
Rated Input Power I130 wan:
Sensitivity ........... 94 dB/watl a1 1 m
Free Air Resonance 40 H2
Frequency Response ... I40 10 4,000 Hz
Recommended Crossover WFrequency 800 Hz or lower
Dimensions. I I. ..I.IDiameter: 330 mm (13")
Helght: 21.3 mm (13/16")
Depth: 113.5 mm (4-1/2)
Net Weight IIIIII 4.2 kg (9-1/4 lbs!
Supplied Pens ..Screws 9 4 - 25 mm (3/16" dIa. - 1")
Washers a 4 (3/16" dia.)
CIIp nuts e 4 (3/16" dia.)
FREQUENCY RESPONSE ' PARTS

LIST

* New pans
9ans wnhout Part: No. are not supplied.

Unit: mmlinch)

INSTALLATION

Les amcles non menuonnés dans la Pans No. ne som pas foumls.
100 TeIIe ohne Parts No. warden nIchI gellefen.

so :- Raf Na.

Response

New Pans Pans No. Description
® VI: T1070526708 SPEAKER
N99-1074-08 SCREW SET

20 50100200 500 I. Ioooom

Frequency
