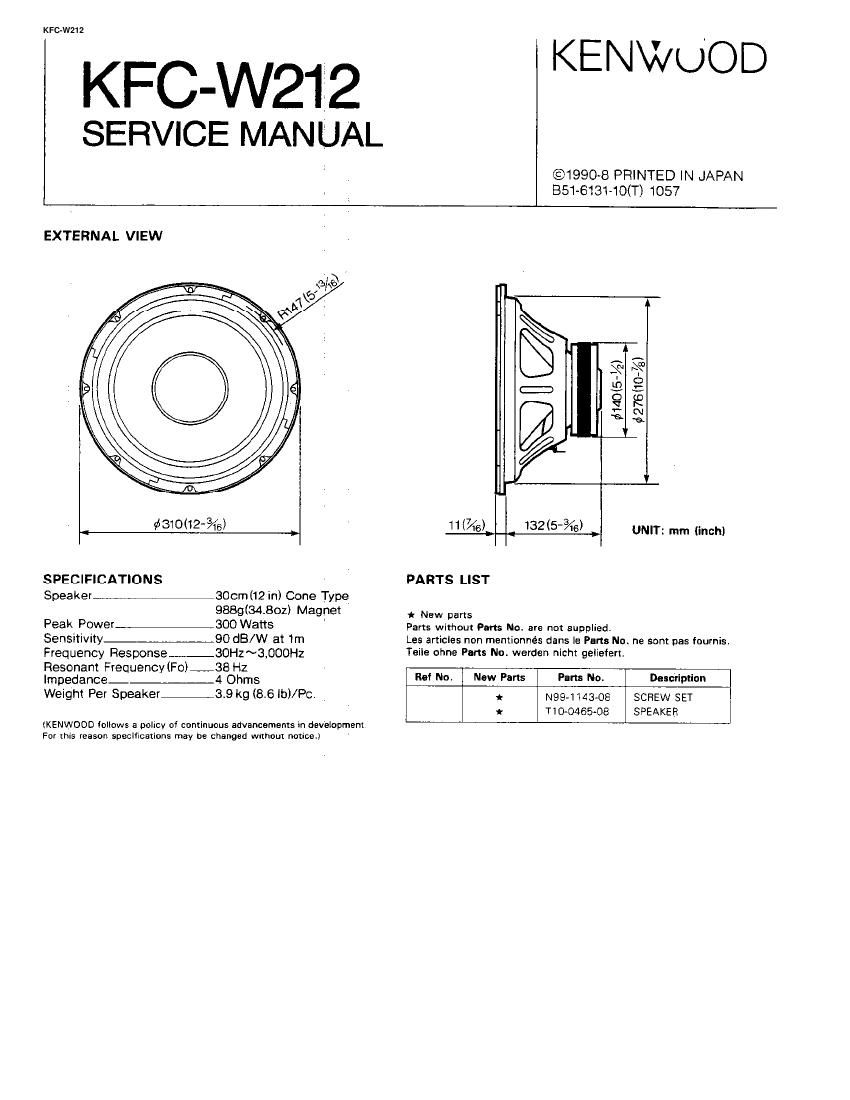

Page 1
KFC-WZI 2
KFC-W212
SERVICE MANUAL
KENWUOD
(91990-8 PRINTED IN JAPAN
851-6131~IO(T) 1057
EXTERNAL VIEW
{5/ng
«V
«8"
\
¢310I123/15)
SPECIFICATIONS
Speaker-*SOCm (12 in) Cone Type
9889(34.Bozi Magne1
Peak Powez_-300 Watts I
Sensitivity-_.___90 dB/W at 1m
Frequency Response 30Hz~3,000Hz
Resonant Frequency (FOIVSB Hz
Impedance_-4 Ohms
Weight Per Speakerss kg (8.6 IbI/Pc.
(KENWODD IolIows a policy a! cuminuous aovancemenls In development
For (his reasan specifications may be changed wvthnut notice.)
\
¢140(5-/2)
¢276i10%)
/
11%) 132(5-3/.6)
PARTS LIST
iv New pans
Parts without Parts No. are not supplied.
Les articles non mentionnés dans la Pans Nu.
Telle ohne Pans No. werden nicht geiiefen.
UNIT: mm (inch)
ne son! pas Iournis.
Rel No. New Fans Fans No. Desfiription
- NQQ-IMB-OS SCREW SET
t T10»0465-08 SPEAKER
