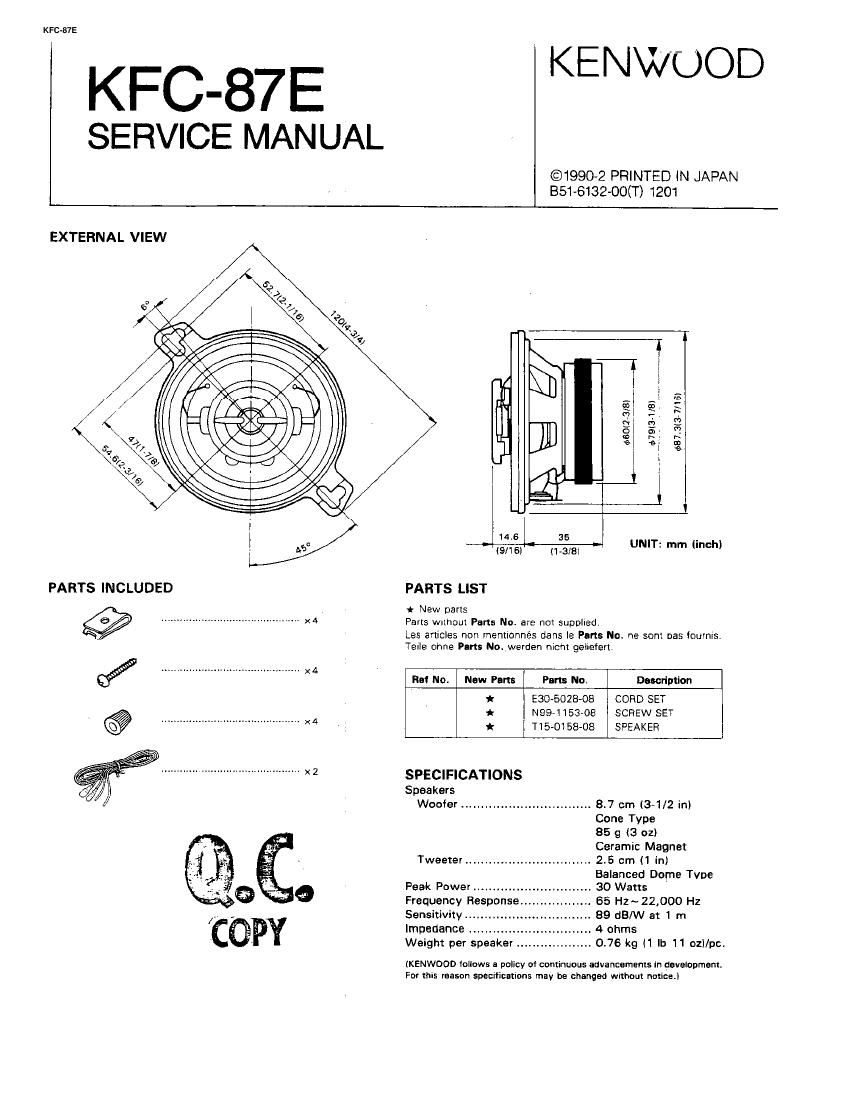

KFC-87E I KENWUOD
SERVICE MANUAL
©199072 PRINTED IN JAPAN
851-662-0003 1201
EXTERNAL VIEW
33
BI]
I I
->q
$60I243I6)
$798 1/8)
$87 3I3-7H5)
I
L
I 14.6 35
(9/16) (1-3/8) UNIT: mm (Inch)
pf:
PARTS INCLUDED PARTS LIST
at New pans
Parts WIIhOul Pans Na. are net supphed.
Les arucles non menuonnés dans la Pans Nu. ne som pas Iouvms.
Telle ohns Pllts No. warden nichl gehefen,
Raf No. New Pans Parts No. Description
VI [53075028708 CORD SET
t N994153-08 SCREW SET
* T15-0158-08 SPEAKER
SPECIFICATIONS
Speakers
Woofer ........... 8.7 cm (3-1/2 in)
Cone Type
85 g (3 oz)
Ceramic Magnet
Tweeter ................................ 2.5 cm (1 in)
Balanced Dome Tyne
Peak Power , 30 Watts
Frequency Response. . 65 Hz~22,000 Hz
Sensitivity .. . 89 dB/W at 1 m
. 4 ohms
, 0.76 kg (1 lb 11 ozllpc.
Impedance .
Weight per speaker
(KENWDOD Iolluws a policy of cmxinuous advancements in developmenl
Far this reason specificauons may be changed without naxice.)
