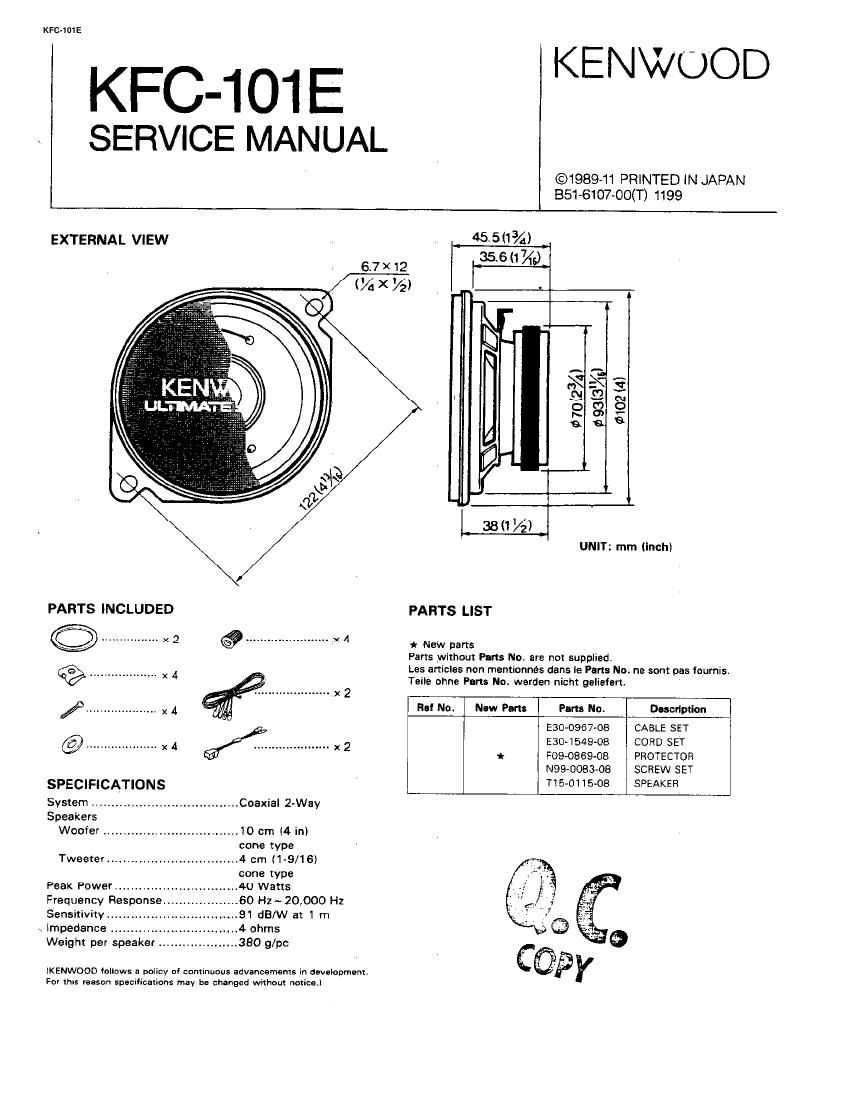

KFC-101E

KFC-101 E

\ SERVICE MANUAL

EXTERNAL VIEW

PARTS INCLUDED


SPECIFICATIONS
System ..................................... Coaxial 2-Way
Speakers
Woofer .................................. 10 cm (4 in)
cone type
Tweeter ................................ 4 cm (1-9/16)
cane type
Peak Power ............ 40 Watts
Frequency Response 60 Hz~ 20,000 H1
Sensitivity ..... 91 dB/W at 1 m
e Impedance ..4 ohms

Weight per speaker . ..... 380 g/pc

67X 12
M X 72)

45.5113/4)

35.6 (1%)

.

KENWOOD

©1989-1l PRINTED IN JAPAN
BS1-6107-00(T) 1199

mo (23/)
a 93(3" 161
moz (4)

PARTS LIST

1r New parts
Pans without Pans No. are not supplied.
Les articles non mentionnés dans le Pan: No. ne sont pas tournis.
Teila ohne Pans No. warden nicht gqliefen.

UNIT:

mm (inch)

Rel No. New Parts Pans Nu. Dawrlption
E30-0967-OB CABLE SET
E30»1549-08 CORD SET
* FUS-OBGB-OB PROTECTOR
N99-0083-OB SCREW SET
TIE-011508 SPEAKER

IKENWOOD follows a policy 1:! cuminuous advancemems in asvalopmum.

For m: reason specifications may he changed wlthou! noticeJ
