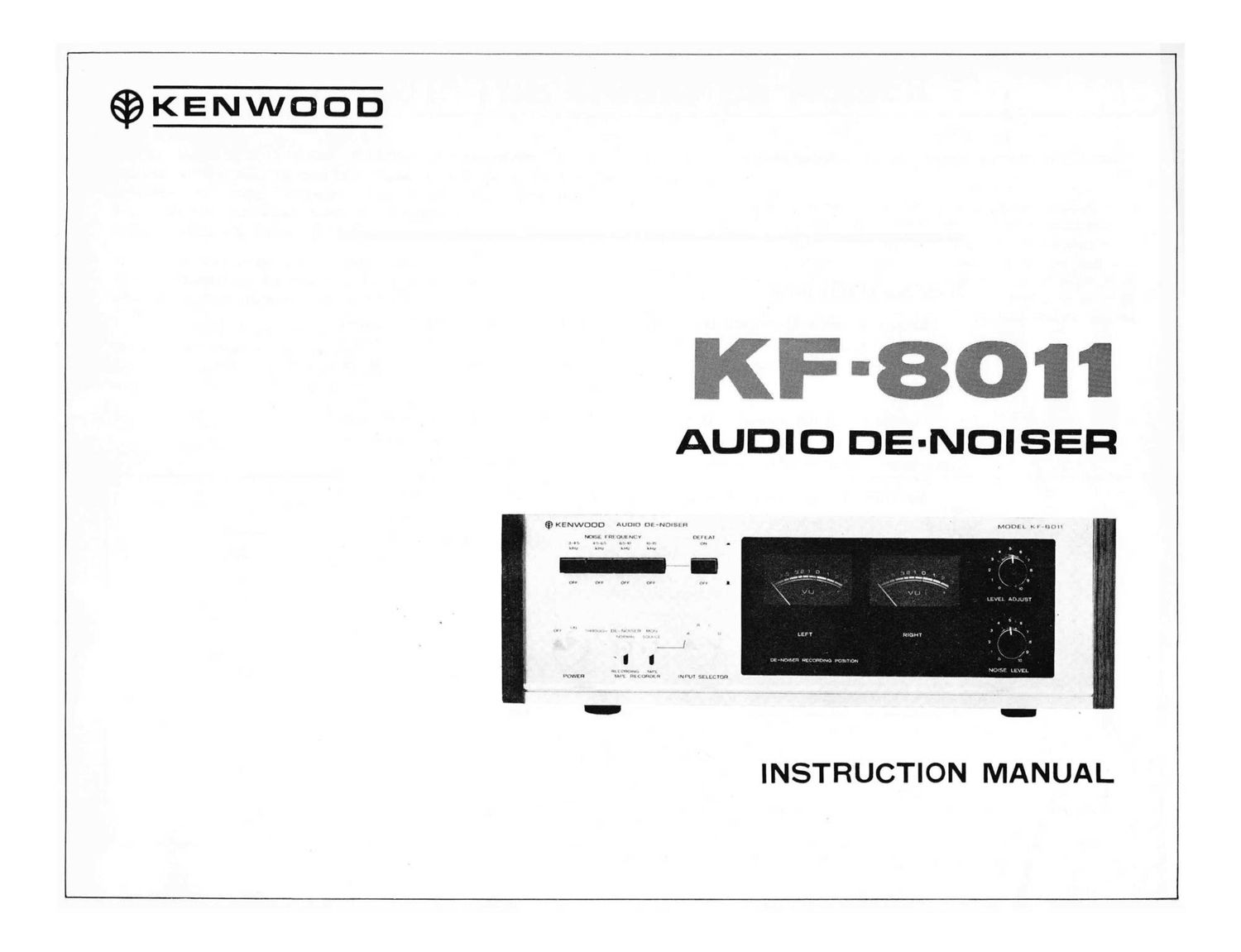

Kenwood KF 8011 Owners Manual

This is the 12 pages manual for Kenwood KF 8011 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12

Extracted text from Kenwood KF 8011 Owners Manual (Ocr-read)

Page 2

l. CONNECTING TO AMPLIFIER

Connecting cables with plug are supplied with this unit. Connect
INPUT of KF-8011 to the recording jack (REC) of amplifier. Connect
OUTPUT to PLAY jack of amplifier. Be sure that the left and right
channels are connected correctly. (See Figure 4).

2. CONNECTING TO TAPE RECORDER

Connect recording jack (REC) of KF-8011 to LINE INPUT of tape
deck and PLAY jack to LINE OUTPUT, respectively. A single connec-

tion can be made with a standard 5 pin RP (DIN) connecting cable.
(See Figure 4.).

3. OPERATION

Observe normal operating procedure for your amplifier, tuner or
tape recorder. Check all connections to make sure they have been made

ﬁ-l J

AMPLIFIER

l w e «29 ®© W

l @113 e o o o

l [- .1). 0 l
L._.I o «

I ° Set Tape Monitor Swutch of amplifier to PLAY.
TAPE RECORDER 0 Connect program source to INPUT ol amplifier.
W. _ .. . Set Selector Swutch in accordance With program

Figure 4. lnterconnecting Diagram
