Kenwood KDSP 100 Owners Manual

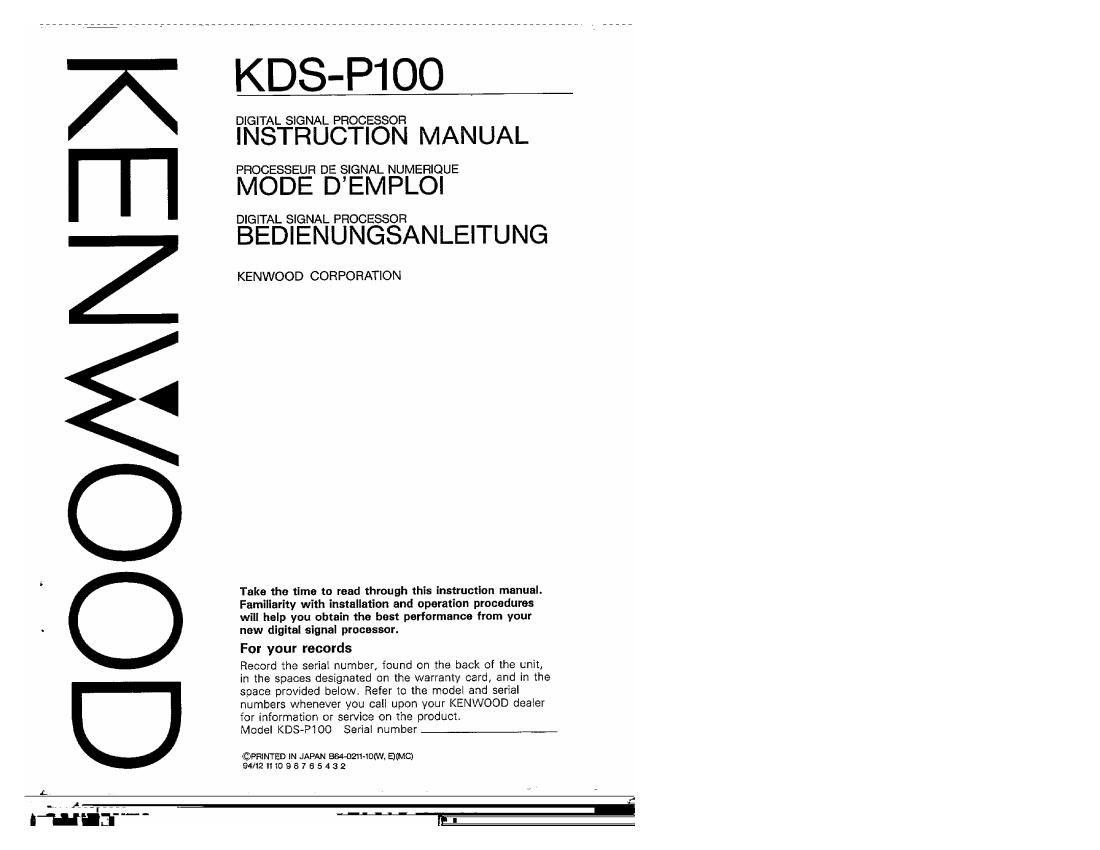

Page 1

KDS-P1OO

DIGITAL SIGNAL PROCESSOR

INSTRUCTION MANUAL

PROCESSEUFI DE SIGNAL NUMERIQUE

MODE DEMPLOI

DIGITAL SIGNAL PROCESSOR

Z BEDIENUNGSANLEITUNG
KENWOOD CORPORATION

in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer
for information or service on the product.

Model KDS-PIOO Serial number

I Take the tlme to read through this instruction manual.
Familiarity with installation and operation procedures
will help you obtain the best performance from your

- new digital signal processor.

For your records
Record the serial number, found on the back of the unit,

©PRINTED IN JAPAN 364.0211-iorw, ENC)
94/12Ii1098765432

Page 2

SAFETY PRECAUTIONS

A WARNING

Observe the following instructions to
prevent fires end personal injury.

0 When the Power supply lead or
Ground lead are extended, use a
0.75 mm2 (AWG 18) or larger
automotive grade cable which will
withstand friction and heat to safe
guard against fires occurring as a,
result of short-circuiting.

0 Make sure that metal objects,
particularly needles or coins do not
get into the unit to prevent short-
circuiting and fires.

' lf smoke comes out of the unit'or a
strange smell is present, disconnect
the unit immediately and consult your
KENWOOD dealer. Continued use
under these circumstances could
cause a fire, as well as damage the
unit permanently.

A CAUTION

Heed the following instructions to keep
the unit in proper working order.

0 The unit should be connected to a
12 V DC power supply with a minus
ground connection.

0 Do not open enclosures. such as the
front panel, top or bottom covers.

0 Do not place the unit where it will be
exposed to direct sunlight or near
heating devrces.

0 Do not dash water on the unit.

0 Do not place the unit in areas of
excessive dust, high humidity or on
unstable surfaces.

NOTE

0 If you have difficulty in installing the
set in your car, please contact your
KENWOOD dealer.

I If your set malfunctions or operates
abnormally, first press the Reset
button. If the malfunction persists,
leave the set as it is and please call
your KENWOOD dealer.

Reset button

I Always use a four-speaker system
(front and rear) with this unit. to enjoy
the DSP effects.

Cleaning

1. Turn the power off, before cleaning
the unit.

2. Wipe the front panel and other
exterior surfaces of the unit with a
soft dry cloth or a soft cloth lightly
moistened with a neutral detergent.

A CAUTION

I Do not use abrasive pads, thinner
or benzene (or other volatile
solvents] to clean the unit as this
may remove indicator characters.

FCC WARNING

This quipment may generate or use
radio frequency energy. Changes or
modifications to this equipment may
cause harmful interference unless the
modifications are expressly approved in
the instruczion manual. The user can lose
the authority to operate this equipment it
an unauthorized changes or modification
are made.
