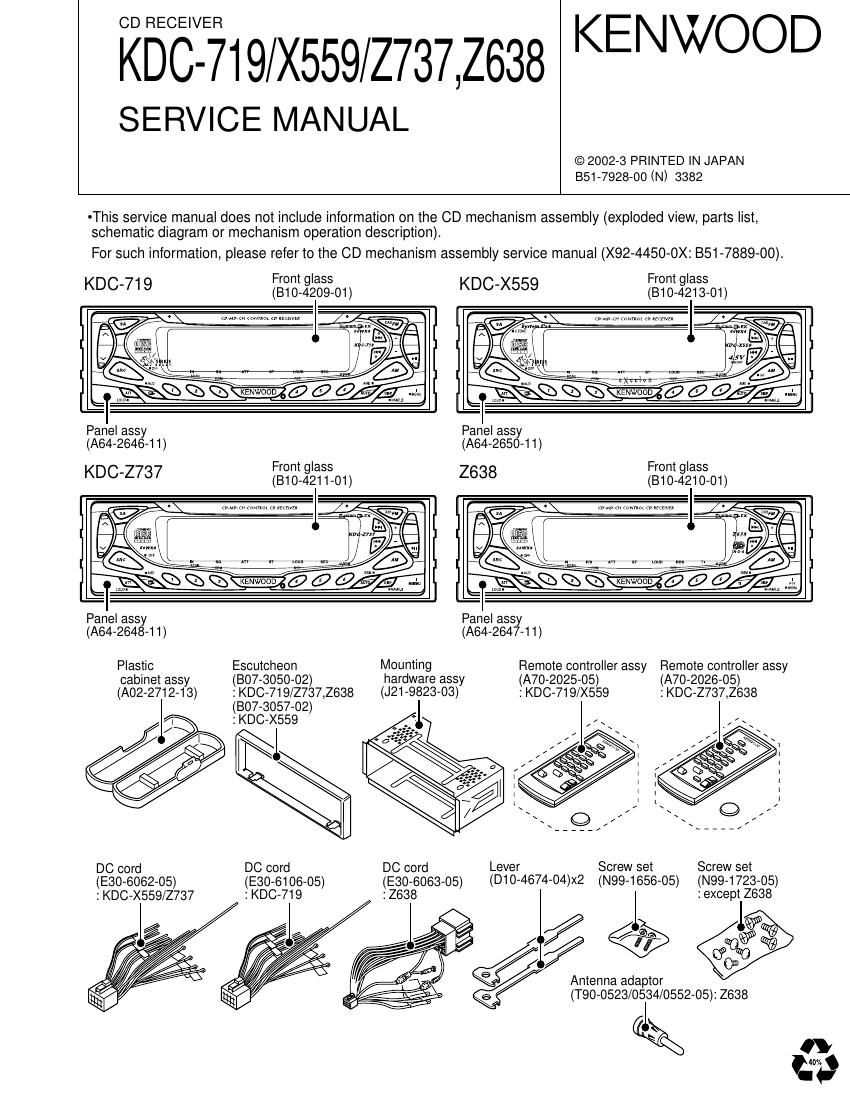

KDC-719/X559
/Z737,ZG38

TEST MODE

11. Method of the span switching (K and M type only)

While holding the Preset 1 and Preset 5 keys, reset the unit.

12. Other specifications

- No displays such as CODE OFF" during PowereON.

- Pressing the TI (AUTO) key during changer operation turns on
ZZone. Cancel by pressing the TI (AUTO) key again. The P/S
dot is lit during 2zone.

- In the case of 2 PREOUT model with Non Fader output, Each
pressing and holding the ATT key for 1 second or more during
All OFF, Non Fader output is switching Rear output or Non
Fader output.

- In the case of 2 colors key illumination model, Each press the
ATT key during All OFF, the key illumination is switching Green
or Red

- Security-related information
1. Forced Power ON mode (All models)
Even when the security (Cord) is approved, resetting the unit
while holding the ATT and Preset 4 keys makes it possible to
turn the power ON for 30 minutes.
After 30 minutes have elapsed, it is not possible to return to the
previous condition unless the unit is reset again.
2. Method of registration of the security code after EEPROM
(Tuner Unit Ass'y) replacement (Code security model)
1. Enter the test mode. (See 1. How to enter the test mode)
2. Press the PLAY/PAUSE key to enter the Menu mode.
3. When the message Security is displayed, press and hold
the Track Up/Down key for 1 second to enter the security reg»
istration mode.

4. Enter the code using the FM/AM/Track Up/Track Down keys.
- FM key: Number up
- AM key: Number down
- Track Up key: Cursor right shift
- Track Down key: Cursor left shift

5. Hold down the Track Up key for at least 3 seconds and the
message, REeENTER appears, so once again enter the
code according to Step 4 above

6. Press and hold the Track Up key for 3 seconds until AP,
PROVED is displayed.

7. Exit from the test mode. (See 2. How to exit from the test mode)
(Note) All Clear is not applicable to the security code of this
model.

3. Simple way to clear the security code (K type only)

1. During code request mode, press the VOL UP key for at least
3 seconds while holding down the DISP key. (m, will disap»
pear)

2. Enter, KCAR with the remote controller as described below.
(Same as on 01 model.)

- Press the remote controller 5 key twice, and press the Track
Up key. (Enters a K")

- Press the remote controller 2 key three times, and press the
Track Up key. (Enters a 0")

- Press the remote controller 2 key once, and press the Track
Up key. (Enters an A")

- Press the remote controller 7 key twice, and press the Track
Up key. (Enters an Fl)

3. Security function is canceled and unit sets to AlleOff mode.

4. Code request mode appears if a mistake was made in enter,
ing the numbers.
