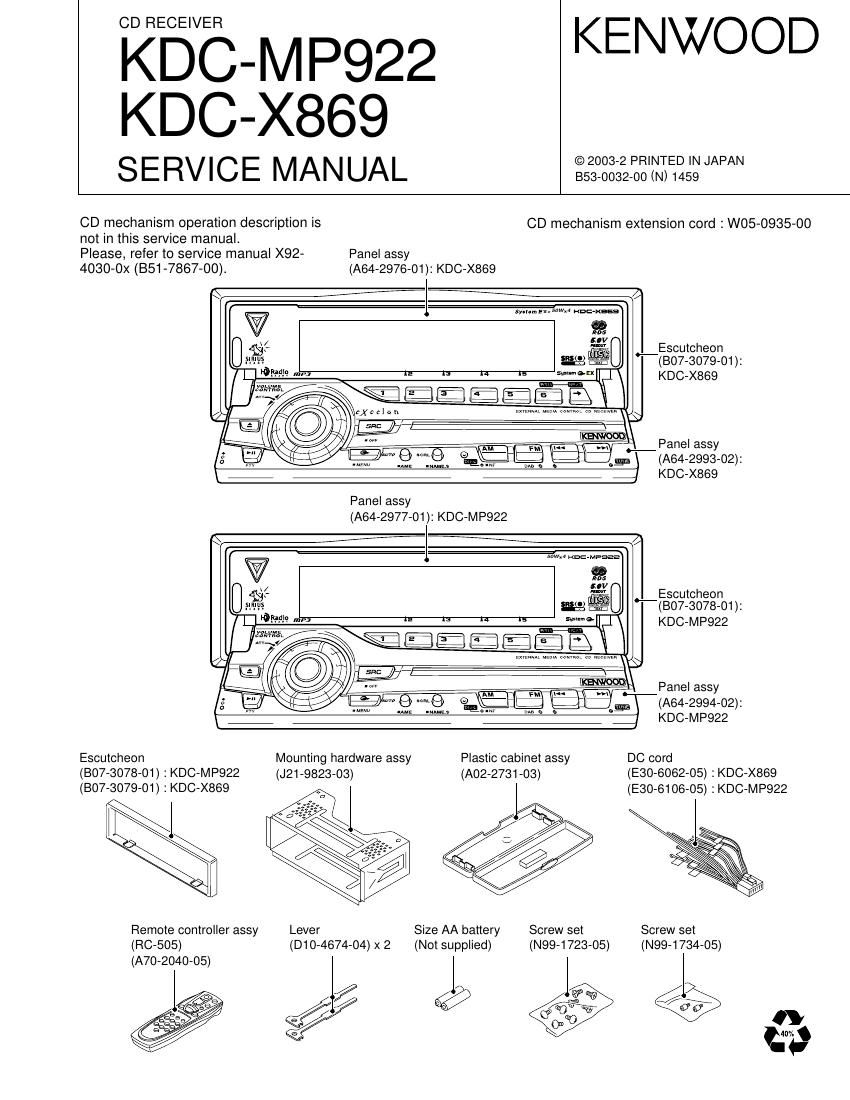

Kenwood KDCX 869 Service Manual
This is the 44 pages manual for Kenwood KDCX 869 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KDCX 869 Service Manual (Ocr-read)
Page 2
KDC-MP922/X869
HOW TO THE PANEL MECHANISM ASSEMBLY
1. Fixed the position of operation side A ,
(Fixed the horizontal position when the panel opened) 1' ~ .
. . . . Rotary to the .
(D The mounting hardware (281) of operation side is rota- stop position
tion (A) into the stop position with close side.
(2) As figure (B) line is just above and the gear (230) at-
tached to pin.
281
Fig. B
2. The slider assembly insert to bottom chassis
CD The bracket for display panel (284) is leave down, in-
sert to the chassis (702). (C)
(2) The slider assembly insert to the chassis (702) after
that shift (D) direction.
(3) The bracket for display panel (284) is raised (E) direc-
tion.
GD Keep the raising conditions, the slider assembly is shift
(F) direction.
(Note) Do not bend the knob of chassis detection switch
when the slider assembly insert.
