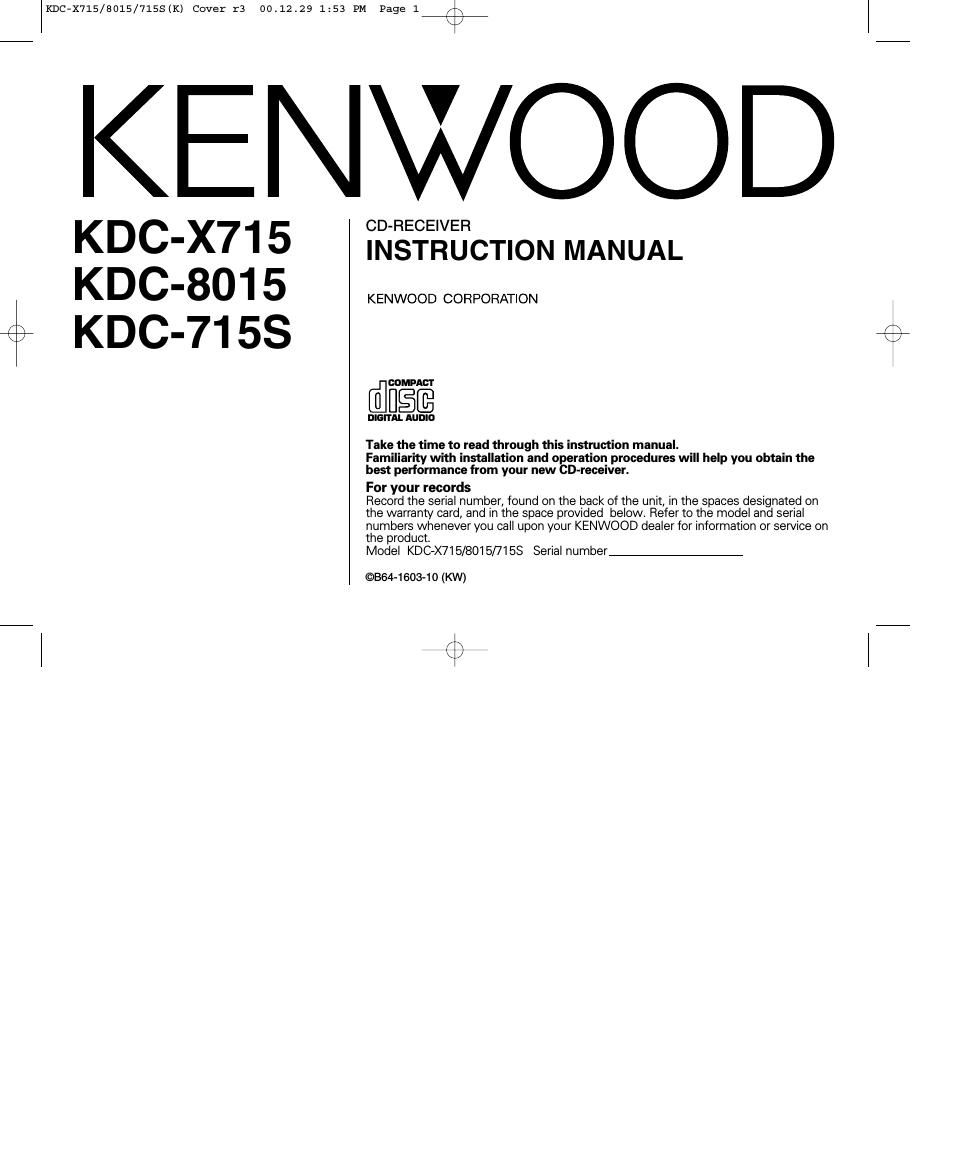

KDC7X715/8015/7158(K) Cover r3 00.12.29 1:53 PM Page 1 *
K3

KENWOOD

KDC-X715
KDC-8015
l KDC-715$

CD-RECEIVER

INSTRUCTION MANUAL

KENWOOD CORPORATION

COMPACT

urge

DIGITAL AUDIO

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the
best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provrded below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or service on
the product.

Model KDC7X715/8015/715S Serial number

©BG4-1603-10 (KW)

(:2

Page 2

KDC7X715_U.S_r9

English

00.12.26 3:47 PM Page 2

Contents

Handling Compact discs.

General features
Power.
Switch 9
Volume.
Attenuator
Loudness .
Audio Control Setting
Mobile Preset.....
Switching Display
NonaFading Output
Forced Closing
Faceplate Angie Adjustmen
Removing the Faceplate.....

Tuner features
Tuning .......................
Station Preset Memory
Auto Memory Entry
Switching Display f
Station Name Preset (SNPS .
Station Name Preset Play (SNPP)

EDS features
RDS (Radio Data System)
Alarm.....
Program ype (PTY) unction
Registration of a station as a PTY
Radio Text Scroll .......................

CD/External disc control features
Playing CDs .....
Playing Other Disc mode
Fast Forwarding and Reversing Disc Play.
Track Search
Disc Search ..
Direct Track Search
Direct Disc Search

Disc Scan .
Random Play

Magazine Random Play
Switching Display for Di
Text Scroll ...........
Presetting Disc Names I ).
Disc Name Preset Play (DNPP)

Menu settings
Menu System .....
Touch Sensor Tone.
Manual Time Adjustment
Calendar Adjustment .
Calendar Mode.
Memo Mode.
Automatic Time Adjustment
Security Code...
Selectable Illumination
Contrast Adiustmen
Dimmer .........
Switching Grap
Black Mask .............
Time setting for removmg the faceplate
Switching preout.
Dual Zone System
KEX/ecA/dB (Sound Coordinate system).
External Amp Control....
Manual Open Button Setting
Traffic Information Function
Clean Reception System C
AF (Alternative Frequency) Function.
Text Scroll .....

Basic Operations of remote

Installation
Accessories ............
Installation Procedure
Connecting Wires to Terminals.
Locking the faceplate to the unit
Installation (nonaJapanese cars).
Removing the Unit.
Installation (Japaneseacars

Troubleshooting Guide
Specifications .......................................................... 49

_2_

Page 10

KDC7X715_U.S_r9 00.12.26 3:47 PM Page 10

4%

General features

fi Function ofthe KDC-X715 Function of the KDC-X715
E, "TreF" : Adjust the center frequency of the treble. "HPF F" : Adjust the frequency a! the High-pass filter for front
LEI S tting values: 10.0 / 12.5/ 15.0 / 17.5 kHz output.
Setting values: Through l40Hz / 60Hz / 80Hz / 1OOHz/ 120Hz/
This mode is avallable only when the Sound coordinate system is 150Hz/ 180Hz/220Hz
on. ( page36).

You can separately set the high-pass filter for front and rear

output,including preouts. The high-pass filter does not affect the
non-fading preout. The factory default settings for front output
and rear output are "through" .
"Treble" : Adjust the treble level.
Setting values: - 8 - + 8
Function of the KDC-X715
"HPF R" : Adjust the frequency of the High-pass filter for rear
"Balance" : Adjust the balance level. output.
Setting values: Left 15 - Right 15

Setting values: Through l40Hz / 60Hz / 80Hz / 100Hz/ 120Hz/
150Hz/180Hz/220Hz

You can separately set the high-pass filter for front and rear

output,including preouts. The high-pass filter does not affect the

non-fading preout. The factory default settings for front output
and rear output are "through" .

"Fader" : Adjust the fader level.
Setting values: Front 15 - Rear 15

Function ofthe KDC-X715 Function of the KDC-X715
"NFsl-efigfi'g";;liff 2'1; Of-{Eding 0MP "PW-l- "LPF NF" .- Adjust the frequency of the Law-pass filter for Non-
' ' _ Fading output.
Setting values: 50 Hz/80 Hz/ 120 Hz/Through
-This mode is available only when the non-fading output function E
is set to on.
- Not available during the Dual zone system is on.

IThis mode is available only when the non»fading output function
is set to on.

- Not available during the Dual zone system is on.

® 7
