Page 2

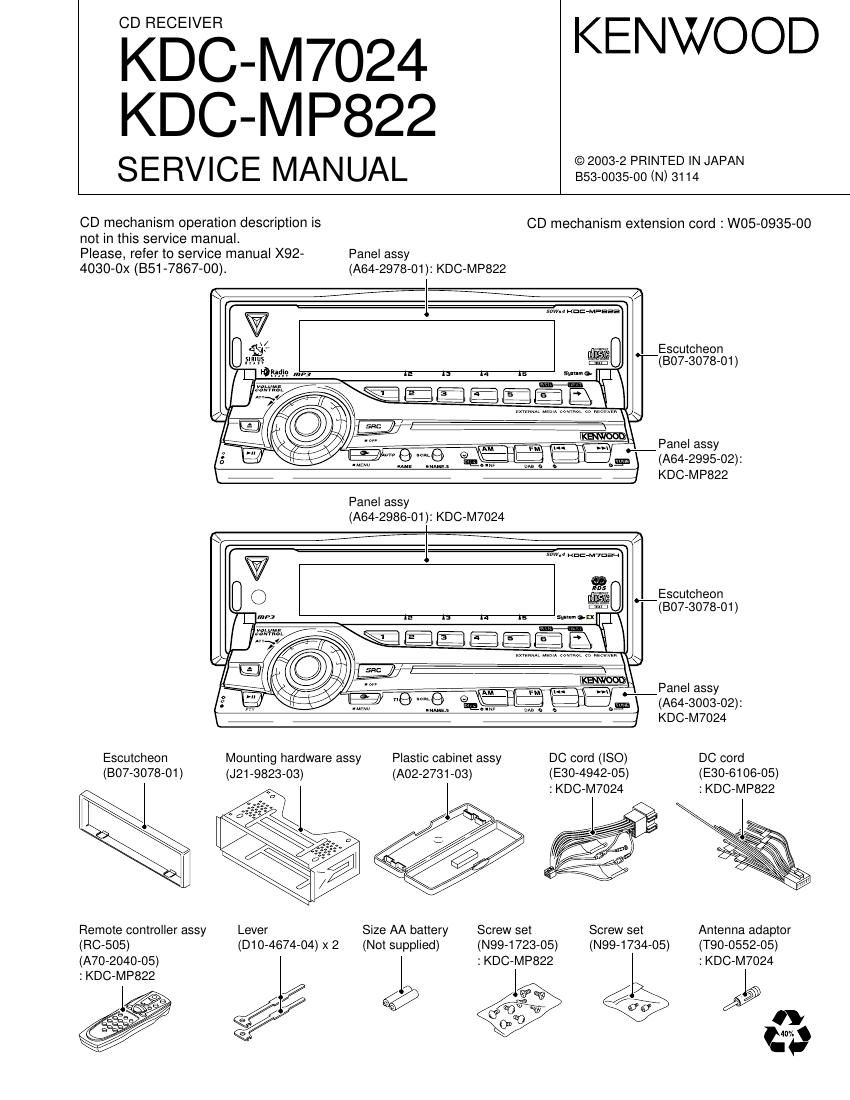

KDC-M7024/M P822
HOW TO THE PANEL MECHANISM ASSEMBLY
1. Fixed the position of operation side A
(Fixed the horizontal position when the panel opened)
CD The mounting hardware (281) of operation side is rota-
tion (A) into the stop position with close side.
C2) As figure (B) line is just above and the gear (230) at-
tached to pin.
Rotary to the 281
stop position
Fig. B
2. The slider assembly insert to bottom chassis
CD The bracket for display panel (284) is leave down, in-
sert to the chassis (702). (C)
(2) The slider assembly insert to the chassis (702) after
that shift (D) direction.
(3) The bracket for display panel (284) is raised (E) direc-
tion.
GD Keep the raising conditions, the slider assembly is shift
(F) direction.
(Note) Do not bend the knob of chassis detection switch
when the slider assembly insert.
