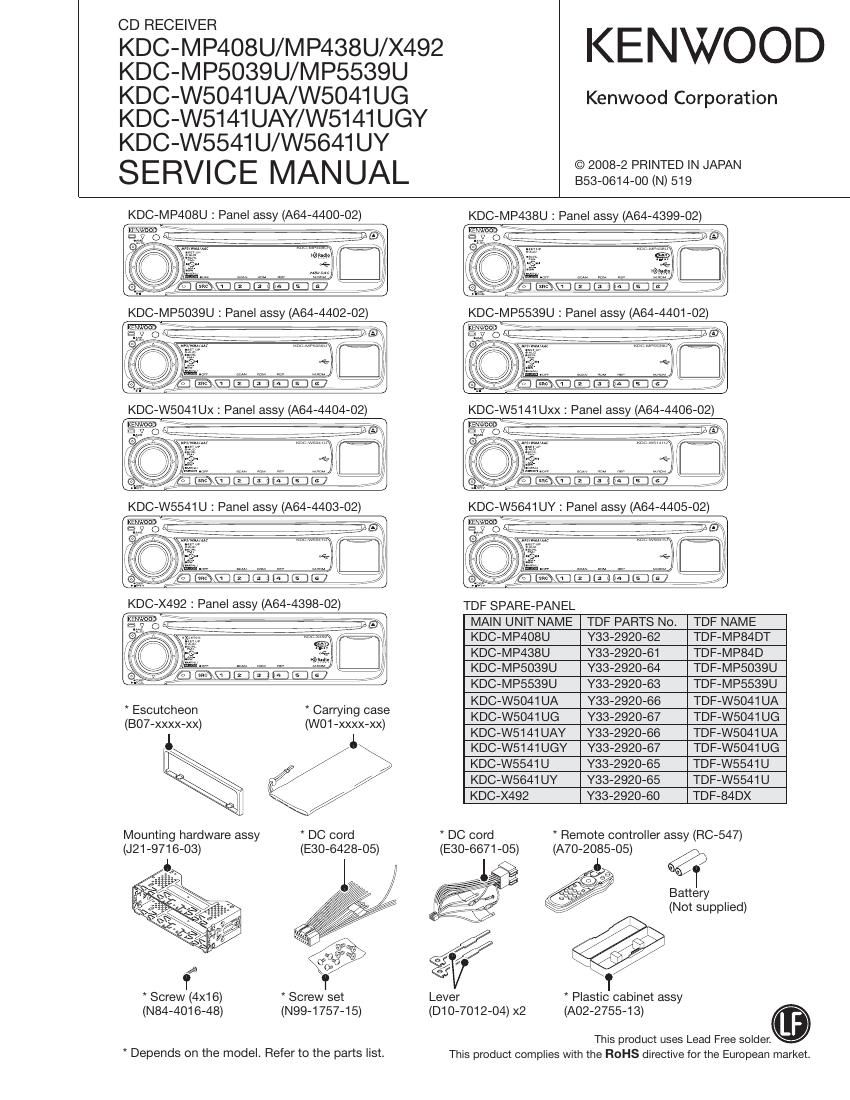

Kenwood KDCMP 408 U Service Manual

Page 13

I Audio-related test mode

KDC-MP408U/MP438U/X492/MP5039U/MP5539U/W5041UA/
W5041UG/W5141UAY/W5141UGY/W5541U/W5641UY

TEST MODE

Procedure

Note

Press the [AUD] key (main unit)

Press the [AUD] and [e] keys (Remote control)

Enter audio adjustment mode (the initial item should be Fader, and then, Balance a
Bass Level a Middle Level a Treble Level a SW Level a System O a HPF Front a
HPF Rear a LPF Sub Woofer). (Then after, any adjustment can be done.)

About audio adjustment items (include both Audio Function Mode and Audio Setup Mode)

Procedure Item Procedure Description
Fader [VOL] knob and [I44 / >>|] key Adjust to 3 steps of R15 <-> 0 <-> F15. (Default value: 0)
Balance [VOL] knob and [I44 />>|] key Adjust to 3 steps of L15 <-> 0 <-> R15. (Default value: 0)
Bass Level [VOL] knob and [I44 / >>|] key Adjust to 3 steps of -8 <-> 0 <-> +8. (Default value 0)
. Middle Level [VOL] knob and [I44 / >>|] key Adjust to 3 steps of -8 e O <-> +8. (Default value 0)
foOrIA/ltaerging Treble Level [VOL] knob and [I44 / >>I] key Adjust to 3 steps of -8 (-> 0 <-> +8. (Default value 0)
procedure, HPF Front [VOL] knob and [I44 / >>|] key Adjust to 2 steps of Through <-> 180Hz. (Default value: Through)
press [AUD] HPF Rear [VOL] knob and [I44/>>|] key Adjust to 2 steps of Through <-> 180H2. (Default value: Through)
Rafi}; LPF Sub woofer [VOL] knob and [I44 / >>I] key Adjust to 2 steps of 60Hz 9 Through. (Default value: Through)
LPF Subwoofer Phase [VOL] knob and [I44 / >>|] key Adjust to 2 steps of Normal <-> Reverse. (Default value: Normal)
Volume Offset [VOL] knob and [I44 / >>|] key Adjust to 2 steps of -8 <-> 0 . (Default value 0)
Loudness [VOL] knob and [I44 / >>|] key Adjust to 2 steps of OFF <-> ON . (Default value OFF)
Dual Zone [VOL] knob and [I44 / >>|] key Adjust to 2 steps of OFF <-> ON . (Default value OFF)

I MENU-related test mode

Procedure

Note

Press the [M.JOG] key (main unit)
Press the [DNPP/SBF] and [DIRECT] keys (Remote control)

Continuous forwarding by remote control is prohibited

I Backup current measurement

Procedure

Note

While Acc OFF (Back Up ON), Reset

MUTE terminal is OFF after 2 seconds, not after 15 seconds.
(During this time, the CD mechanism does not function.)

I PREOUT switching

Procedure Note
In the STANDBY source, press and hold [AUTO] key for .
Swntches PREOUT
1 second or longer
I Dual Zone switching
Procedure Note

[n the except STANDBY source, press the [AUTO] key.

Switches ZONE2 ON/OFF (Default OFF)

13
