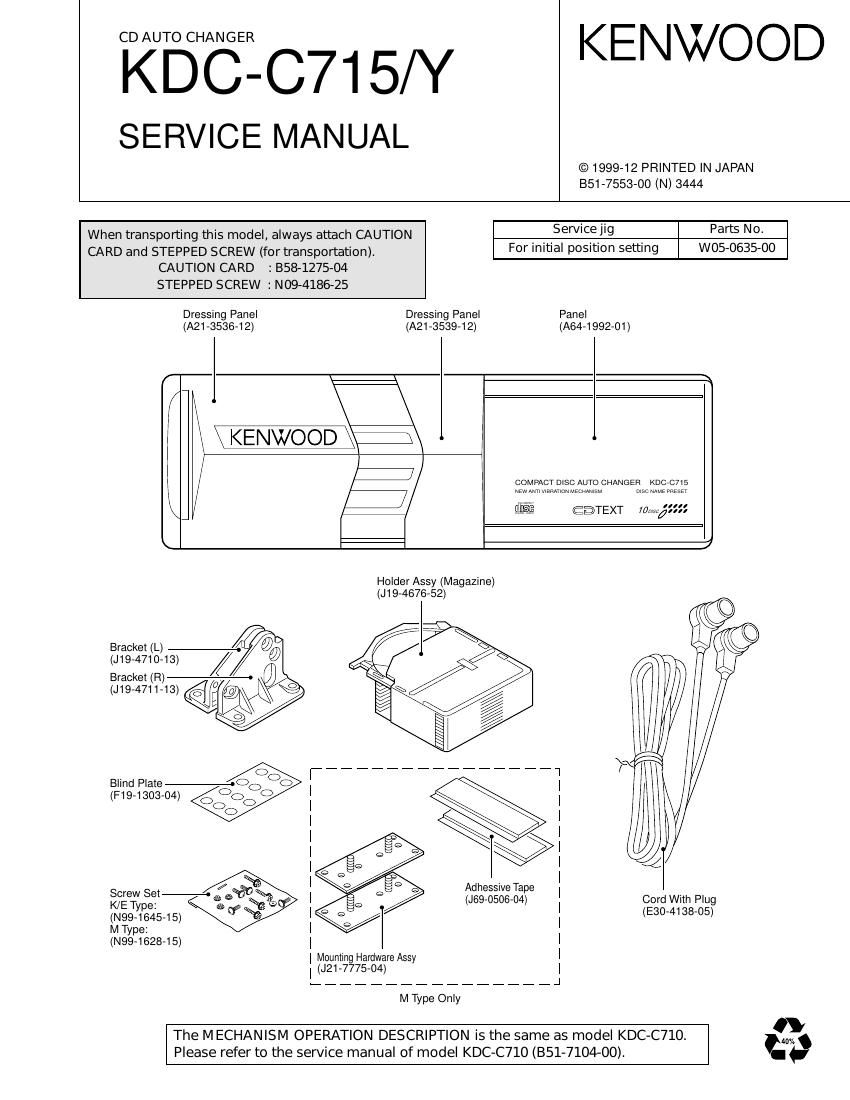

CDAUTOCHANGER KENWOOD
KDC-C715/Y
SERVICE MANUAL
© 1999-12 PRINTED IN JAPAN
351-7553-00 (N) 3444
When transporting this model, always attach CAUTION Service jig
Paris No.
CARD and STEPPED SCREW (for transportation). For initial position setting
W05-0635-00
CAUTION CARD : B58-1275-04
STEPPED SCREW : N09-4186-25
Dressing Panel Dressing Panel Panel
(A21-3536-12) (A21-3539-12) (A64-1992-01)
i COMPACT DISC AUTO CHANGER KDC-C715
i W W mum MECHANISM m WE my
' was CETEXT zoo/55555:;
Holder Assy (Magazine)
(J19-4676-52)
Bracket (L)
(J19-4710-13)
Bracket (Fl)
(J19-4711-13)
Screw sag. 5:
WE Type:
Adhessive Tape
(J69-0506-04)
(N99-1645-15)
M Type:
(Neg-162845)
i Mounting Hardware Assy
(J21-7775-04)
7777777777777777 J
M Type Only
Cord With Plug
(E30-4138-05)
The MECHANISM OPERATION DESCRIPTION is the same as model KDC-C710.
Please refer to the service manual of model KDC-C710 (B51-7lO4»00).
