Kenwood KDCC 66 FM Owners Manual

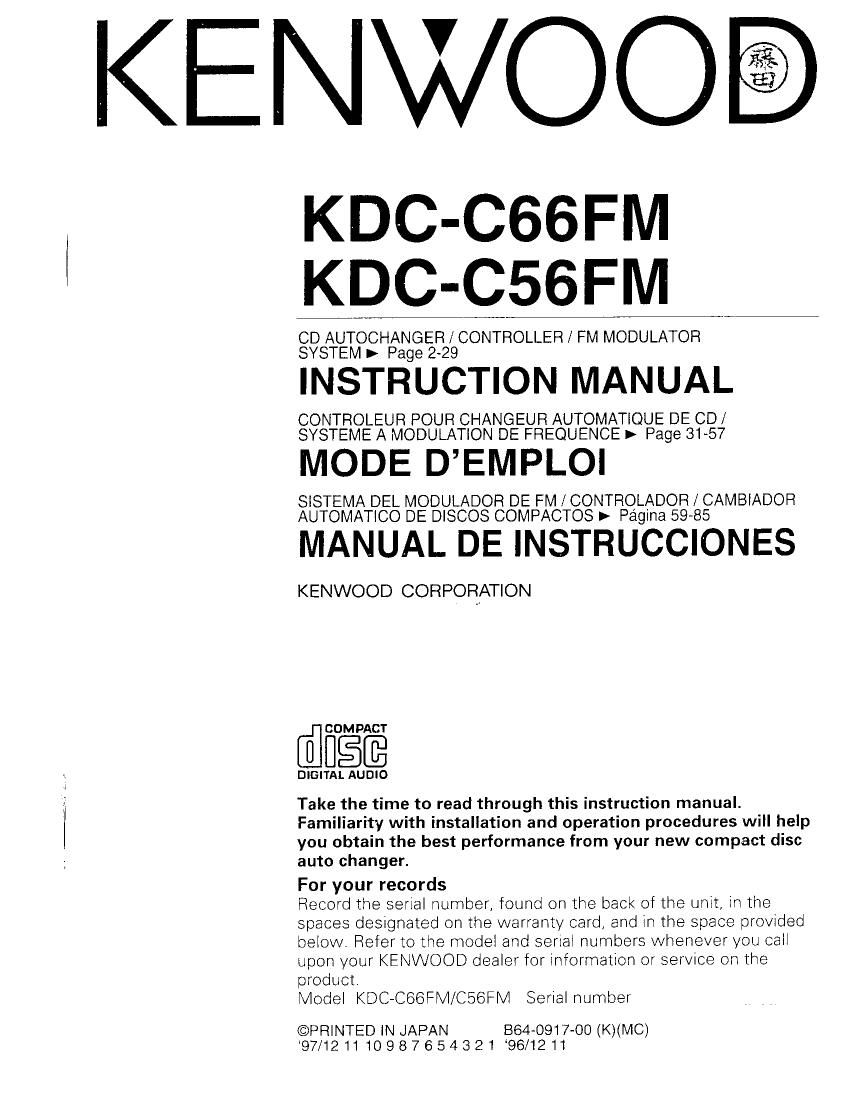

Page 1

KENWOO

KDC-C66FM
KDC-CSGFM

CD AUTOCHANGER / CONTROLLER / FM MODULATOR
SYSTEM > Page 2-29

INSTRUCTION MANUAL

CONTROLEUR POUR CHANGEUR AUTOMATIQUE DE CD/
SYSTEME A MODULATION DE FREQUENCE > Page 31-57

MODE DEMPLOI

SlSTEMA DEL MODULADOR DE FM / CONTROLADOR / CAMBlADOR
AUTOMATlCO DE DISCOS COMPACTOS > Pagina 59-85

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

COMPACT

filtrate

DIGITAL AUDIO

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help
you obtain the best performance from your new compact disc
auto changer.

For your records

Record the serlal number, found on the back of the unlt, in the
spaces designated on the warranty card, and in the space provided
below. Refer to the model and serlal numbers whenever you call
upon your KENWOOD dealer for information or service on the

product.
Model KDC-CBBFM/CSGFM Serial number
©PR|NTED IN JAPAN 864-0917-00 (K)(MC)

97/121110987654321 96/1211

Page 2

Contents

Before use
Warning ............................................................................................................ 3
Safety precautions ............................
Handling compact discs ...............
Features ............................................................................................................ 7
Loading compact discs .................................................................................... 8

Disc changer control features
CD play with CD auto~chang'er ...................................................................... 10
Track/Disc search .......................

Direct track/disc search ..............

Track repeat .................................

Disc repeat ......

Track scan ....................................................................................................... 15

Disc scan ......................................................................................................... 16

Disc random play ......................... 17

Magazine random play .................................................................................. 18
Installation

Changing the transmission frequency ......................................................... 19

Modulation level/Dynamic control ............................................................... 20

Installation procedure .................................................................................... 21

Connections .......................... ....22

Installation ............................................................................. 23
Troubleshooting guide ................................................................. 27
Specifications ............................................................................... 29

2 English

Page 15

Track scan

KENWOOD

(Supplied with the KDC-CBBFM)

i
l
i 1 2 To selectatrack

samme; Ionuoo Jafiueqo osig

Press the Track scan button. Press the Track scan button.
The Track scan indicator will appear The Track scan indicator disappears
on the display and the player will play and the Track scan is cancelled,
the first 10 seconds of each track in Normal playback starts.
SUCCeSSlOnt NOTE
_ m, _ 0 When disc play stops, Track scan is
> I I I _ cancelled.
L. I _l c When all tracks on the disc you are
@E listening to are scanned, Track scan
is cancelled.

English 15

Page 21

Installation procedure

l.Remove the ignition key and disconnect
the negative (-l terminal of the battery to
prevent short circuits.

2. Connect the input and output cables of
the units.

3. Connect the ground cable, battery cable,
and ignition cable of the wiring harness
in the order listed.

0

4. Install the unit in the car.

5. Connect the negative (-l terminal of the
battery.

6. Press the Reset button

Removing the transportation screws

Transportation
screws

ACAUTION

If the fuse blows, check cables for
shorts, then replace the fuse with one of
the same rating.

Checl< that no unconnected cables or
connectors are touching the car body.
Do not remove caps from unconnected
cables or connectors to prevent short
circuits.

uoitenetsui

After installation, check that the brake
lamps, Winkers, and wipers work

properly.

Insulate unconnected ends of cords with
vinyl tape or similar.

Use only the supplied screws for
installation. Use of any other screws
may damage the unit.

Remove all 3 transportation
screws (minus) for protecting the
internal mechanism before you
start to install the unit.

NOTE

After removing the transport
screw, retain it carefully and
attach it again before transporting
the unit again.

English 21

Page 22

Connections

DiSplay unit
.i 5
"JETS. 5.

Control output

installation

Changer connection cable

_ Output

RF modulator unit

Control input

FM/AM antenna input Antenna plug for
/ %fl: 4-. automobile
CD auto»changer
mp FM/AM antenna output Car stereo With
'4) FM tuner
@ -3 :: Ignition key
ignition cable (-9 (Red) ACC SWItch
+ \W
B 4
attery cable 63 (Yellow) Car fuse box
Ground cable (Black) (9 (To car chassis) I? J1
4
Battery
AWARN I NG

To prevent fire when the ignition wire (Red) or battery wire (Yellow) is short-
ciranted by coming into contact with the vehicle chassis (ground), only
connect the power supply after making the fuse box connections.

NOTE

Do not install an antenna of radio equipment or distribute the antenna cable
near the changer output cable, for this could cause malfunction with this unit.

22 English
