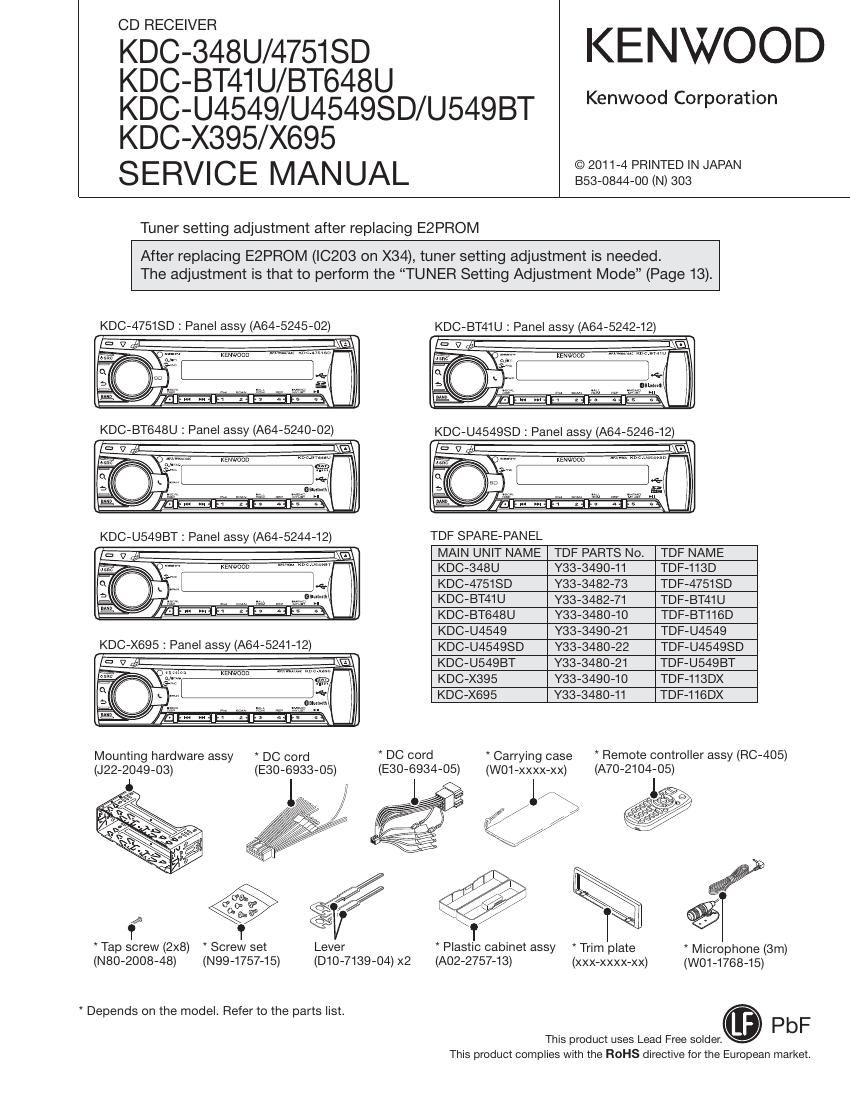

Kenwood KDCBT 648 U Service Manual
This is the 50 pages manual for Kenwood KDCBT 648 U Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KDCBT 648 U Service Manual (Ocr-read)
Page 5
KDC-348U/47518D/ BT41 U/ BT648U
/U4549/U45498D/U54QBT/X395/X695
COMPONENTS DESCRIPTION
0 CD PLAYER UNIT (X32-6250-02)
Ref. No. Application / Function Operation / Condition / Compatibility
_ Driver for focusing & tracking coil, driver for sled & spindle motor, and operation
[CS 4ch BTL Driver , . . ,
for disc loading & ejection.
[C4 Servo DSP with built-in Audio DAG With built-in MPS/WMA/ACC decoder and 1M-bit-SRAM.
ic5 BU1.5V/D3.3V REG. Power amp for B_U_1'5V' _
Power supply for digital/analogue/audio 3.3V.
01 AFC (Auto Power Control) Drives LD (Laser Diode).
Switches ON/OFF at one end of BU1.5Vline which is separated into 2 directions.
014 D1 .5V Output
Uses output voltage as D1 .5\/.
Prevents reverse bias which is applied to laser.
Laser destruction prevention.
D2 Laser Diode Protection
D3,4 Static Electricity Countermeasure Prevents malfunction by static electricity.
