Kenwood KDC 9007 Owners Manual

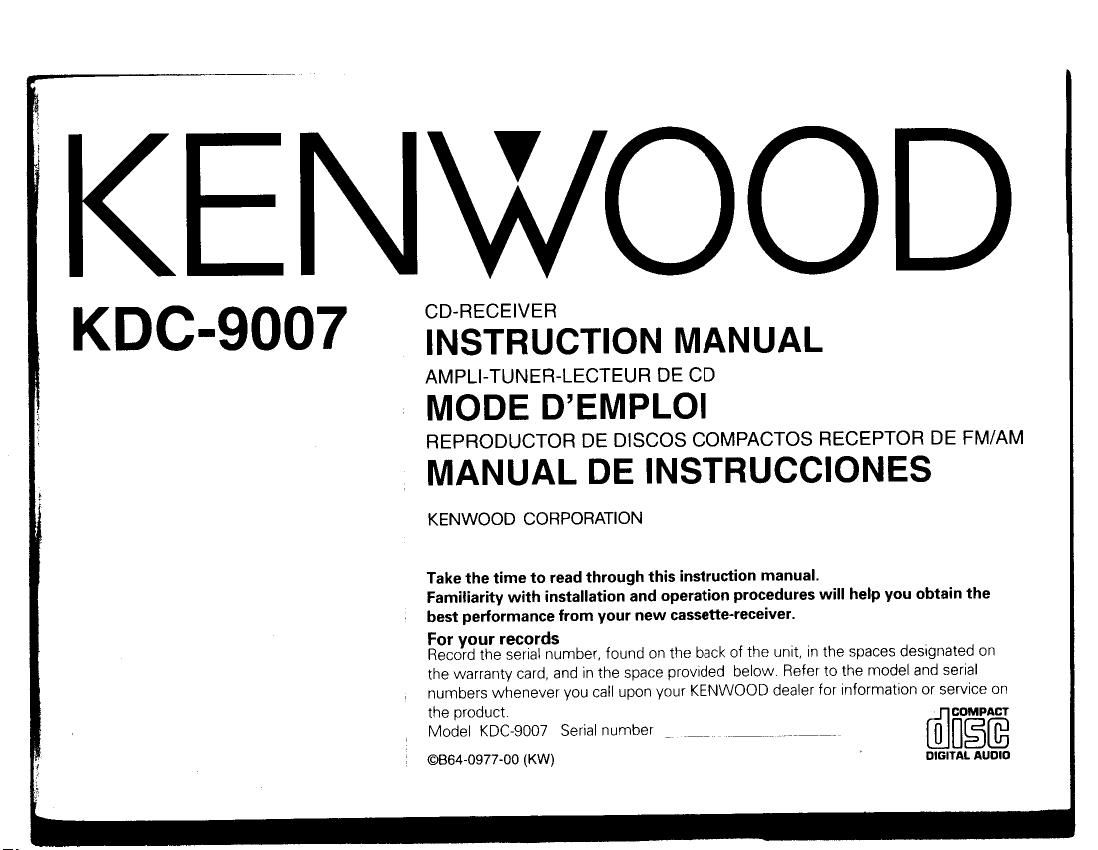

Page 1

KDC-9007

KENWOOD

CD-RECEIVER

INSTRUCTION MANUAL

AMPLl-TUNER-LECTEUR DE CD

MODE DEMPLOI

REPRODUCTOR DE DISCOS COMPACTOS RECEPTOR DE FM/AM

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the
best performance from your new cassette-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or service on

the product. cOMPAcr
Model KDC-9007 Serialnumber 7 fl , @]
©BG4-0977-00 (KW) ' DIGITAL AUDIO

l

Page 2

Contents

Before use
Warning ...................
Safety precautions .....
Handling Compact discs
Buttons and Display ...............

'ooumco

Basic operations
Stealth Retraction Mechanism .......
Volume ......... . .
Attenuator.
Loudness .....

Basic operations of remote ........................................ l3

Tuner features

Tuning .......................................
Switching Display for Tuner.
Station Preset Memory.

Auto Memory Entry .........
Clean Reception System Circun
Station Name Preset (SNPS) .............
Station Name Preset Play lSNPPl,
Direct Access Tuning ., . ..........................

RBDS features
RBDS (Radio Broadcast Data System) ..................................... 19

Traffic Informa ion Function ,.
Program Type (PTY) Function .................................................

CD player features
Playing CDs .........................
Switching Display for CDs... .
Fast Forwarding and Reversing Disc Play.
Track Search ................................... .

Direct Track Search . ......... .22

Track Repeat .. .. .................. 23

Track Scan...

Disc changer control features
Playing Discs Using a Disc Changer...

Fast Forwarding and Reversing Disc P y. ...24
Switching Display for Discs ....... 24
Track Search .................... '24
Disc search ........ 25
Track /Disc Repeat 425
Track Scan ...... 25
Disc Scan 26

Random Play .....
Magazine Random Play
Presetting Disc Names
Direct Track Search ..
Direct Disc Search...
Disc Name Preset Play...

Other features
Audio Control Setting ...................
Table of Audio Control Setting ..
Selectable Illumination .......
Clock Display.
Adiusting Time.
Valet Mode... .
Security Code

Installation
Accessories ....................
Installation Procedure,
Connecting Wires to Terminals
Installation (noanapanese cars)
Installation (Japanese Cars) ......
Removing the Unit, .................................................

Troubleshooting Guide ................................................ 37

Specifications ................................................................ 40

Page 16

Tuner features (See page 3)

Switching Display for Tuner
You can change the display used when listening to the radio.

Changing the Display:
Each time you press the CLK button, the display changes as
follows:

Station frequency
V

Program Sen/ice name (during RBDS station receptionl/
SNPS name (only when being preset)
V

Radio text (only during RBDS station reception)
V
Clock

Station Preset Memory

Store the frequency of a station. You can then recall that
station with a single touch of a button.

1 Select the band/station that you want to have stored

2 Press the button (#16) that you want to use lor the station, for
at least two seconds
The button number blinks once in the display to indicate that
the data has been stored.

Recalling a Preset Station:
Press the preset station button (#176) for the desrred station
The number of the recalled station is displayed.

You can store Six stations in each of the FMl, FMZ, FM3, and
AM bands.

Auto Memory Entry

You can automatically store all the receivable frequencies in
the band currently being listened to, and then recall them with
the touch of a button later. This function is especially useful
when you are travelling and do not know what stations are
available. Up to six frequencies can be stored this way.

1 Select the band for which you want to store stations.

2 Press the AME button for at least two seconds to start auto
memory entry.
The numbers of the preset station buttons are shown in order,
When all the stations in a certain band are stored in the preset
memory, the auto memory entry stops The tuner then plays
the last station received.

Recalling a Preset Station:

Press the preset station button (#1-6l for the deSired station
The number of the recalled station is displayed.

Clean Reception System Circuit (CRSC)

Temporarily have reception switched from stereo to mono to
reduce multi-path noise when listening to the FM station.
The factory default for this function is ON.

Turning CHSC On/Olf:
Press the CRSC button for at least one second to turn the
function on/ofl. CRSC ON" is displayed when CRSC is on.

Strong electrical fields (such as from power lines) may cause

unstable sound quality when CRSC is turned on. In such a
Situation, turn it off
