Kenwood KDC 75 R Owners Manual

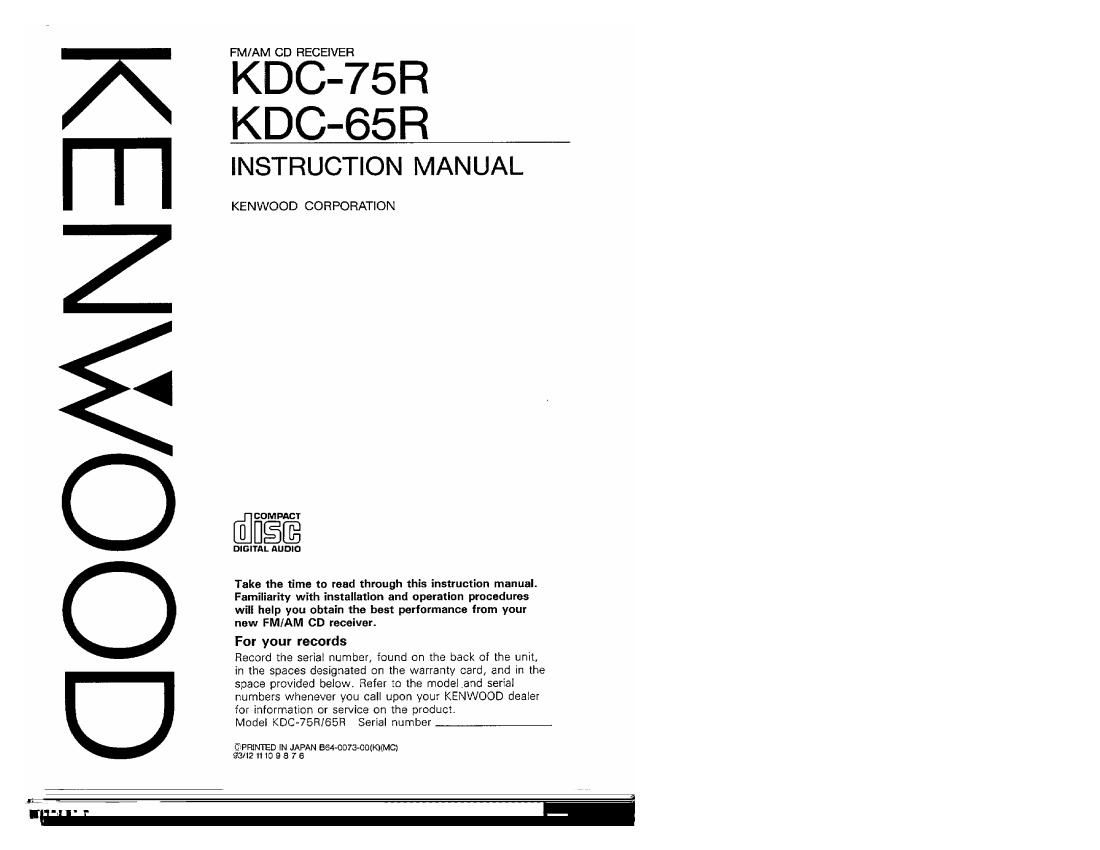

Page 1

FM/AM CD RECEIVER

KDC-75R
KDC-65R

INSTRUCTION MANUAL

KENWOOD CORPORATION

COMPRCT

DIGITAL AUDIO

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures
will help you obtain the best performance from your
new FM/AM CD receiver.

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer
for information or service on the product.

Model KDC-75Fl/65R Serial number

CPFIINTED IN JAPAN BSA-UBTS-OWKNMCJ
Ell/1211109876

Page 2

CONTENTS
*

Page
- WARNING ............................................................................ 3
- BEFORE USE ....................................................... 6
. POWER, VOLUME AND LOUDNESS. 8 _
- AUDIO CONTROL ..................................................................
- SEEK TUNING..,,
. MANUAL TUNING .........
. PRESET STATION TUNING. , 12
. AUTO MEMORY ......................... 13
. COMPACT DISC PLAY ..................... I4
- TRACK SEARCH & TRACK SCAN _. .. Is
- REPEAT PLAY & RANDOM PLAY ............................................. I7
. CLOCK INDICATION AND CLOCK ADJUSTMENT ...........
- SELECTABLE ILLUMINATION ......................... "
- CODE PROTECTION ...............
. INSERTION/REMOVAL OF UNIT ....................
. CHANNEL SPACE SELECTION ....................
. CARE AND MAINTENANCE.
. INSTALLATION .............................................................
. ACCESSORIES .............................................
- CONNECTIONS .............
- INSTALLATION (KDC-75R).

(KDC-65RI .........
- TROUBLESHOOTING GUIDE ....... ..
- SPECIFICATIONS ................................................................... 32
2 (En)
L-fi-I

Page 5

. Do not place the unit in areas of CLEANING
excessive dUSL high humidity 0" on 1. Turn the power off. before cleaning
unstable surfaces. the unit

2. Do not use any type of abrasive pad.
thinner, benzine and any such kind of
objects.

3. Wipe the front panel and other
exterior surfaces of the unit with a
soft dry cloth or a soft cloth lightly
moistened with a neutral detergent,

- If an abnormal smell or smoke is
detected, immediately turn the power
off,

I If yuu have difficulty in installing the
set in your car, please contact your
KENWOOD dealer.

Mini 5
