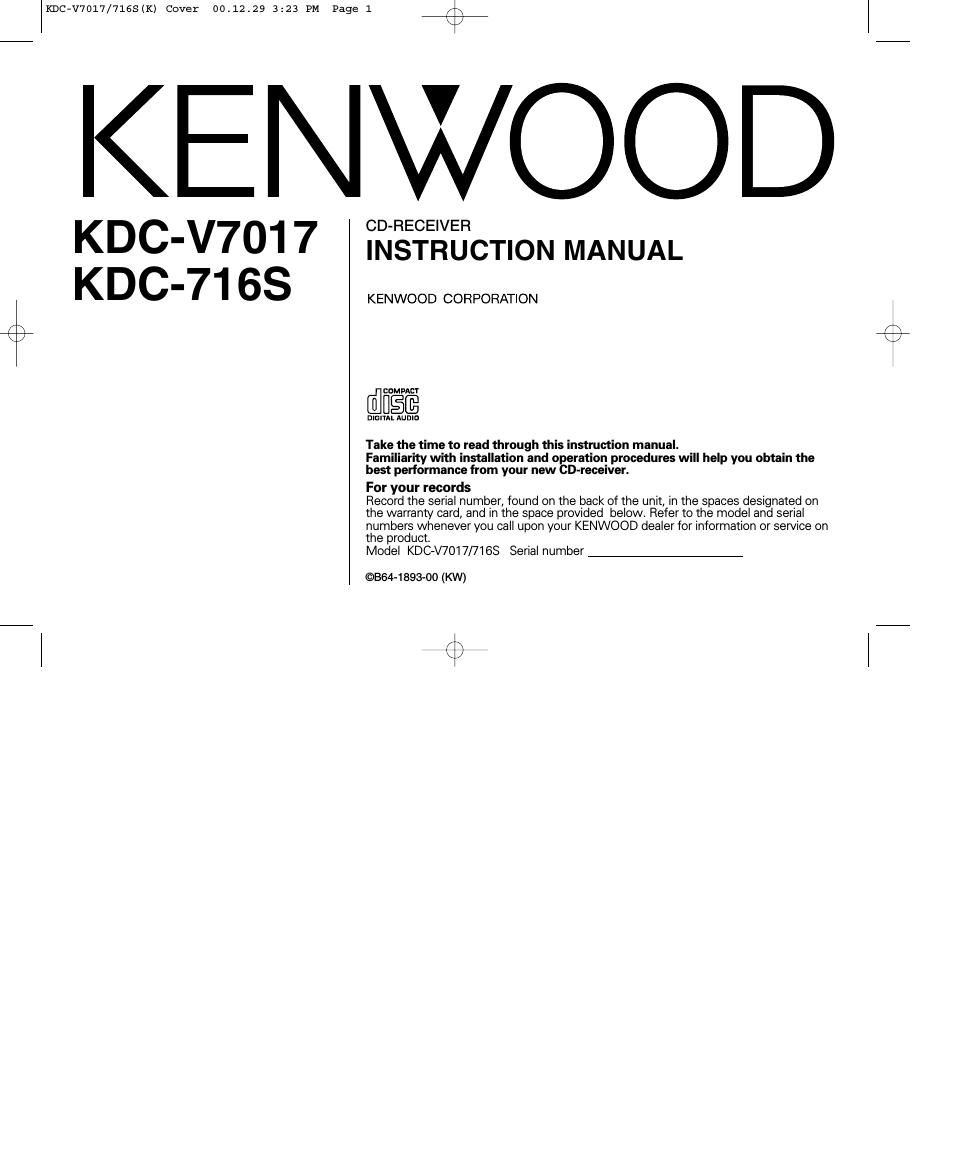

Kenwood KDC 716 S Owners Manual
This is the 46 pages manual for Kenwood KDC 716 S Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KDC 716 S Owners Manual (Ocr-read)
Page 1
- 2 - English Contents 2Warning ..............................................................3 Safety precautions ................................................4 Handling Compact discs .......................................6 General features Power ............................................................................................8 Switching Modes ..........................................................................8 Volume ..........................................................................................9 Attenuator .....................................................................................9 System Q ....................................................................................10 Audio Control Setting ..................................................................10 Loudness ....................................................................................11 Speaker Setting...........................................................................11 Clock display ...............................................................................11 Faceplate Angle Adjustment .......................................................11 Forced Closing ............................................................................12 Removing the Faceplate .............................................................12 Tuner featuresTuning .........................................................................................14 Station Preset Memory ...............................................................14 Auto Memory Entry ....................................................................14 Switching Display for Tuner ........................................................15 Station Name Preset (SNPS) ......................................................15 CD/External disc control featuresPlaying CDs .................................................................................16 Playing Other Disc mode ............................................................17 Switching Display for Discs ........................................................17 Fast Forwarding and Reversing Disc Play ..................................17 Track Search ...............................................................................18 Disc Search .................................................................................18 Track / Disc Repeat .....................................................................18 Track Scan...................................................................................18 Random Play ...............................................................................19 Magazine Random Play...............................................................19 Presetting Disc Names (DNPS) ..................................................20 Disc Name Preset Play (DNPP) .................................................20 Text / Title Scroll .........................................................................21 Menu settingsMenu System .............................................................................22 Security Code..............................................................................22 Touch Sensor Tone .....................................................................23 Manual Time Adjustment............................................................24 Selectable Illumination ................................................................24 Switching Graphic Display ..........................................................24 Variable Illumination Color Setting ..............................................24 Contrast Adjustment ...................................................................25 Dimmer .......................................................................................25 Time setting for removing the faceplate ....................................25 Clean Reception System Circuit (CRSC) ....................................25 Text Scroll ...................................................................................26 Basic Operations of remote ................................26 Installation Accessories .................................................................................29 Installation Procedure .................................................................29 Connecting Wires to Terminals ..................................................30 Locking the faceplate to the unit ................................................31 Installation (non-Japanese cars) ..................................................31 Removing the Unit ......................................................................32 Installation (Japanese-cars) .........................................................33 Troubleshooting Guide .......................................34 Specifications .....................................................38 KDC-V7017_U.S r5 00.12.26 1:01 PM Page 2
Page 2
- 3 - 2Warning Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. Location : Bottom Panel FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. 2CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. NOTE NOTE KENWOOD CORPORATION 2967-3, ISHIKAWA-CHO, HACHIOJI-SHI TOKYO, JAPAN KENWOOD CORP. CERTIFIES THIS EQUIPMENT CONFORMS TO DHHS REGULATIONS N0.21 CFR 1040. 10, CHAPTER 1, SUBCHAPTER J. KDC-V7017_U.S r5 00.12.26 1:01 PM Page 3
