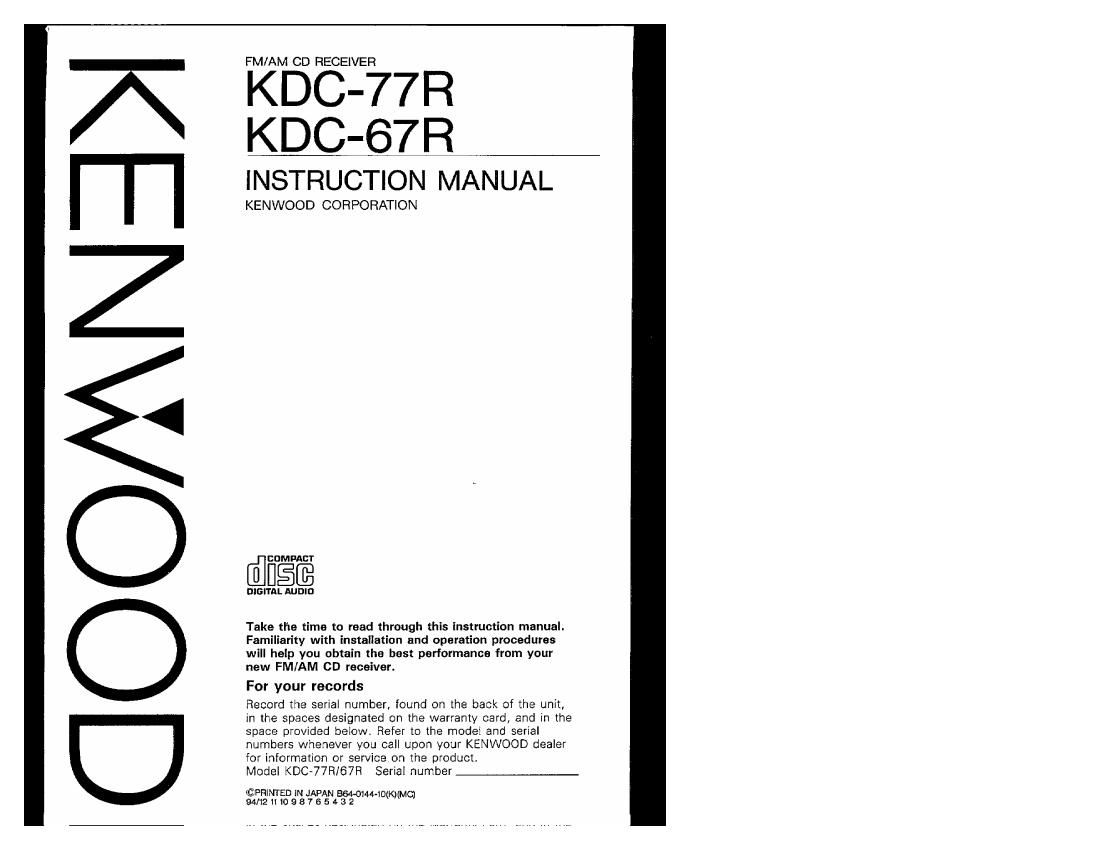

Page 1

GOO/ANEDI

FM/AM CD RECEIVER

KDC-77R
KDC-67R

INSTRUCTION MANUAL

KENWOOD CORPORATION

[filfigifi

DIGITAL AUDIO

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures
will help you obiain the best performance from your
new FM/AM CD receiver.

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and In the
space provlded below. Refer to the mode: and serlal
numbers whenever you call upon your KENWOOD dealer
for information or service on xhe product.

Model KDCe77H/67R Serlal number

@PHINTED IN JAPAN mum-lo
94/1211I098765432 WIMCI

Page 2

WARNING
-

CAUTION
The use of optical instruments with thls product will increase eye hazard.

INFORMATION

This equipment generates and uses radio frequency energy and if not installed and used
properly, that is, in strict accordance with the manufacturers instructions. may cause
interference to radio and television reception it has been type tested and found to
comply with the limits for a Class B computing device in accordance with the
specifications in Subpart J of Part i5 of FCC Rules, which are deSigned to provide
reasonable protection against such interference in a residential installation. However,
there is no "guarantee that interference wi'l not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

Reorient the receiving antenna

Relocate this equipment with respect to the receiver

Move this equipment away from the receiver

Plug this equipment into a different outlet so that equipment and receiver are on

different branch circuits.
If necessary, the user should consult the dealer or an exper enced radio/television
technician for additional suggestions. The user may find the following booklet prepared
by the Federal Communications Commission helpful:
How to identify and Resolve Radio-TV interference Problems.
This booklet is available from the US. Government Printing Office, Washington, DC
20402, Stock No. 004-000-00345-4,

0 As the laser beam used in this compact disc player is harmful to the eyes, do not
attempt to disassemble the cabinet. Refer servicing to qualified presonnel only.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications
to this equipment may cause harmful interference unless the modifications are expressly
approved in the instructionmanual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made,

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection aga'nst harmful interfe'ence in a residential installation. This

equment may cause harmful interference to radio communications, if it is not installed

and used in accordance with the instructions. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

0 Reorierit or relocate the receiving antenna.

0 Increase the separation between the eqUipment and receiver.

0 Connect the equipment into an outlet on a circuit defferent from that to which the
receiver is connected.

0 Consult the dealer or an experienced radio/TV technician for help.

2

Page 8

SPECIAL FEATURES

l Tuner section

0 Seek tuning (P. 10)
Automatlcally locates and receives
statlons.

0 Preset station tuning (P. 17)
Registers the frequency at your
favorite stations in memory to
allow onetouch tuning.

0 Auto memory (P. 18)
Automatically stores the frequency
of a station that provides the best
receptlon quality in memory.

Once a station is stored, it can be
accessed Through preset station
tuning.

I CD player section

0 Track scan play (P. 19)
Plays back short snatches of each
track on a CD startlng from the
beginning. This is a convenient
feature when searching for a track
you would llke to listen to.

0 Track repeat play (P. 20)
Repeats playback of a CD track.

0 Random play (P. 21)
Allows you to listen to the tracks
of a compact dlSC in random order.

I Useful features

l Theft prevention chassis
(P. 22/KDc-77R only)

When you leave the car, you can
easily take the unit with you. This
helps you to prevent theft.

0 Selectable illumination
(P. 23/KDC-77R only)

The color of the lllumination can
be switched between green and
orange.

0 Clock indication
(P. 24/KDC-67R only)

The time can be displayed on the
display window.

0 Channel space selection (P. 25)
Allows you to switch the channel
space between FM: 200 kHz/
AM: 10 kHz and FM: 50 kHz]
AM: 9 kHz.

8 lntroduction
